KMI23007-1AX

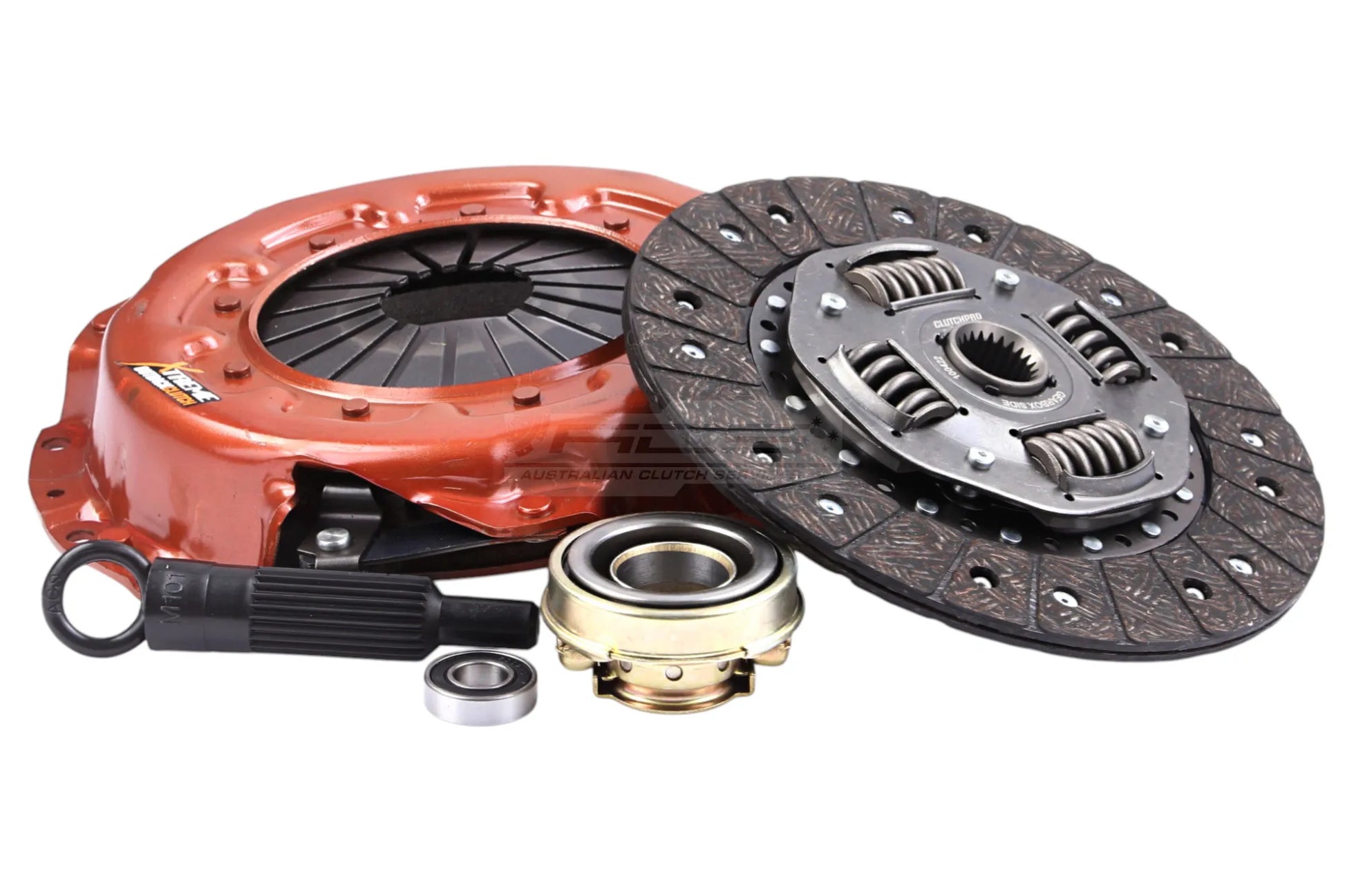

The stage 1 clutch kit uses an upgraded pressure plate with extra increased clamping pressure, combined with an organic friction disc. Stage 1 delivers substantial increases in performance and power holding capability whilst retaining near factory type driveability, and is designed primarily for high performance road going vehicles.

These kits feature a high quality cover with increased clamping force compared with standard, between 40-120% depending on the demands of the individual vehicle.

They use an organic friction disc to retain drive-ability similar to standard.

Clutch Disc Diameter (mm)	225
Clutch Disc Spline Count	23
Clutch Disc Spline Diameter (mm)	26.3
Torque (Nm)
Flywheel Step
Design	Single Plate
Stage
Tech Bulletins
Clamp Load
Recommended for	Street Performance & Towing - Stage 1
Ring Gear Tooth count
Additional infotmation

Compatibility
Mitsubishi	L200	2.4 (KA5T)	2005.11-2015.12	4G64 (16V) 2351 Petrol 94 kW 128 BHP (2005.11 - 2015.12)
Mitsubishi	L200	2.4 LPG (KA5T)	2009.09-2015.12	4G64 (16V) 2351 Petrol 94 kW 128 BHP (2009.09 - 2015.12)
Mitsubishi	L200	2.4 (KK4T)	2014.11-	4G64 (16V) 2351 Petrol 94 kW 128 BHP (2014.11 - )
Mitsubishi	L200	2.4 (K65T)	1996.10-2006.12	4G64 (16V) 2351 Petrol 97 kW 132 BHP (1996.10 - 2006.12)
Mitsubishi	L200	2.4 (KA5T)	2007.05-2015.12	4G64 (16V) 2351 Petrol 97 kW 132 BHP (2007.05 - 2015.12)
Mitsubishi	Pajero	Gen. I | 2.0 Turbo 4WD (L040G, L140G)	1984.10-1991.02	4G63-T (SOHC 8V) 1997 Petrol 107 kW 145 BHP (1984.10 - 1991.02)
Mitsubishi	Starion	2.0 Turbo ECi (A183A)	1985.12-1987.12	4G63-T (SOHC 8V) 1997 Petrol 110 kW 150 BHP (1985.12 - 1987.12)
Mitsubishi	Starion	2.0 Turbo ECi (A183A)	1982.06-1985.12	4G63-T (ECI) 1997 Petrol 125 kW 170 BHP (1982.06 - 1985.12)
Mitsubishi	Starion	2.0 Turbo ECi (A183A)	1985.05-1987.08	4G63-T/C 1997 Petrol 132 kW 180 BHP (1985.05 - 1987.08)
