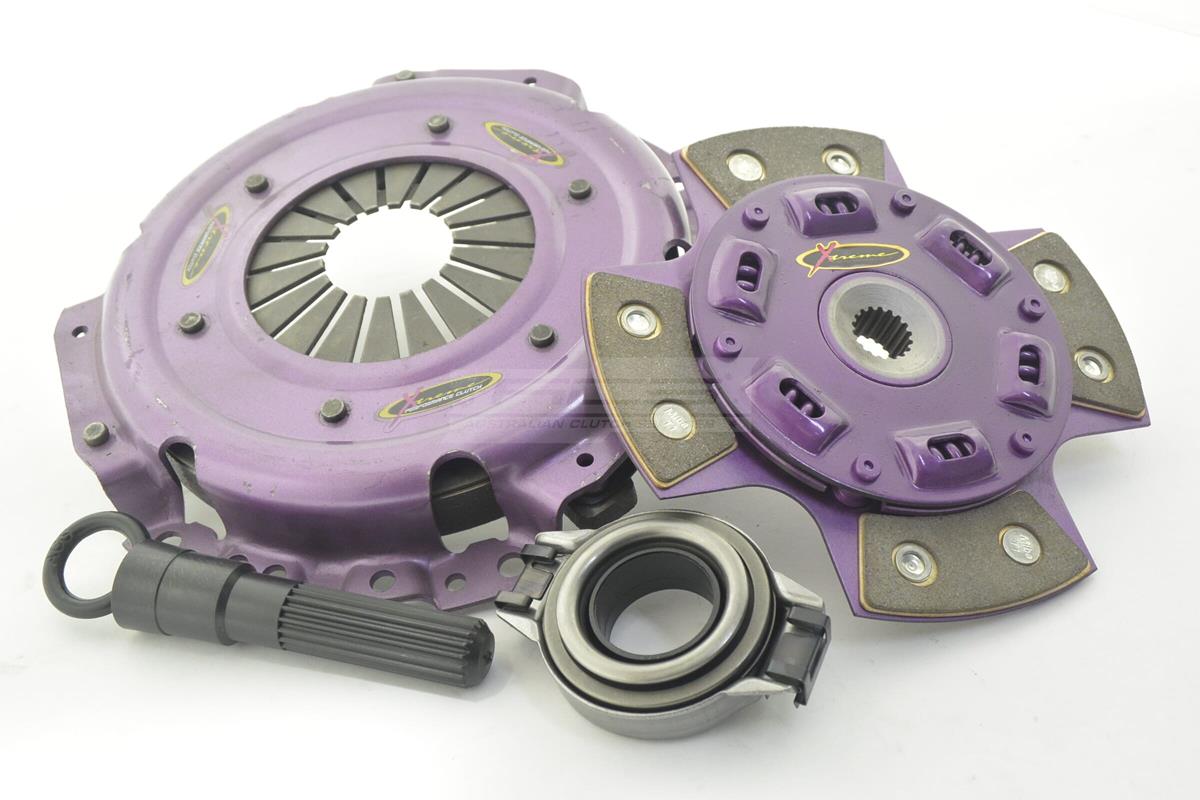

KNI19001-1B

Recommended for: Motorsport Applications

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

• Torque capacity 320Nm
• Clamp load 540kg 40% Increased over standard
• Sprung Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	190
Clutch Disc Spline Count	18
Clutch Disc Spline Diameter (mm)	20
Torque (Nm)	320
Flywheel Step	0
Design	Single Plate
Stage	Stage 2
Tech Bulletins
Clamp Load	540Kg (40% inc.)
Recommended for	Track - Stage 2
Ring Gear Tooth count
Additional infotmation

Compatibility
Nissan	Sunny	B12/N13 | 1.5	1986.06-1988.10	E15S 1487 Petrol 52 kW 71 BHP (1986.06 - 1988.10)	320	Track Use	Not included
Nissan	Sunny	B12/N13 | 1.5	1986.06-1988.10	E15S 1487 Petrol 52 kW 71 BHP (1986.06 - 1988.10)	320	Track Use	Not included
Nissan	Sunny	B12/N13 | 1.6	1986.06-1988.10	E16S 1597 Petrol 62 kW 84 BHP (1986.06 - 1988.10)	320	Track Use	Not included
Nissan	Sunny	B12/N13 | 1.6 12V	1986.06-1990.10	GA16i 1597 Petrol 66 kW 90 BHP (1986.06 - 1990.10)	320	Track Use	Not included
Nissan	Sunny	B12/N13 | 1.6 4x4	1986.06-1990.10	E16i 1597 Petrol 54 kW 73 BHP (1986.06 - 1990.10)	320	Track Use	Not included
Nissan	100NX	B13 | 1.6	1990.03-1994.10	GA16DS 1597 Petrol 66 kW 90 BHP (1990.03 - 1994.10)	320	Track Use	Not included
Nissan	100NX	B13 | 1.6 SR	1993.09-1994.10	GA16DE 1597 Petrol 75 kW 102 BHP (1993.09 - 1994.10)	320	Track Use	Not included
Nissan	Sunny	B13/N14 | 1.6 16V	1990.10-1995.05	GA16DE, GA16DS, GA16DEL 1597 Petrol 66 kW 90 BHP (1990.10 - 1995.05)	320	Track Use	Not included
Nissan	Sunny	B13/N14 | 1.6 16V	1992.10-1995.05	GA16DE 1597 Petrol 75 kW 102 BHP (1992.10 - 1995.05)	320	Track Use	Not included
Nissan	Sunny	B13/N14 | 1.6 16V 4x4	1992.10-1995.05	GA16DE 1597 Petrol 75 kW 102 BHP (1992.10 - 1995.05)	320	Track Use	Not included
Nissan	Sunny	B13/N14 | 1.6 16V 4x4	1990.10-1995.05	GA16DS 1597 Petrol 66 kW 90 BHP (1990.10 - 1995.05)	320	Track Use	Not included
Nissan	Lucino	B14 | 1.5	1997.11-2000.01	GA15DE 1497 Petrol 77 kW 105 BHP (1997.11 - 2000.01)	320	Track Use	Not included
Nissan	Almera	N15 | 1.4	1995.09-2000.07	GA14DE 1392 Petrol 64 kW 87 BHP (1995.09 - 2000.07)	320	Track Use	Not included
Nissan	Almera	N15 | 1.4	1995.09-2000.07	GA14DE 1392 Petrol 55 kW 75 BHP (1995.09 - 2000.07)	320	Track Use	Not included
Nissan	Almera	N15 | 1.4	1995.09-2000.03	GA14DE 1392 Petrol 55 kW 75 BHP (1995.09 - 2000.03)	320	Track Use	Not included
Nissan	Almera	N15 | 1.5	1995.07-2000.05	GA15DE 1497 Petrol 77 kW 105 BHP (1995.07 - 2000.05)	320	Track Use	Not included
Nissan	Almera	N15 | 1.6	1995.07-2000.03	GA16DE 1597 Petrol 75 kW 102 BHP (1995.07 - 2000.03)	320	Track Use	Not included
Nissan	Almera	N15 | 1.6	1995.09-2000.07	GA16DE 1597 Petrol 73 kW 99 BHP (1995.09 - 2000.07)	320	Track Use	Not included
Nissan	Almera	N15 | 1.6	1995.09-2000.07	GA16DE 1597 Petrol 66 kW 90 BHP (1995.09 - 2000.07)	320	Track Use	Not included
Nissan	Sunny	Y10 | 1.6 16V	1992.10-2000.03	GA16DE 1597 Petrol 66 kW 90 BHP (1992.10 - 2000.03)	320	Track Use	Not included
