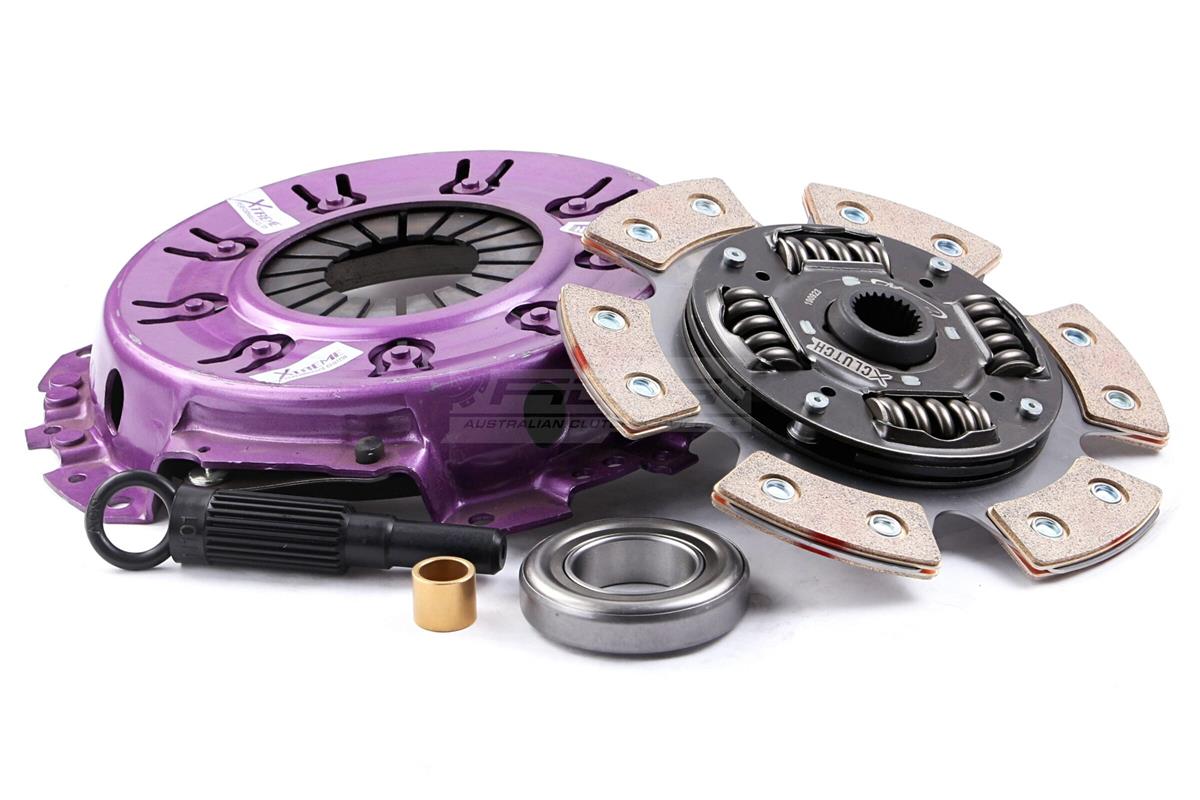

KNI23004-1B

Recommended for: Motorsport Applications

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

• Torque capacity 500Nm
• Clamp load 750kg 50% Increased over standard
• Sprung Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	225
Clutch Disc Spline Count	24
Clutch Disc Spline Diameter (mm)	25.5
Torque (Nm)	500
Flywheel Step	0
Design	Single Plate
Stage	Stage 2
Tech Bulletins
Clamp Load	750Kg (50% inc.)
Recommended for	Track - Stage 2
Ring Gear Tooth count
Additional infotmation

Compatibility
Nissan	Laurel	C32 | 2.0 GL	1984.11-1985.12	CA20S 1974 Petrol 75 kW 102 BHP (1984.11 - 1985.12)	500	Track Use	Not included
Nissan	Skyline	R30 | 1.8	1982.10-1985.08	CA18S 1809 Petrol 66 kW 90 BHP (1982.10 - 1985.08)	500	Track Use	Not included
Nissan	Silvia	S12 | 1.8	1984.06-1988.12	CA18ET 1809 Petrol 90 kW 122 BHP (1984.06 - 1988.12)	500	Track Use	Not included
Nissan	Silvia	S12 | 2.0 GP	1984.01-1988.12	CA20E 1974 Petrol 78 kW 106 BHP (1984.01 - 1988.12)	500	Track Use	Not included
Nissan	200SX	S13 | 1.8	1988.08-1994.03	CA18DE 1809 Petrol 99 kW 135 BHP (1988.08 - 1994.03)	500	Track Use	Not included
Nissan	180SX	S13 | 1.8	1988.09-1992.06	CA18DE 1809 Petrol 97 kW 132 BHP (1988.09 - 1992.06)	500	Track Use	Not included
Nissan	Silvia	S13 | 1.8	1988.08-1994.03	CA18D 1809 Petrol 99 kW 135 BHP (1988.08 - 1994.03)	500	Track Use	Not included
