ACS

KNI23683-2G

KNI23683-2G

Regular price €3.884,16 EUR
Regular price Sale price €3.884,16 EUR
Sale Sold out
Quantity

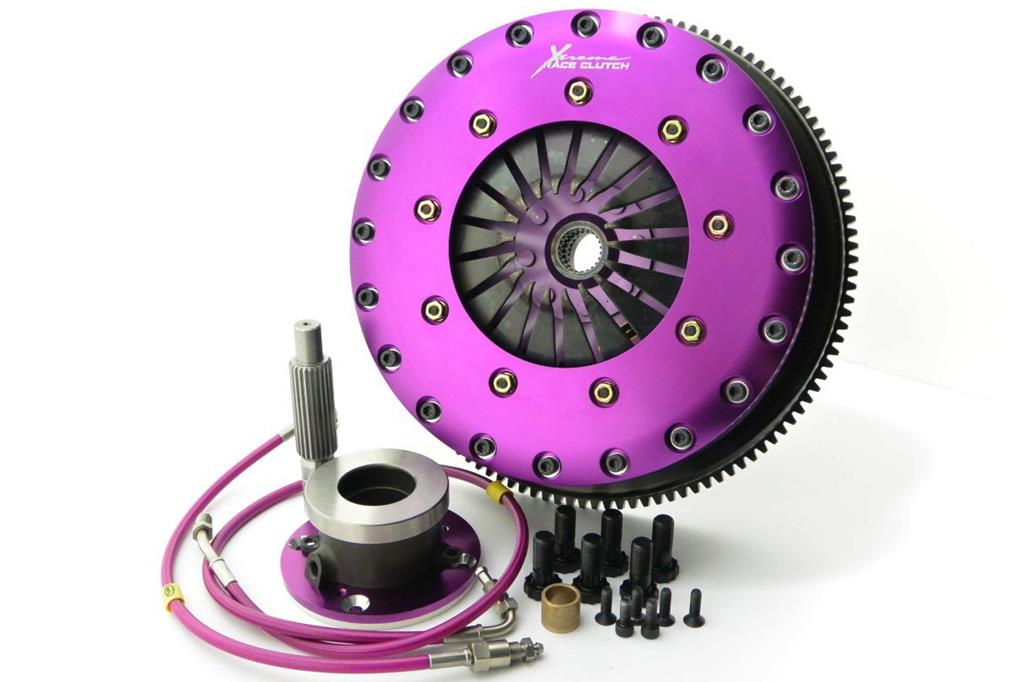

Xtreme Clutch 230mm twin plate kit
The Xtreme Clutch 230mm Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower street application.

The Xtreme 230mm Twin Plate Organic Clutch is the ultimate clutch solution for very high horsepower street vehicles. The 230mm range offers an exceptional torque capacity whilst retaining a lightweight design. Each 230mm kit includes a lightweight alloy pressure plate, choice of friction discs, performance flywheel and associated hardware including bearing, bolts and alignment tool. Xtreme Clutch 230mm upgrades have been designed to allow for extensive clutch operation options with internal hydraulic release bearings and pull-push conversions available for a variety of vehicles.

Product Features:

  • Torque capacity 1200Nm
  • Kit contains everything you need for a successful installation + accessories
  • Push type billet alloy cover Low pedal effort
  • 4140 Chromoly pressure & intermediate plates
  • Chromoly adapter ring
  • Low inertia
  • Serviceable components
  • SFI certified design
Clutch Disc Diameter (mm) 230
Clutch Disc Spline Count 24
Clutch Disc Spline Diameter (mm) 25.4
Torque (Nm) 1200
Flywheel Step +3.8mm
Design Twin Plate
Stage Multiplate - street use only
Tech Bulletins
Clamp Load 1300 KG
Recommended for High horsepower street driven vehicles
Ring Gear Tooth count
Additional infotmation
Compatibility
Nissan Skyline R34 | 2.6 Twin Turbo 4x4 1999.01-2008.02 RB26DETT 2569 Petrol 245 kW 333 BHP (1999.01 - 2008.02) Conversion to CSC Push Type 1200 High Power Street Upgrade Single Mass Flywheel
