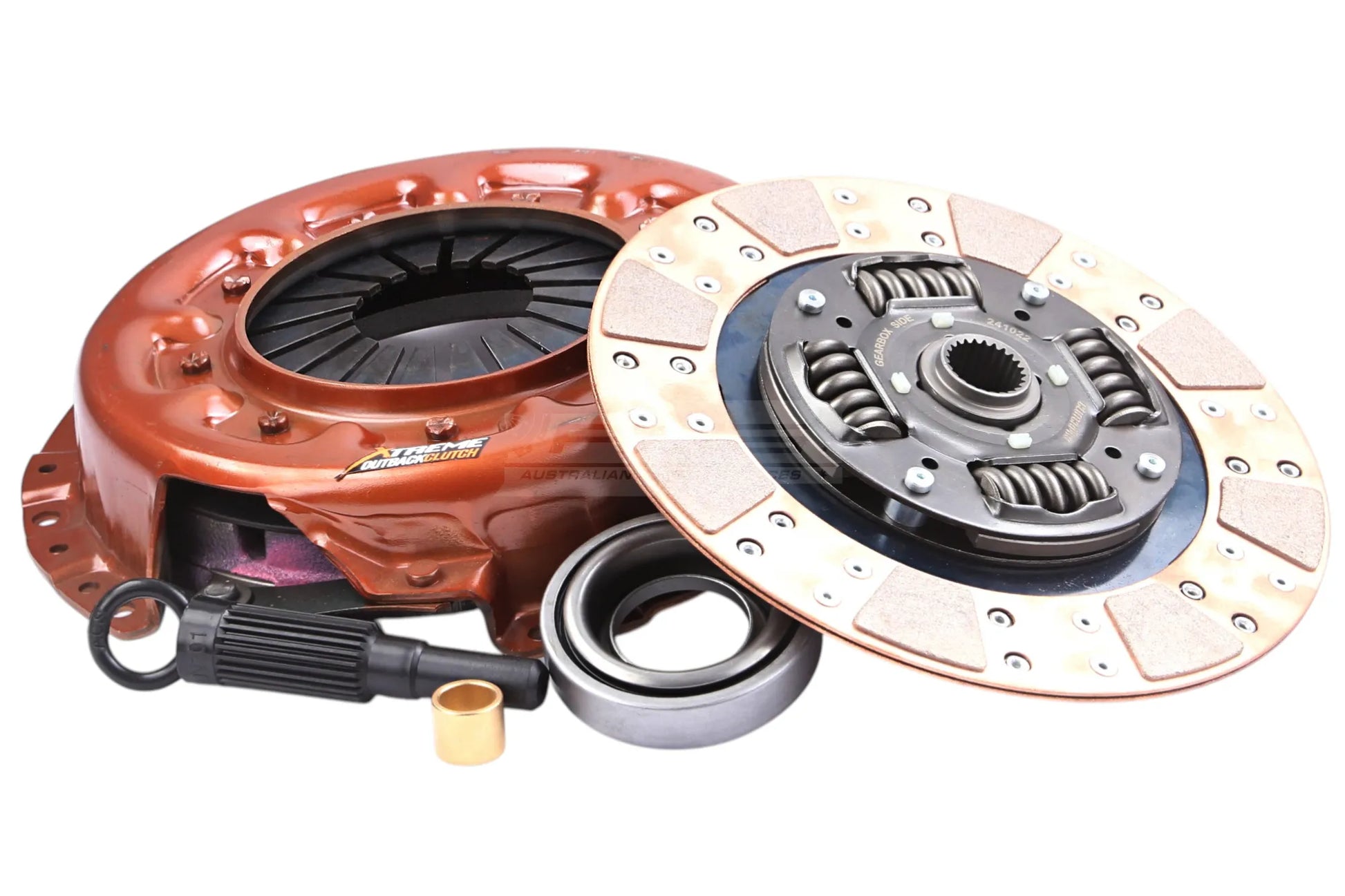

KNI24004-1C

Recommended for: Motorsport Applications

Xtreme Outback Ceramic upgrades have been designed to offer the ultimate in heat capacity for single plate upgrades and are designed specifically for motorsport applications such as endurance rally events and time trials. Available in Sprung Ceramic and Cushioned Ceramic, there are a wide variety of options to choose from depending on the vehicle use.

• Torque capacity 570Nm
• Clamp load 650Kg 30% Increased over standard
• Cushioned Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

Designed and Engineered to handle the toughest conditions on the planet, Xtreme Outback Clutch Kits are the ultimate 4x4 heavy duty upgrade for the street and offroad.

Each Xtreme Outback clutch kit is designed and developed to offer the ultimate balance between performance, durability and drivability. As used by motorsport teams and armoured car manufacturers across the globe, Xtreme Outback clutch kits can be trusted to get you there... and back again.

Cushioned ceramic friction discs are similar to the sprung ceramic kits in that they have a sprung hub to absorb shock loading, but also have a small amount of cushioning betwene the two friction surfaces on the disc giving them better pedal modulation. These kits are designed for low speed trial where pedal feel is important but where the high temperature capacity of a ceramic disc is also beneficial.

Xtreme Outback upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Torque (Nm)	570
Clamp Load	650KG (30% inc.)
Flywheel Step	Flat
Clutch Disc Diameter (mm)	240
Clutch Disc Spline Count	24
Clutch Disc Spline Diameter (mm)	25,4
Recommended for	Low Speed Trial - Stage 2
Design	Single Plate
Diameter [mm]	240
Stage	Stage 2
Tech Bulletins	TSB-165

Compatibility
Nissan	Patrol	G160 | 3.3 D 4WD	1980.06-1987.12	SD33 3246 Diesel 70 kW 95 BHP (1980.06 - 1987.12)
Nissan	Patrol	K160 | 3.3 D	1979.11-1988.08	SD33 3246 Diesel 70 kW 95 BHP (1979.11 - 1988.08)
Nissan	280ZX,ZXT	S130 | 2.8	1983.01-1984.02	L28ET 2753 Petrol 147 kW 200 BHP (1983.01 - 1984.02)
Nissan	Patrol	W160 | 3.3 D 4WD	1979.11-1988.08	SD33 3246 Diesel 70 kW 95 BHP (1979.11 - 1988.08)
Nissan	Patrol	Y60 | 2.8 TD	1995.10-1998.02	RD28T 2826 Diesel 82 kW 111 BHP (1995.10 - 1998.02)
Nissan	Patrol	Y60 | 2.8 TD	1988.09-1997.06	RD28T 2826 Diesel 85 kW 116 BHP (1988.09 - 1997.06)
Nissan	Patrol	Y60 | 2.8 TD 4WD	1994.01-1997.12	RD28T 2826 Diesel 85 kW 116 BHP (1994.01 - 1997.12)
Nissan	Patrol	Y61 | 2.8 TDiC	1997.06-2000.05	RD28Ti 2826 Diesel 95 kW 129 BHP (1997.06 - 2000.05)
Nissan	Patrol	Y61 | 2.8 TDiC	1997.10-2000.02	RD28Ti 2826 Diesel 96 kW 131 BHP (1997.10 - 2000.02)
