ACS
KNI24549-1A
KNI24549-1A
Regular price
€2.081,43 EUR
Regular price
Sale price
€2.081,43 EUR
Quantity
Couldn't load pickup availability

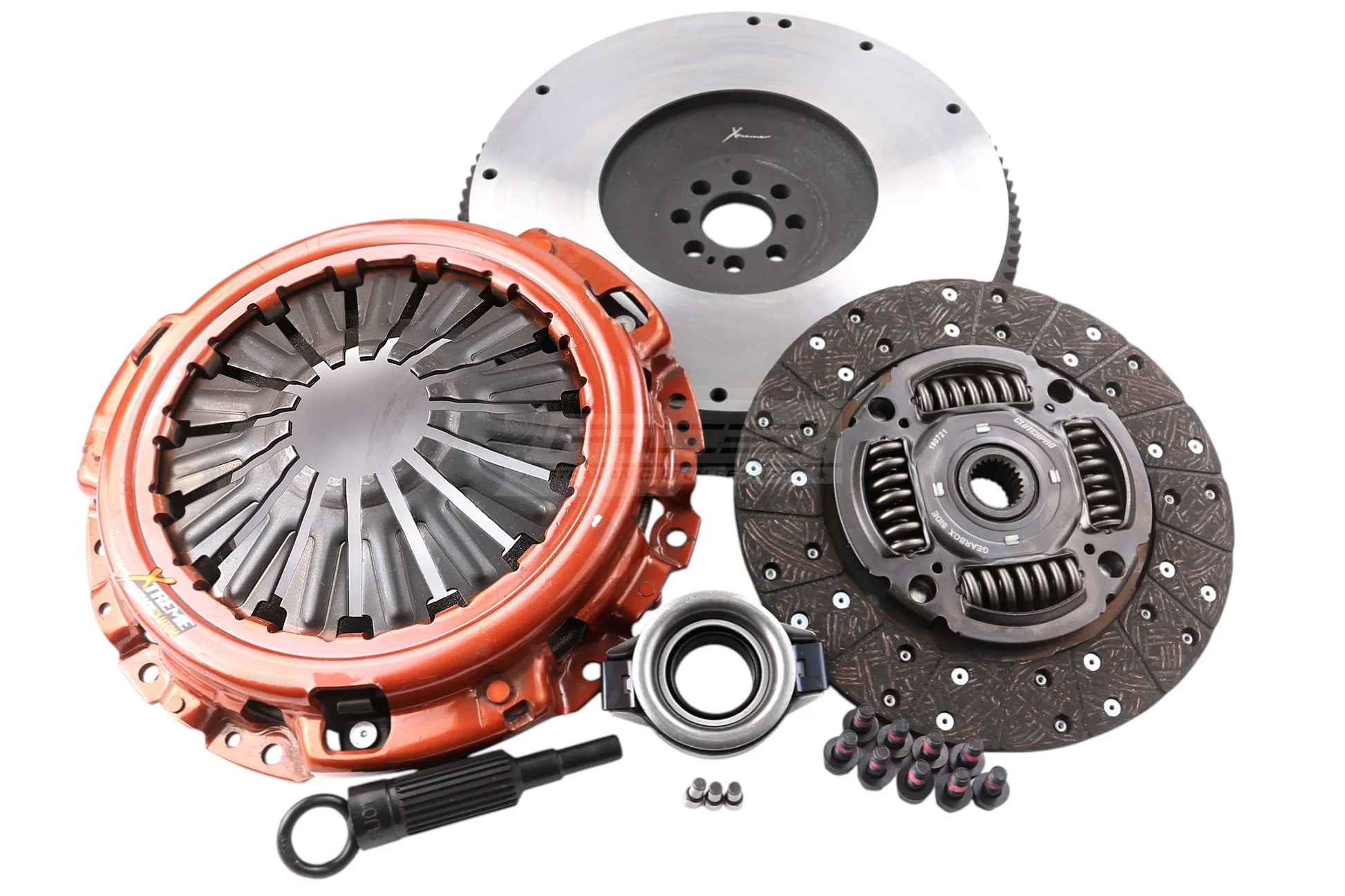

The Stage 1 clutch kit uses an upgraded pressure plate with increased clamping pressure, combined with an organic friction disc. Stage 1 delivers substantial increases in performance and power holding capability whilst retaining near factory type driveability, and is designed primarily for high performance road going vehicles.
These kits feature a high quality cover with increased clamping force compared with standard, between 20-40% depending on the demands of the individual vehicle.
They use an organic friction disc to retain drive-ability similar to standard.
| Clutch Disc Diameter (mm) | 240 |
| Clutch Disc Spline Count | 24 |
| Clutch Disc Spline Diameter (mm) | 25.5 |
| Torque (Nm) | 470 |
| Flywheel Step | Flat |
| Design | Single Plate |
| Stage | Stage 1 |
| Tech Bulletins | |
| Clamp Load | TBC |
| Recommended for | Street Performance & Towing - Stage 1 |
| Ring Gear Tooth count | |
| Additional infotmation |
| Compatibility | ||||
|---|---|---|---|---|
| Nissan | X-Trail | T30 | 2.2 dCi 4WD | 2001.06-2008.12 | YD22DDTi, YD22ETI 2184 Diesel 100 kW 136 BHP (2001.06 - 2008.12) |
| Nissan | X-Trail | T30 | 2.2 Di 4WD | 2001.07-2005.10 | YD22DDTi, YD22ETI 2184 Diesel 84 kW 114 BHP (2001.07 - 2005.10) |
