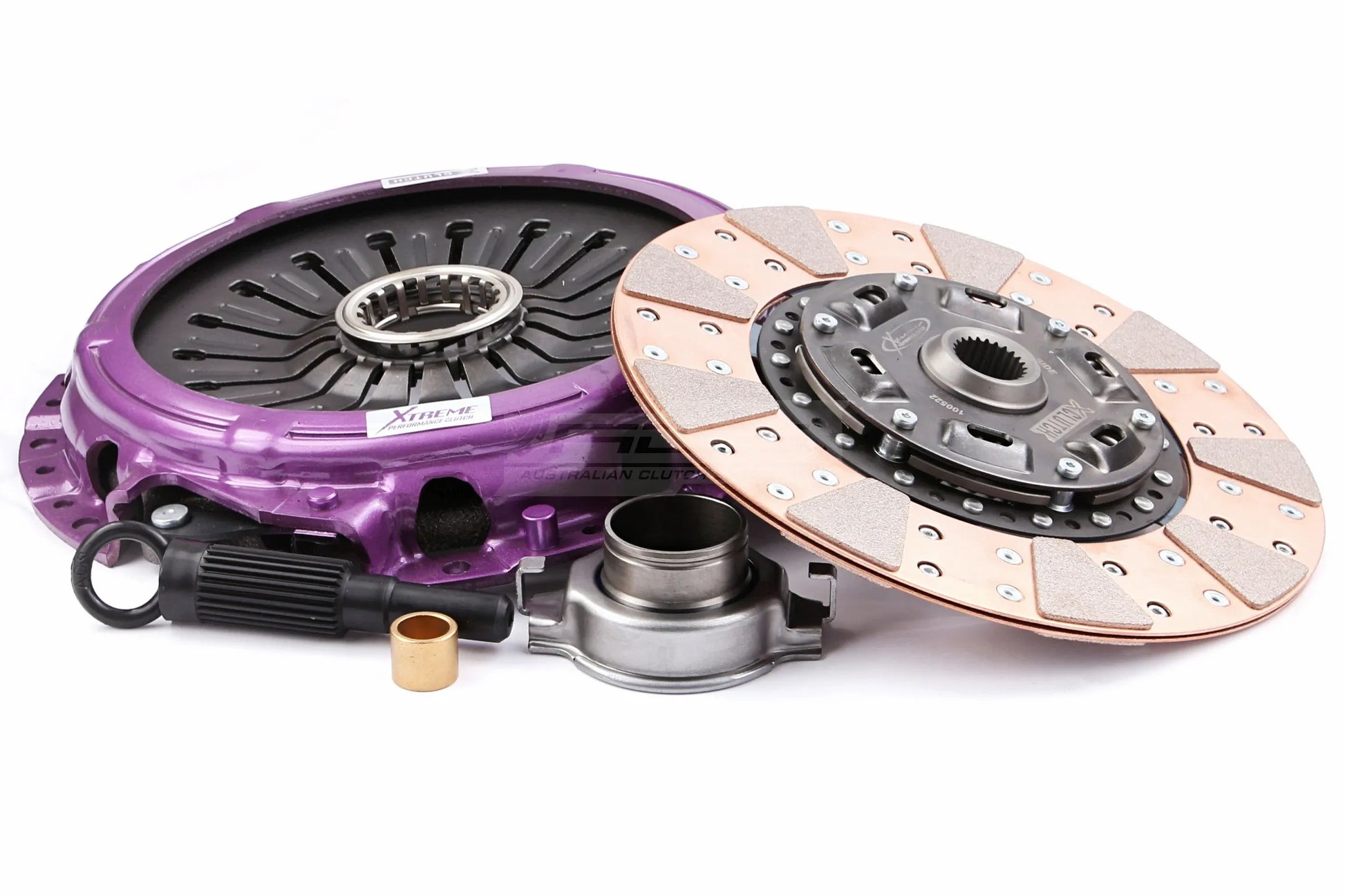

KNI25003-1C

Recommended for: Motorsport Applications

These kits are available with cushioned ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

• Torque capacity 920Nm
• Clamp load 1170Kg 40% Increased over standard
• Cushioned Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	250
Clutch Disc Spline Count	24
Clutch Disc Spline Diameter (mm)	25.5
Torque (Nm)	920
Flywheel Step	0
Design	Single Plate
Stage	Stage 2
Tech Bulletins
Clamp Load	1170Kg (40% inc.)
Recommended for	Track - Stage 2
Ring Gear Tooth count
Additional infotmation

Compatibility
Nissan	Skyline	R34 | 2.5 Turbo	1998.06-2006.01	RB25DET 2498 Petrol 187 kW 254 BHP (1998.06 - 2006.01)	920	Track Use	Not included
Nissan	Skyline	R34 | 2.5 Turbo	1998.05-2002.08	RB25DET 2498 Petrol 206 kW 280 BHP (1998.05 - 2002.08)	920	Track Use	Not included
Nissan	Skyline	R34 | 2.5 4x4	1998.06-2000.07	RB25DEH 2498 Petrol 147 kW 200 BHP (1998.06 - 2000.07)	920	Track Use	Not included
Nissan	Skyline	R32 | 2.6 Twin Turbo 4x4	1989.04-1993.06	RB26DETT 2569 Petrol 206 kW 280 BHP (1989.04 - 1993.06)	920	Track Use	Not included
Nissan	Skyline	R33 | 2.6 Twin Turbo 4x4	1994.07-1999.09	RB26DETT 2569 Petrol 206 kW 280 BHP (1994.07 - 1999.09)	920	Track Use	Not included
Nissan	Skyline	R34 | 2.5 Turbo	1998.05-2006.01	RB25DET 2498 Petrol 206 kW 280 BHP (1998.05 - 2006.01)	920	Track Use	Not included
Nissan	Stagea	WC34 | 2.5	1996.09-2001.10	RB25DE 2498 Petrol 140 kW 190 BHP (1996.09 - 2001.10)	920	Track Use	Not included
Nissan	Stagea	WC34 | 2.5 AWD	1996.09-2001.10	RB25DE 2498 Petrol 140 kW 190 BHP (1996.09 - 2001.10)	920	Track Use	Not included
Nissan	Stagea	WC34 | 2.5 Turbo AWD	1996.09-2001.10	RB25DET 2498 Petrol 173 kW 235 BHP (1996.09 - 2001.10)	920	Track Use	Not included
Nissan	Stagea	WC34 | 2.6 Twin Turbo	1996.09-2001.10	RB26DETT 2569 Petrol 206 kW 280 BHP (1996.09 - 2001.10)	920	Track Use	Not included
