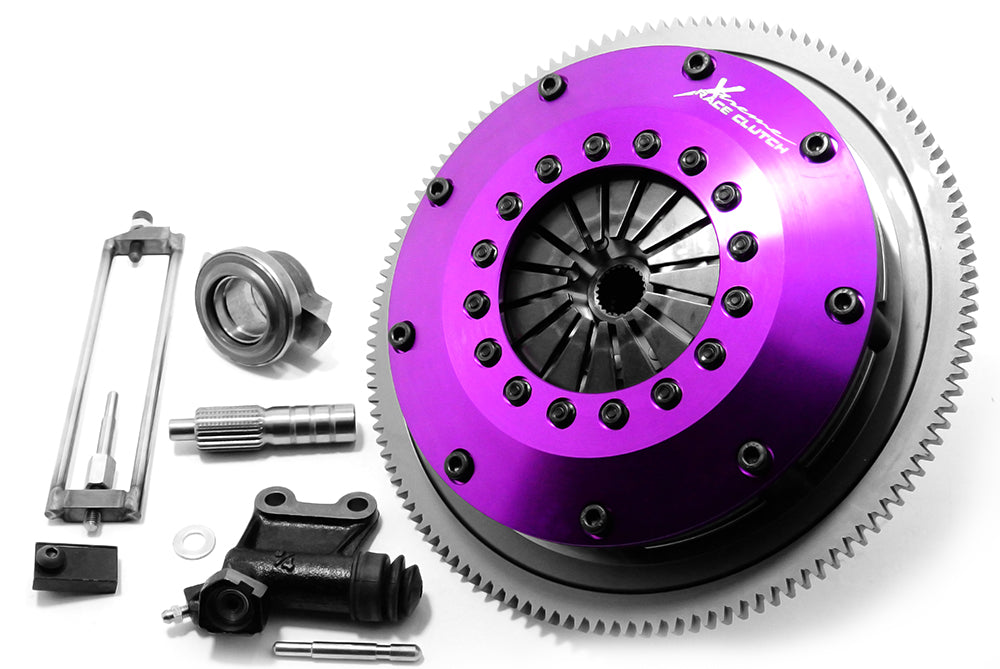

Xtreme Motorsport 200mm twin plate
The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC). Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- Rigid driven discs (individual hubs)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7kg |
| Disc Set Static Mass | 1.75kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
| Clutch Disc Diameter (mm) | 200 |
| Clutch Disc Spline Count | 24 |
| Clutch Disc Spline Diameter (mm) | 25.2 |
| Flywheel Step | +2.2mm |
| Torque (Nm) | 1200 |
| Clamp Load | 1100Kg |
| Stage | 5 |
| Usage | Motorsport |
| Design | 200mm Twin Plate Solid Ceramic – engineered for high-power track vehicles. Provides exceptional torque and heat resistance with direct, competition-style engagement. |
| Tech Bulletins | TSB-200 TSB-228 |
| Kit Includes | Flywheel, Two Discs, Intermediate Plate, Main Casting, Clutch Cover, Relase Bearing, Bolts, Alignment Tool, Adjustment Tool, Clutch Slave Cylinder |
| Flywheel | Single Mass Flywheel |
| Additional information | 6 Speed Gearbox - Pull To Push Conversion |
| Compatibility | ||||||||
|---|---|---|---|---|---|---|---|---|
| Subaru | Impreza | 2.0 AWD (GDA) | 2001.12-2002.11 | EJ205 1994 Petrol 150 kW 204 BHP (2001.12 - 2002.11) | 6 Speed-pull To Push Conversion | 1200 | Motorsport | Single Mass Flwyheel |
| Subaru | Impreza | 2.0 Turbo AWD (GGA) | 2000.12-2005.12 | EJ205 1994 Petrol 160 kW 218 BHP (2000.12 - 2005.12) | 6 Speed-pull To Push Conversion | 1200 | Motorsport | Single Mass Flwyheel |
| Subaru | Impreza | 2.0 Turbo GT AWD (GC8) | 1998.06-2000.12 | EJ205 1994 Petrol 160 kW 218 BHP (1998.06 - 2000.12) | 6 Speed-pull To Push Conversion | 1200 | Motorsport | Single Mass Flwyheel |
| Subaru | Impreza | 2.0 Turbo GT AWD (GF8) | 1998.06-2000.12 | EJ205 1994 Petrol 160 kW 218 BHP (1998.06 - 2000.12) | 6 Speed-pull To Push Conversion | 1200 | Motorsport | Single Mass Flwyheel |
| Subaru | Impreza | 2.0 WRX Turbo AWD (GDA) | 2000.12-2005.12 | EJ205 1994 Petrol 160 kW 218 BHP (2000.12 - 2005.12) | 6 Speed-pull To Push Conversion | 1200 | Motorsport | Single Mass Flwyheel |
| Subaru | Impreza | 2.0 WRX Turbo AWD (GDA) | 2002.12-2005.09 | EJ205 1994 Petrol 168 kW 228 BHP (2002.12 - 2005.09) | 6 Speed-pull To Push Conversion | 1200 | Motorsport | Single Mass Flwyheel |
| Subaru | Impreza | 2.0 WRX AWD (GGA) | 2001.09-2005.12 | EJ205 1994 Petrol 169 kW 230 BHP (2001.09 - 2005.12) | 6 Speed-pull To Push Conversion | 1200 | Motorsport | Single Mass Flwyheel |
| Subaru | Impreza | 2.0 WRX STi AWD (GDB) | 2001.11-2005.07 | EJ207 1994 Petrol 195 kW 265 BHP (2001.11 - 2005.07) | 6 Speed-pull To Push Conversion | 1200 | Motorsport | Single Mass Flwyheel |
| Subaru | WRX | 2.0 AWD (GK6, GK8) | 2013.09- | FA20F, FA20E 1998 Petrol 197 kW 268 BHP (2013.09 - ) | 6 Speed-pull To Push Conversion | 1200 | Motorsport | Single Mass Flwyheel |
| Subaru | Impreza | 2.0 WRX STi AWD (GC8) | 1996.09-2000.09 | EJ207 1994 Petrol 206 kW 280 BHP (1996.09 - 2000.09) | 6 Speed-pull To Push Conversion | 1200 | Motorsport | Single Mass Flwyheel |
| Subaru | Impreza | 2.0 WRX STi AWD (GDB) | 2005.10-2007.03 | EJ207 1994 Petrol 206 kW 280 BHP (2005.10 - 2007.03) | 6 Speed-pull To Push Conversion | 1200 | Motorsport | Single Mass Flwyheel |
| Subaru | Impreza | 2.5 WRX STi AWD (GDF) | 2005.09-2007.12 | EJ257 2457 Petrol 206 kW 280 BHP (2005.09 - 2007.12) | 6 Speed-pull To Push Conversion | 1200 | Motorsport | Single Mass Flwyheel |
| Subaru | Impreza | 2.5 WRX STi AWD | 2005.10-2007.03 | EJ257 2457 Petrol 221 kW 300 BHP (2005.10 - 2007.03) | 6 Speed-pull To Push Conversion | 1200 | Motorsport | Single Mass Flwyheel |
| Subaru | Impreza | 2.5 WRX STi AWD (GDF) | 2005.10-2007.03 | EJ257 2457 Petrol 221 kW 300 BHP (2005.10 - 2007.03) | 6 Speed-pull To Push Conversion | 1200 | Motorsport | Single Mass Flwyheel |
| Subaru | Impreza | 2.5 WRX STI AWD (GRF) | 2008.01-2013.08 | EJ257 2457 Petrol 221 kW 301 BHP (2008.01 - 2013.08) | 6 Speed-pull To Push Conversion | 1200 | Motorsport | Single Mass Flwyheel |
| Subaru | Impreza | 2.5 WRX STI AWD (GVF) | 2011.01- | EJ255 2457 Petrol 221 kW 301 BHP (2011.01 - ) | 6 Speed-pull To Push Conversion | 1200 | Motorsport | Single Mass Flwyheel |
| Subaru | WRX | STi 2.5 AWD | 2014.06- | EJ257 2457 Petrol 221 kW 301 BHP (2014.06 - ) | 6 Speed-pull To Push Conversion | 1200 | Motorsport | Single Mass Flwyheel |
| Subaru | Impreza | 2.0 WRX STi AWD (GRB) | 2007.12-2010.12 | EJ20 (Turbo) 1994 Petrol 227 kW 309 BHP (2007.12 - 2010.12) | 6 Speed-pull To Push Conversion | 1200 | Motorsport | Single Mass Flwyheel |
| Subaru | Impreza | 2.0 WRX STi AWD | 2004.02-2005.07 | EJ207 1994 Petrol 235 kW 320 BHP (2004.02 - 2005.07) | 6 Speed-pull To Push Conversion | 1200 | Motorsport | Single Mass Flwyheel |
| Subaru | Impreza | 2.5 WRX STI 330S AWD | 2009.05-2010.12 | EJ257 2457 Petrol 243 kW 330 BHP (2009.05 - 2010.12) | 6 Speed-pull To Push Conversion | 1200 | Motorsport | Single Mass Flwyheel |
