ACS
KSU23006-1BX
KSU23006-1BX
Regular price
€1.157,88 EUR
Regular price
Sale price
€1.157,88 EUR
Quantity
Couldn't load pickup availability

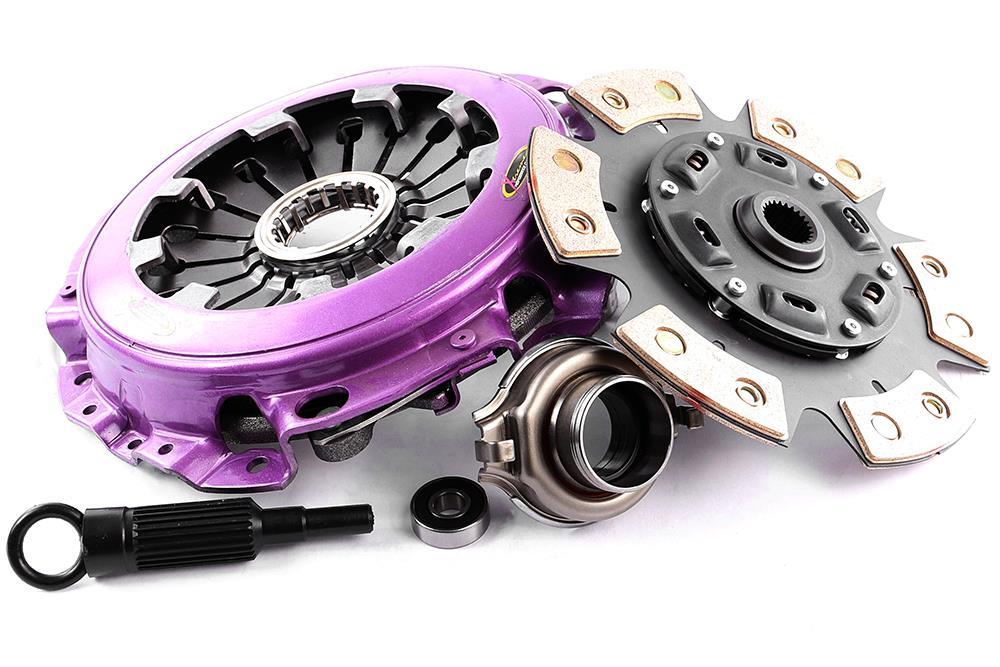

Xtreme Performance - extra sprung ceramic kit /-1BX
Recommended for: Motorsport ApplicationsThese kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.
Specifications:
- Torque capacity 980Nm
- Clamp load 1250kg 50% Increased over standard
- Sprung Ceramic Friction Disc
- Extra Heavy Duty Pressure Plate
- Kit contains everything you need for a successful installation + accessories
Xtreme Performance
At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.What's in the Box?
Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.
| Clutch Disc Diameter (mm) | 230 |
| Clutch Disc Spline Count | 24 |
| Clutch Disc Spline Diameter (mm) | 25.2 |
| Flywheel Step | Flat |
| Torque (Nm) | 980 |
| Clamp Force | 1250Kg |
| Clamp Force Increase | 50% |
| Stage | Stage 2X |
| Usage | Track Use |
| Design | Single Plate Sprung Ceramic Disc – designed for high-performance or track-oriented vehicles. Provides increased heat resistance and torque capacity while maintaining some drivability thanks to the sprung hub design. |
| Tech Bulletins | TSB-161 TSB-PULL01 TSB-SU01 |
| Kit Includes | Pressure Plate, Clutch Disc, Release Bearing, Spigot Bearing, Alignment Tool |
| Flywheel | Not included |
| Additional information | Suits 5 Speed Gearbox |
| Compatibility | |||||||
|---|---|---|---|---|---|---|---|
| Subaru | Forester | SF | 2.0 S Turbo AWD (SF5) | 1998.06-2001.04 | EJ205 1994 Petrol 125 kW 170 BHP (1998.06 - 2001.04) | 980 | Track Use | Not included |
| Subaru | Forester | SF | 2.0 S Turbo AWD (SF5) | 2001.04-2002.09 | EJ205 1994 Petrol 130 kW 177 BHP (2001.04 - 2002.09) | 980 | Track Use | Not included |
| Subaru | Forester | SG | 2.0 S Turbo AWD (SG5) | 2002.02-2005.05 | EJ205 1994 Petrol 130 kW 177 BHP (2002.02 - 2005.05) | 980 | Track Use | Not included |
| Subaru | Legacy | Gen. I | 2000 Turbo Super 4WD (BF5) | 1992.05-1994.07 | EJ20-GN 1994 Petrol 147 kW 200 BHP (1992.05 - 1994.07) | 980 | Track Use | Not included |
| Subaru | Legacy | Gen. I | 2000 Turbo 4WD (BC5) | 1992.05-1994.07 | EJ20-GN 1994 Petrol 147 kW 200 BHP (1992.05 - 1994.07) | 980 | Track Use | Not included |
| Subaru | Impreza | 2.0 AWD (GDA) | 2001.12-2002.11 | EJ205 1994 Petrol 150 kW 204 BHP (2001.12 - 2002.11) | 980 | Track Use | Not included |
| Subaru | Forester | SG | 2.5 AWD (SG9) | 2003.12-2005.05 | EJ25 2457 Petrol 155 kW 211 BHP (2003.12 - 2005.05) | 980 | Track Use | Not included |
| Subaru | Impreza | 2.0 i Turbo AWD (GF8) | 1994.03-2000.12 | EJ20 (Turbo) 1994 Petrol 155 kW 211 BHP (1994.03 - 2000.12) | 980 | Track Use | Not included |
| Subaru | Impreza | 2.0 Turbo AWD (GC8) | 1996.12-2000.12 | EJ20G 1994 Petrol 155 kW 211 BHP (1996.12 - 2000.12) | 980 | Track Use | Not included |
| Subaru | Impreza | 2.0 Turbo GT AWD (GC8) | 1994.03-2000.12 | EJ20 (Turbo) 1994 Petrol 155 kW 211 BHP (1994.03 - 2000.12) | 980 | Track Use | Not included |
| Subaru | Impreza | 2.0 Turbo AWD (GGA) | 2000.12-2005.12 | EJ205 1994 Petrol 160 kW 218 BHP (2000.12 - 2005.12) | 980 | Track Use | Not included |
| Subaru | Impreza | 2.0 Turbo GT AWD (GC8) | 1998.06-2000.12 | EJ205 1994 Petrol 160 kW 218 BHP (1998.06 - 2000.12) | 980 | Track Use | Not included |
| Subaru | Impreza | 2.0 Turbo GT AWD (GF8) | 1998.06-2000.12 | EJ205 1994 Petrol 160 kW 218 BHP (1998.06 - 2000.12) | 980 | Track Use | Not included |
| Subaru | Impreza | 2.0 WRX Turbo AWD (GDA) | 2000.12-2005.12 | EJ205 1994 Petrol 160 kW 218 BHP (2000.12 - 2005.12) | 980 | Track Use | Not included |
| Subaru | Impreza | 2.0 WRX Turbo AWD (GGA) | 2002.12-2006.09 | EJ205 1994 Petrol 165 kW 225 BHP (2002.12 - 2006.09) | 980 | Track Use | Not included |
| Subaru | Impreza | 2.0 WRX Turbo AWD (GDA) | 2002.12-2007.03 | EJ205 1994 Petrol 165 kW 225 BHP (2002.12 - 2007.03) | 980 | Track Use | Not included |
| Subaru | Impreza | 2.0 WRX Turbo AWD (GDA) | 2002.12-2005.09 | EJ205 1994 Petrol 168 kW 228 BHP (2002.12 - 2005.09) | 980 | Track Use | Not included |
| Subaru | Impreza | 2.0 WRX AWD (GGA) | 2001.09-2005.12 | EJ205 1994 Petrol 169 kW 230 BHP (2001.09 - 2005.12) | 980 | Track Use | Not included |
| Subaru | Impreza | 2.0 WRX AWD (GGA) | 2005.10-2007.03 | EJ205 1994 Petrol 184 kW 250 BHP (2005.10 - 2007.03) | 980 | Track Use | Not included |
| Subaru | Forester | SG | 2.5 Prodrive Performance Pack AWD | 2005.05-2005.09 | EJ255 2457 Petrol 188 kW 256 BHP (2005.05 - 2005.09) | 980 | Track Use | Not included |
| Subaru | Legacy | Gen. III | 2.0 AWD (BE5) | 2002.02-2003.06 | EJ206 1994 Petrol 190 kW 258 BHP (2002.02 - 2003.06) | 980 | Track Use | Not included |
| Subaru | Impreza | 2.0 WRX STi AWD (GDB) | 2001.11-2005.07 | EJ207 1994 Petrol 195 kW 265 BHP (2001.11 - 2005.07) | 980 | Track Use | Not included |
| Subaru | Impreza | 2.0 WRX STi AWD (GC8) | 1998.09-2000.09 | EJ207 1994 Petrol 206 kW 280 BHP (1998.09 - 2000.09) | 980 | Track Use | Not included |
| Subaru | Legacy | Gen. III | 2.0 AWD (BE5) | 2002.06-2003.08 | EJ208 1994 Petrol 206 kW 280 BHP (2002.06 - 2003.08) | 980 | Track Use | Not included |
| Subaru | Impreza | 2.0 WRX STi AWD | 2004.02-2005.07 | EJ207 1994 Petrol 235 kW 320 BHP (2004.02 - 2005.07) | 980 | Track Use | Not included |
