ACS

KSU24001-1C

KSU24001-1C

€1.101,96 EUR
€1.101,96 EUR
Sale Sold out

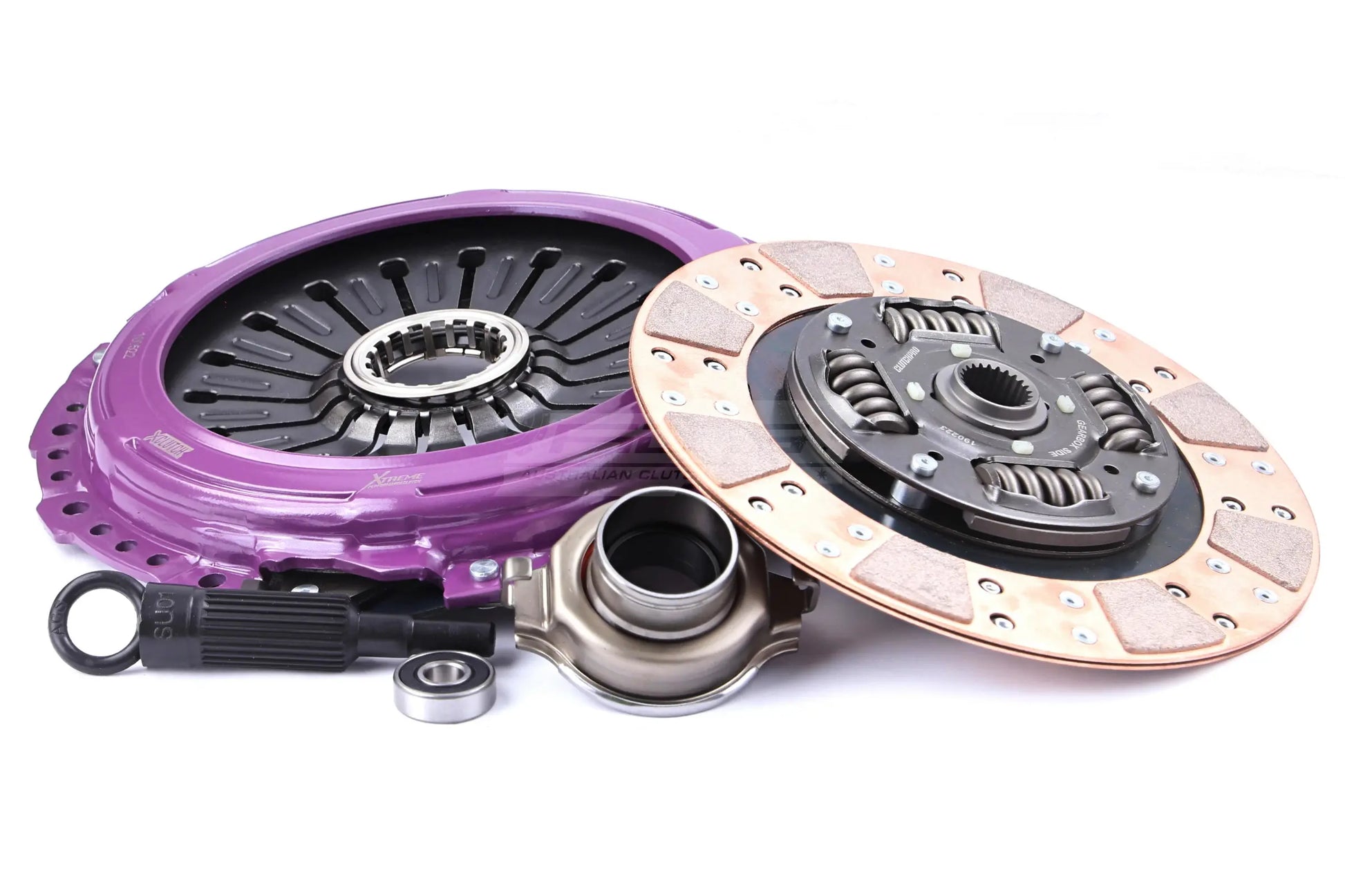

Xtreme Performance - Cushioned Ceramic kit /-1C
Recommended for: Motorsport Applications

These kits are available with cushioned ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

Specifications:
  • Torque capacity 870Nm
  • Clamp load 1250Kg 25% Increased over standard
  • Cushioned Ceramic Friction Disc
  • Heavy Duty Pressure Plate
  • Kit contains everything you need for a successful installation + accessories

The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.

Xtreme Performance
At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.
What's in the Box?
Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.
Clutch Disc Diameter (mm) 240
Clutch Disc Spline Count 24
Clutch Disc Spline Diameter (mm) 25.2
Flywheel Step -15.0mm/.590""""
Torque (Nm) 865
Clamp Force 1250Kg
Clamp Force Increase 25%
Stage Stage 2
Usage Track Use
Design Single Plate Cushioned Ceramic Disc – designed to deliver increased torque and heat capacity while maintaining smoother engagement than a standard ceramic disc, thanks to its cushioned friction surface.
Tech Bulletins TSB-161  TSB-PULL01  TSB-SU01
Kit Includes Pressure Plate, Clutch Disc, Release Bearing, Spigot Bearing, Alignment Tool
Flywheel Not included
Additional information Suits 6 Speed Gearbox
Compatibility
Subaru Impreza 2.0 AWD (GDA) 2001.12-2002.11 EJ205 1994 Petrol 150 kW 204 BHP (2001.12 - 2002.11) Suits 6 Speed Gearbox 870 Track Use Not included
Subaru Impreza 2.0 Turbo AWD (GGA) 2000.12-2005.12 EJ205 1994 Petrol 160 kW 218 BHP (2000.12 - 2005.12) Suits 6 Speed Gearbox 870 Track Use Not included
Subaru Impreza 2.0 Turbo GT AWD (GC8) 1998.06-2000.12 EJ205 1994 Petrol 160 kW 218 BHP (1998.06 - 2000.12) Suits 6 Speed Gearbox 870 Track Use Not included
Subaru Impreza 2.0 Turbo GT AWD (GF8) 1998.06-2000.12 EJ205 1994 Petrol 160 kW 218 BHP (1998.06 - 2000.12) Suits 6 Speed Gearbox 870 Track Use Not included
Subaru Impreza 2.0 WRX Turbo AWD (GDA) 2000.12-2005.12 EJ205 1994 Petrol 160 kW 218 BHP (2000.12 - 2005.12) Suits 6 Speed Gearbox 870 Track Use Not included
Subaru Impreza 2.0 WRX Turbo AWD (GGA) 2002.12-2006.09 EJ205 1994 Petrol 165 kW 225 BHP (2002.12 - 2006.09) Suits 6 Speed Gearbox 870 Track Use Not included
Subaru Impreza 2.0 WRX Turbo AWD (GDA) 2002.12-2007.03 EJ205 1994 Petrol 165 kW 225 BHP (2002.12 - 2007.03) Suits 6 Speed Gearbox 870 Track Use Not included
Subaru Impreza 2.0 WRX Turbo AWD (GDA) 2002.12-2005.09 EJ205 1994 Petrol 168 kW 228 BHP (2002.12 - 2005.09) Suits 6 Speed Gearbox 870 Track Use Not included
Subaru Impreza 2.0 WRX AWD (GGA) 2001.09-2005.12 EJ205 1994 Petrol 169 kW 230 BHP (2001.09 - 2005.12) Suits 6 Speed Gearbox 870 Track Use Not included
Subaru Impreza 2.0 WRX AWD (GGA) 2005.10-2007.03 EJ205 1994 Petrol 184 kW 250 BHP (2005.10 - 2007.03) Suits 6 Speed Gearbox 870 Track Use Not included
Subaru Impreza 2.0 WRX STi AWD (GDB) 2001.11-2005.07 EJ207 1994 Petrol 195 kW 265 BHP (2001.11 - 2005.07) Suits 6 Speed Gearbox 870 Track Use Not included
Subaru Impreza 2.0 WRX STi AWD (GGB) 2000.10-2002.10 EJ207 1994 Petrol 206 kW 280 BHP (2000.10 - 2002.10) Suits 6 Speed Gearbox 870 Track Use Not included
Subaru Impreza 2.0 WRX STi AWD (GC8) 1996.09-2000.09 EJ207 1994 Petrol 206 kW 280 BHP (1996.09 - 2000.09) Suits 6 Speed Gearbox 870 Track Use Not included
Subaru Impreza 2.0 WRX STi AWD (GDB) 2005.10-2007.03 EJ207 1994 Petrol 206 kW 280 BHP (2005.10 - 2007.03) 870 Track Use Not included
Subaru Impreza 2.0 WRX STi AWD (GRB) 2007.12-2010.12 EJ20 (Turbo) 1994 Petrol 227 kW 309 BHP (2007.12 - 2010.12) Suits 6 Speed Gearbox 870 Track Use Not included
Subaru Impreza 2.0 WRX STi AWD 2004.02-2005.07 EJ207 1994 Petrol 235 kW 320 BHP (2004.02 - 2005.07) Suits 6 Speed Gearbox 870 Track Use Not included
Subaru Impreza 2.0 WRX STi AWD 2005.09-2007.12 EJ257 2457 Petrol 195 kW 265 BHP (2005.09 - 2007.12) 870 Track Use Not included
Subaru Impreza 2.5 WRX STi AWD (GDF) 2005.09-2007.12 EJ257 2457 Petrol 206 kW 280 BHP (2005.09 - 2007.12) 870 Track Use Not included
Subaru Impreza 2.5 WRX STi AWD 2005.10-2007.03 EJ257 2457 Petrol 221 kW 300 BHP (2005.10 - 2007.03) 870 Track Use Not included
Subaru Impreza 2.5 WRX STi AWD (GDF) 2005.10-2007.03 EJ257 2457 Petrol 221 kW 300 BHP (2005.10 - 2007.03) 870 Track Use Not included
Subaru Impreza 2.5 WRX STI AWD (GRF) 2008.01-2013.08 EJ257 2457 Petrol 221 kW 301 BHP (2008.01 - 2013.08) 870 Track Use Not included
Subaru Impreza 2.5 WRX STI AWD (GVF) 2011.01- EJ255 2457 Petrol 221 kW 301 BHP (2011.01 - ) 870 Track Use Not included
Subaru WRX STi 2.5 AWD 2014.06- EJ257 2457 Petrol 221 kW 301 BHP (2014.06 - ) 870 Track Use Not included
Subaru Impreza 2.5 WRX STI AWD (GRF) 2008.01-2013.08 EJ257 2457 Petrol 227 kW 309 BHP (2008.01 - 2013.08) 870 Track Use Not included
Subaru Impreza 2.5 STI CS400 AWD (GRF) 2010.04-2013.08 EJ257 2457 Petrol 294 kW 400 BHP (2010.04 - 2013.08) 870 Track Use Not included
Subaru Impreza 2.5 WRX STI 330S AWD 2009.05-2010.12 EJ257 2457 Petrol 243 kW 330 BHP (2009.05 - 2010.12) 870 Track Use Not included
