KSU24501-1R

Recommended for: Motorsport Applications

-1R kits feature a sprung ceramic friction disc, but with even greater clamping force pressure plate for higher torque capacity. These kits are designed specifically for motorsport applications such as circuit, rally, drifting and drag racing.

• Torque capacity 1150Nm
• Clamp load Increased over standard
• Sprung Ceramic Friction Disc
• Extra Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	240
Clutch Disc Spline Count	24
Clutch Disc Spline Diameter (mm)	25.2
Flywheel Step	-15.0mm/.590""""
Torque (Nm)	1150
Clamp Force	1650Kg
Clamp Force Increase	60%
Stage	Stage 2R
Usage	Track Use
Design	Single Plate Sprung Ceramic Disc – designed for high-performance or track-oriented vehicles. Provides increased heat resistance and torque capacity while maintaining some drivability thanks to the sprung hub design.
Tech Bulletins	TSB-161  TSB-PULL01  TSB-SU01

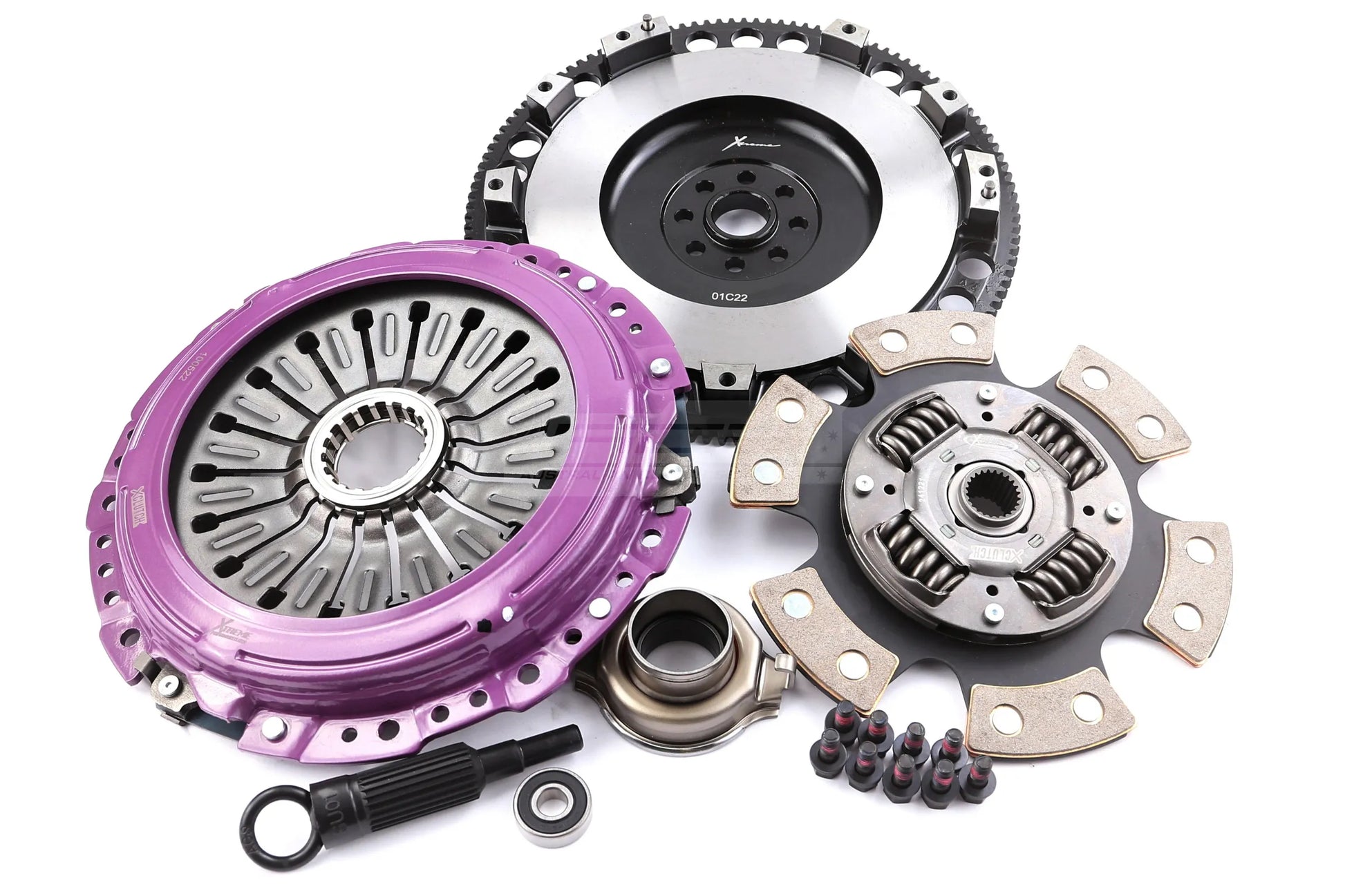

Kit Includes	Pressure Plate, Clutch Disc, Release Bearing, Spigot Bearing, Alignment Tool, Flywheel
Flywheel	Single Mass Flywheel
Additional information	Suits 6 Speed Gearbox

Compatibility
Subaru	Impreza	2.0 AWD (GDA)	2001.12-2002.11	EJ205 1994 Petrol 150 kW 204 BHP (2001.12 - 2002.11)	Suits 6 Speed Gearbox	1150	Track Use	Single Mass Flwyheel
Subaru	Impreza	2.0 Turbo AWD (GGA)	2000.12-2005.12	EJ205 1994 Petrol 160 kW 218 BHP (2000.12 - 2005.12)	Suits 6 Speed Gearbox	1150	Track Use	Single Mass Flwyheel
Subaru	Impreza	2.0 Turbo GT AWD (GC8)	1998.06-2000.12	EJ205 1994 Petrol 160 kW 218 BHP (1998.06 - 2000.12)	Suits 6 Speed Gearbox	1150	Track Use	Single Mass Flwyheel
Subaru	Impreza	2.0 Turbo GT AWD (GF8)	1998.06-2000.12	EJ205 1994 Petrol 160 kW 218 BHP (1998.06 - 2000.12)	Suits 6 Speed Gearbox	1150	Track Use	Single Mass Flwyheel
Subaru	Impreza	2.0 WRX Turbo AWD (GDA)	2000.12-2005.12	EJ205 1994 Petrol 160 kW 218 BHP (2000.12 - 2005.12)	Suits 6 Speed Gearbox	1150	Track Use	Single Mass Flwyheel
Subaru	Impreza	2.0 WRX Turbo AWD (GGA)	2002.12-2006.09	EJ205 1994 Petrol 165 kW 225 BHP (2002.12 - 2006.09)	Suits 6 Speed Gearbox	1150	Track Use	Single Mass Flwyheel
Subaru	Impreza	2.0 WRX Turbo AWD (GDA)	2002.12-2007.03	EJ205 1994 Petrol 165 kW 225 BHP (2002.12 - 2007.03)	Suits 6 Speed Gearbox	1150	Track Use	Single Mass Flwyheel
Subaru	Impreza	2.0 WRX Turbo AWD (GDA)	2002.12-2005.09	EJ205 1994 Petrol 168 kW 228 BHP (2002.12 - 2005.09)	Suits 6 Speed Gearbox	1150	Track Use	Single Mass Flwyheel
Subaru	Impreza	2.0 WRX AWD (GGA)	2001.09-2005.12	EJ205 1994 Petrol 169 kW 230 BHP (2001.09 - 2005.12)	Suits 6 Speed Gearbox	1150	Track Use	Single Mass Flwyheel
Subaru	Impreza	2.0 WRX AWD (GGA)	2005.10-2007.03	EJ205 1994 Petrol 184 kW 250 BHP (2005.10 - 2007.03)	Suits 6 Speed Gearbox	1150	Track Use	Single Mass Flwyheel
Subaru	Impreza	2.0 WRX STi AWD (GDB)	2001.11-2005.07	EJ207 1994 Petrol 195 kW 265 BHP (2001.11 - 2005.07)	Suits 6 Speed Gearbox	1150	Track Use	Single Mass Flwyheel
Subaru	Impreza	2.0 WRX STi AWD (GGB)	2000.10-2002.10	EJ207 1994 Petrol 206 kW 280 BHP (2000.10 - 2002.10)	Suits 6 Speed Gearbox	1150	Track Use	Single Mass Flwyheel
Subaru	Impreza	2.0 WRX STi AWD (GC8)	1996.09-2000.09	EJ207 1994 Petrol 206 kW 280 BHP (1996.09 - 2000.09)	Suits 6 Speed Gearbox	1150	Track Use	Single Mass Flwyheel
Subaru	Impreza	2.0 WRX STi AWD (GDB)	2005.10-2007.03	EJ207 1994 Petrol 206 kW 280 BHP (2005.10 - 2007.03)		1150	Track Use	Single Mass Flwyheel
Subaru	Impreza	2.0 WRX STi AWD (GRB)	2007.12-2010.12	EJ20 (Turbo) 1994 Petrol 227 kW 309 BHP (2007.12 - 2010.12)	Suits 6 Speed Gearbox	1150	Track Use	Single Mass Flwyheel
Subaru	Impreza	2.0 WRX STi AWD	2004.02-2005.07	EJ207 1994 Petrol 235 kW 320 BHP (2004.02 - 2005.07)	Suits 6 Speed Gearbox	1150	Track Use	Single Mass Flwyheel
Subaru	Impreza	2.0 WRX STi AWD	2005.09-2007.12	EJ257 2457 Petrol 195 kW 265 BHP (2005.09 - 2007.12)		1150	Track Use	Single Mass Flwyheel
Subaru	Impreza	2.5 WRX STi AWD (GDF)	2005.09-2007.12	EJ257 2457 Petrol 206 kW 280 BHP (2005.09 - 2007.12)		1150	Track Use	Single Mass Flwyheel
Subaru	Impreza	2.5 WRX STi AWD	2005.10-2007.03	EJ257 2457 Petrol 221 kW 300 BHP (2005.10 - 2007.03)		1150	Track Use	Single Mass Flwyheel
Subaru	Impreza	2.5 WRX STi AWD (GDF)	2005.10-2007.03	EJ257 2457 Petrol 221 kW 300 BHP (2005.10 - 2007.03)		1150	Track Use	Single Mass Flwyheel
Subaru	Impreza	2.5 WRX STI AWD (GRF)	2008.01-2013.08	EJ257 2457 Petrol 221 kW 301 BHP (2008.01 - 2013.08)		1150	Track Use	Single Mass Flwyheel
Subaru	Impreza	2.5 WRX STI AWD (GVF)	2011.01-	EJ255 2457 Petrol 221 kW 301 BHP (2011.01 - )		1150	Track Use	Single Mass Flwyheel
Subaru	WRX	STi 2.5 AWD	2014.06-	EJ257 2457 Petrol 221 kW 301 BHP (2014.06 - )		1150	Track Use	Single Mass Flwyheel
Subaru	Impreza	2.5 WRX STI AWD (GRF)	2008.01-2013.08	EJ257 2457 Petrol 227 kW 309 BHP (2008.01 - 2013.08)		1150	Track Use	Single Mass Flwyheel
Subaru	Impreza	2.5 STI CS400 AWD (GRF)	2010.04-2013.08	EJ257 2457 Petrol 294 kW 400 BHP (2010.04 - 2013.08)		1150	Track Use	Single Mass Flwyheel
Subaru	Impreza	2.5 WRX STI 330S AWD	2009.05-2010.12	EJ257 2457 Petrol 243 kW 330 BHP (2009.05 - 2010.12)		1150	Track Use	Single Mass Flwyheel
