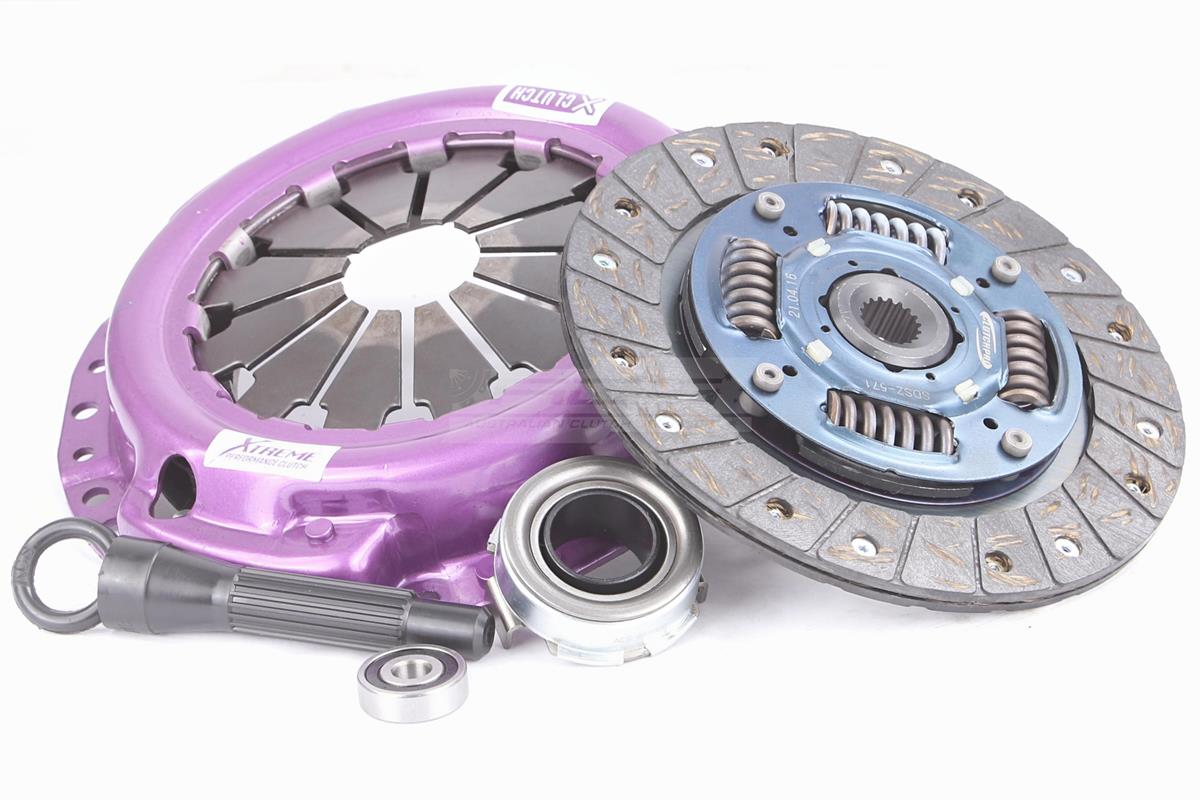

KSZ19003-1A

Recommended for: Street use in vehicles with minor engine modifications.

Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

• Torque capacity 170Nm

• Clamp load Increased over standard
• Organic Friction Discs
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	190
Clutch Disc Spline Count	18
Clutch Disc Spline Diameter (mm)	19.3
Torque (Nm)	170
Flywheel Step	0
Design	Single Plate
Stage	Stage 1
Tech Bulletins
Clamp Load
Recommended for	Street Performance & Towing - Stage 1
Ring Gear Tooth count
Additional infotmation

Compatibility
Suzuki	Baleno	1.3 (SY413)	1996.09-2002.05	G13BA 1298 Petrol 52 kW 71 BHP (1996.09 - 2002.05)
Suzuki	Baleno	1.3 16V (SY413)	1997.03-2002.05	G13BB 1298 Petrol 63 kW 86 BHP (1997.03 - 2002.05)
Subaru	Justy	1.3 AWD (G3X413)	2003.09-2007	M13A 1328 Petrol 69 kW 94 BHP (2003.09-2007)
Suzuki	Baleno	1.3 i 16V (SY413)	1995.07-2002.05	G13BB 1298 Petrol 63 kW 85 BHP (1995.07 - 2002.05)
Subaru	Justy	1.5 AWD (G3X413)	2003.09-2007	M15A 1490 Petrol 73 kW 99 BHP (2003.09-2007)
Suzuki	Ignis	FH | 1.3 4WD (RG413)	2000.10-2003.09	M13A 1328 Petrol 61 kW 83 BHP (2000.10 - 2003.09)
Suzuki	Swift	Gen. II | 1.3 (SF413. AB35)	1989.03-2001.05	1298 Petrol 50 kW 68 BHP (1989.03 - 2001.05)
Suzuki	Swift	Gen. II | 1.3 GTi (SF413. AA34)	1989.03-2001.05	G13B 1298 Petrol 74 kW 101 BHP (1989.03 - 2001.05)
Holden	H Series	MF | 1.3 GL	1989.02-1991.09	G13BA 1298 Petrol 50 kW 67 BHP (1989.02 - 1991.09)
Suzuki	Ignis	MH | 1.3 (RM413)	2003.09-2008	M13A 1328 Petrol 69 kW 94 BHP (2003.09-2008)
Suzuki	Ignis	MH | 1.3 4x4 (RM413)	2003.09-2008	M13A 1328 Petrol 69 kW 94 BHP (2003.09-2008)
Holden	H Series	MH | 1.3 GL	1991.10-1994.05	G13BA 1298 Petrol 50 kW 68 BHP (1991.10 - 1994.05)
