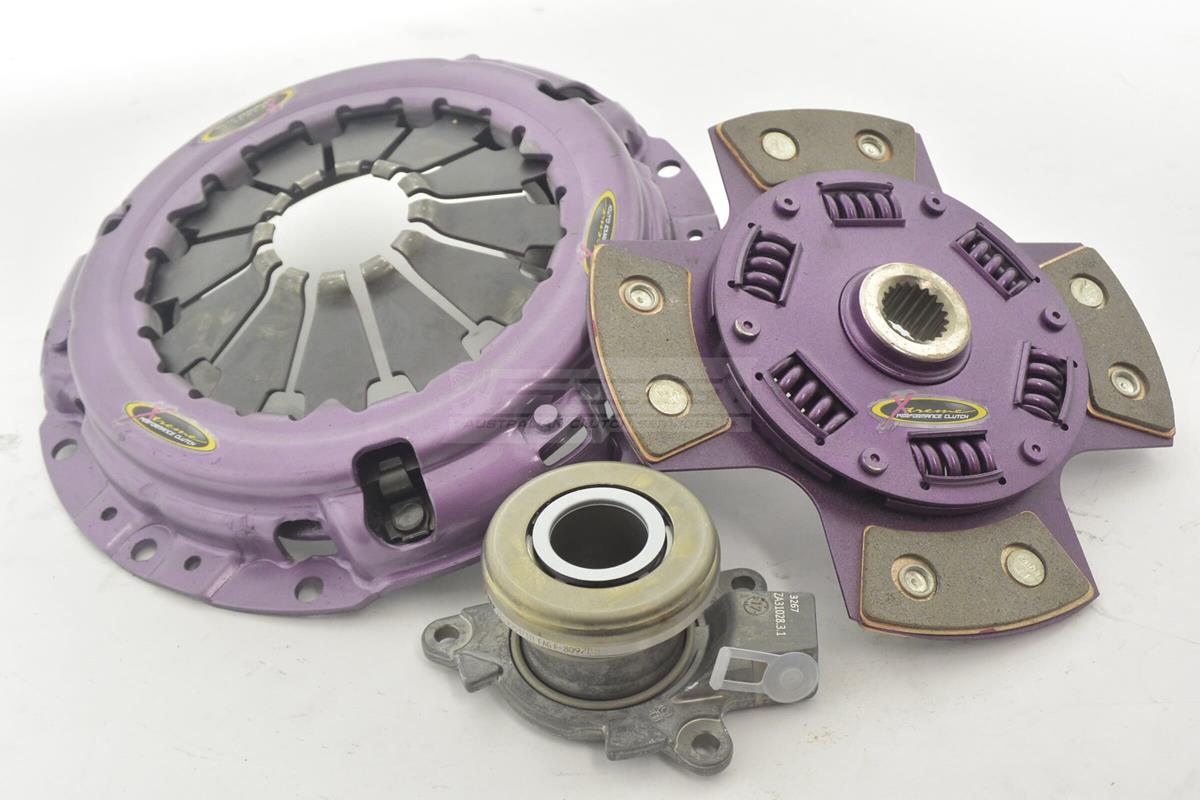

KSZ20409-1B

Recommended for: Motorsport Applications

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

• Torque capacity 390Nm
• Clamp load 600kg Increased over standard
• Sprung Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	200
Clutch Disc Spline Count	20
Clutch Disc Spline Diameter (mm)	22.4
Torque (Nm)	390
Flywheel Step	Flat
Design	Single Plate
Stage	Stage 2
Tech Bulletins
Clamp Load	600 Kg
Recommended for	Track - Stage 2
Ring Gear Tooth count
Additional infotmation

Compatibility
Suzuki	SX4	1.5 (RW 415)	2006.06-2010.07	M15A 1490 Petrol 73 kW 99 BHP (2006.06 - 2010.07)
Suzuki	SX4	1.5 VVT (RW 415)	2010.07-2013	M15A 1490 Petrol 82 kW 112 BHP (2010.07 - 2013)
Suzuki	SX4	1.6 (RW 416)	2006.06-2010	M16A 1586 Petrol 74 kW 101 BHP (2006.06 - 2010)
Suzuki	SX4	1.6 (RW 416)	2007.10-2009	M16A 1586 Petrol 79 kW 107 BHP (2007.10 - 2019)
Suzuki	SX4	1.6 (RW 416)	2007.10-2009	M16A 1586 Petrol 79 kW 107 BHP (2007.10 - 2019)
Suzuki	SX4	1.6 (RW 416)	2007.10-2013	M16A 1586 Petrol 88 kW 120 BHP (2007.10 - 2013)
Suzuki	SX4	1.6 AWD (RW 416)	2007.10-2011.12	M16A 1586 Petrol 79 kW 107 BHP (2007.10 - 2011.12)
Suzuki	SX4	1.6 VVT	2010.11-2015.12	M16A 1586 Petrol 82 kW 112 BHP (2010.11 - 2015.12)
Suzuki	SX4	1.6 VVT (RW 416)	2006.06-2010	M16A 1586 Petrol 79 kW 107 BHP (2006.06 - 2010)
Suzuki	SX4	1.6 VVT (RW 416)	2009.07-2013	M16A 1586 Petrol 88 kW 120 BHP (2009.07 - 2013)
Suzuki	SX4	1.6 VVT 4x4 (RW 416)	2006.06-2010	M16A 1586 Petrol 79 kW 107 BHP (2006.06 - 2010)
Suzuki	SX4	1.6 VVT 4x4 (RW 416)	2009.07-2013	M16A 1586 Petrol 82 kW 112 BHP (2009.07 - 2013)
Suzuki	SX4	1.6 VVT 4x4 (RW 416)	2009.07-2013	M16A 1586 Petrol 88 kW 120 BHP (2009.07 - 2013)
