ACS
KTY20531-2B
KTY20531-2B
Regular price
€2.492,96 EUR
Regular price
Sale price
€2.492,96 EUR
Quantity
Couldn't load pickup availability

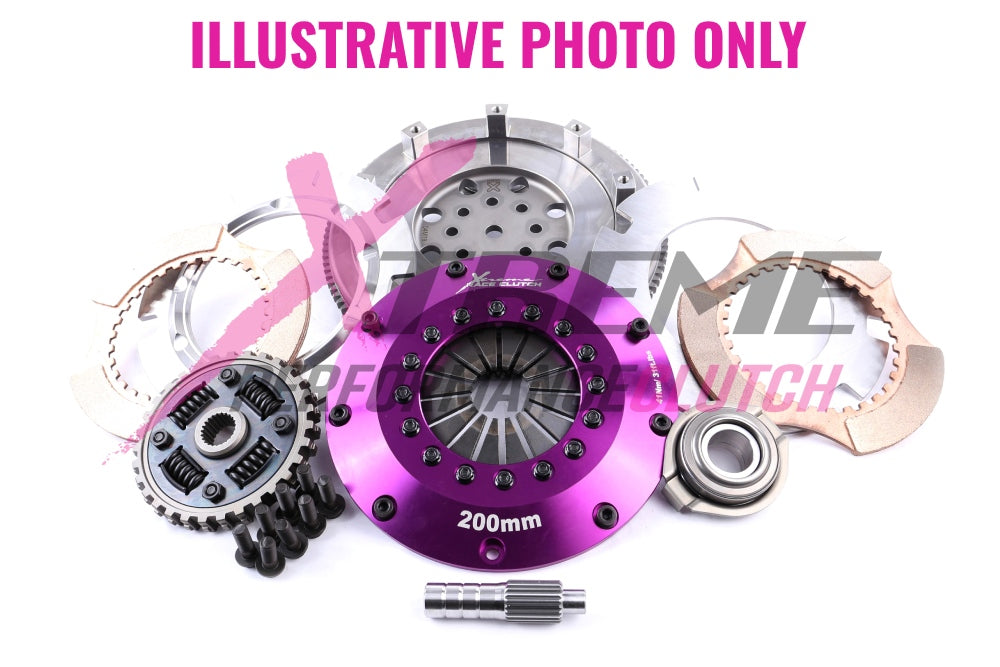

Xtreme Motorsport 200mm twin plate
The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC). Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- High torque sprung driven discs (common hub)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7.4kg |
| Disc Set Static Mass | 2.15kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
| Clutch Disc Diameter (mm) | 200 |
| Clutch Disc Spline Count | 14 |
| Clutch Disc Spline Diameter (mm) | 32.0 |
| Flywheel Step | +2.2mm |
| Torque (Nm) | 1200 |
| Clamp Load | 1100Kg |
| Stage | 5 |
| Usage | Motorsport |
| Design | 200mm Twin Plate Sprung Ceramic – engineered for high-performance track use. Combines excellent torque and heat resistance with smoother engagement and improved drivability. |
| Tech Bulletins | TSB-200-2-X-1 TSB-TY11 |
| Kit Includes | Flywheel, Two Discs, Intermediate Plate, Main Casting, Clutch Cover, Relase Bearing, Spigot Bearing, Bolts, Alignment Tool, PullToPush Conversion Parts |
| Flywheel | Single Mass Flywheel |
| Additional information | Conversion from Pull to Push Type |
| Compatibility | ||||||||
|---|---|---|---|---|---|---|---|---|
| Toyota | Supra | 3.0 i Bi-Turbo (JZA80_) | 1993.05-2002.07 | 2JZ-GTE 2997 Petrol 210 kW 286 BHP (1993.05 - 2002.07) | Pull To Push Type Conversion | 1200 | Motorsport | Single Mass Flywheel |
| Toyota | Supra | 3.0 i Bi-Turbo (JZA80_) | 1994.03-2002.07 | 2JZ-GTE 2997 Petrol 240 kW 326 BHP (1994.03 - 2002.07) | Pull To Push Type Conversion | 1200 | Motorsport | Single Mass Flywheel |
| Toyota | Supra | 3.0 i Bi-Turbo (JZA80_) | 1993.05-2002.07 | 2JZ-GTE 2997 Petrol 243 kW 330 BHP (1993.05 - 2002.07) | Pull To Push Type Conversion | 1200 | Motorsport | Single Mass Flywheel |
