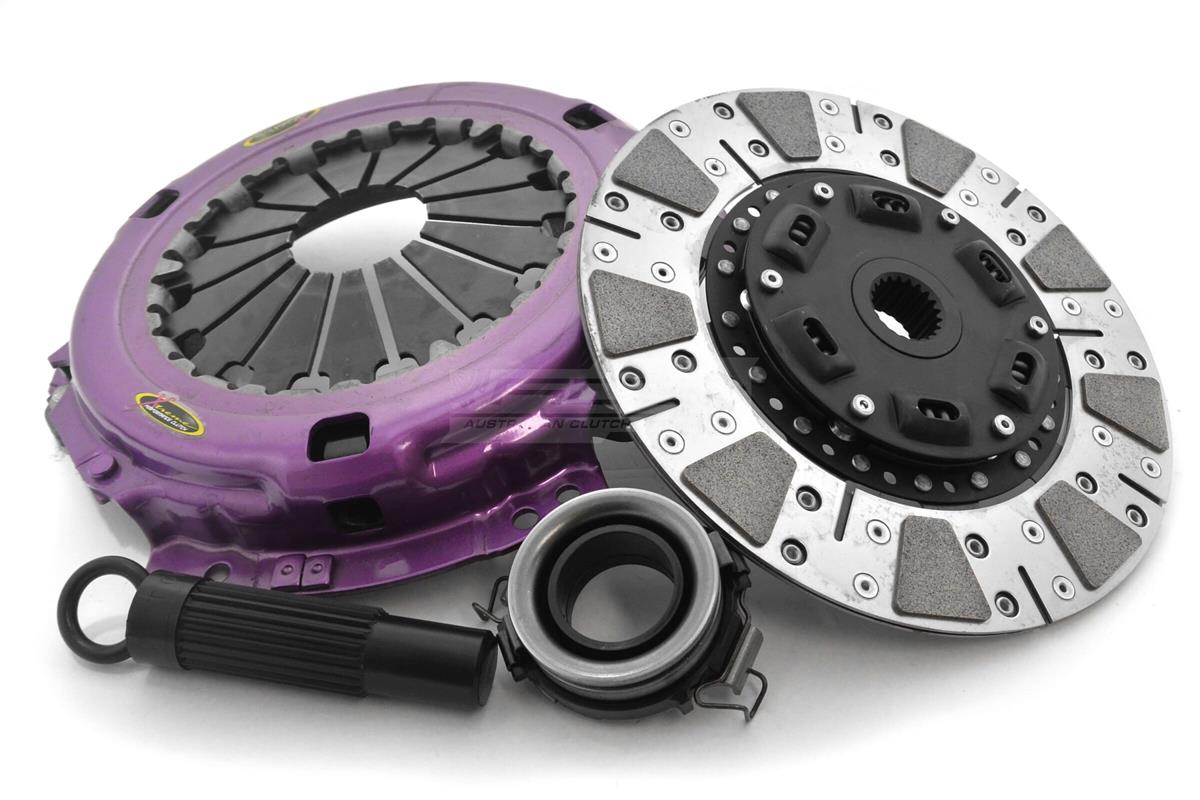

Xtreme Performance - Cushioned Ceramic kit /-1C
Recommended for: Motorsport Applications

These kits are available with cushioned ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

Specifications:
  • Torque capacity 630Nm
  • Clamp load 820Kg 30% Increased over standard
  • Cushioned Ceramic Friction Disc
  • Heavy Duty Pressure Plate
  • Kit contains everything you need for a successful installation + accessories

The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.

Xtreme Performance
At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.
What's in the Box?
Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.
Clutch Disc Diameter (mm) 236
Clutch Disc Spline Count 21
Clutch Disc Spline Diameter (mm) 29
Torque (Nm) 630
Flywheel Step +0.5mm
Design Single Plate
Stage Stage 2
Tech Bulletins
Clamp Load 820Kg (30% inc.)
Recommended for Track - Stage 2
Ring Gear Tooth count
Additional infotmation
Compatibility
Toyota Caldina T21 | 2.0 Turbo 4WD (ST215W_) 2000.02-2001.09 3S-GTE 1998 Petrol 192 kW 261 BHP (2000.02 - 2001.09) 630 Track Use Not included
Toyota Caldina T21 | 2.0 4WD (ST215W_) 1997.10-2001.09 3S-GE 1998 Petrol 140 kW 190 BHP (1997.10 - 2001.09) 630 Track Use Not included
Toyota Camry 3.0 (VCV10) 1995.06-1996.09 3VZ-FE 2959 Petrol 140 kW 190 BHP (1995.06 - 1996.09) 630 Track Use Not included
Toyota Camry 3.0 (VCV10R) 1991.06-1996.08 3VZ-FE 2959 Petrol 138 kW 188 BHP (1991.06 - 1996.08) 630 Track Use Not included
Toyota Camry 3.0 (MCV30_, MCV36_) 2002.09-2006.11 1MZ-FE 2995 Petrol 141 kW 192 BHP (2002.09 - 2006.11) 630 Track Use Not included
Toyota Carina T20 | 2.0 (ST202, ST205) 1993.01-1998.12 3S-GE 1998 Petrol 125 kW 170 BHP (1993.01 - 1998.12) 630 Track Use Not included
Toyota Carina T20 | 2.0 (ST205) 1993.01-1998.12 3S-GE 1998 Petrol 132 kW 180 BHP (1993.01 - 1998.12) 630 Track Use Not included
Toyota Celica 2.0 (ST182, ST183) 1989.10-1993.09 3S-GE 1998 Petrol 123 kW 167 BHP (1989.10 - 1993.09) 630 Track Use Not included
Toyota Celica 2.0 (ST182, ST183) 1989.09-1994.01 3S-GE 1998 Petrol 115 kW 156 BHP (1989.09 - 1994.01) 630 Track Use Not included
Toyota Celica 2.0 (ST182_) 1989.09-1993.10 3S-GE 1998 Petrol 118 kW 160 BHP (1990.09 - 1993.10) 630 Track Use Not included
Toyota Celica 2.0 Turbo 4WD (ST185) 1989.10-1993.11 3S-GTE 1998 Petrol 150 kW 204 BHP (1989.10 - 1993.11) 630 Track Use Not included
Toyota Celica 2.0 Turbo 4WD (ST185) 1989.10-1994.01 3S-GTE 1998 Petrol 153 kW 208 BHP (1989.10 - 1994.01) 630 Track Use Not included
Toyota Celica 2.0 Turbo 4WD (ST185) 1989.10-1993.09 3S-GTE 1998 Petrol 165 kW 224 BHP (1989.10 - 1993.09) 630 Track Use Not included
Toyota Celica 2.0 Turbo 4WD (ST205) 1994.02-1999.11 3S-GTE 1998 Petrol 178 kW 242 BHP (1994.02 - 1999.11) 630 Track Use Not included
Toyota Celica GT-FOUR 2.0 4WD (ST205) 1994.02-1999.08 3S-GTE 1998 Petrol 188 kW 256 BHP (1994.02 - 1999.08) 630 Track Use Not included
Toyota Celica 2.0 GTi (ST182) 1989.10-1993.11 3S-GE 1998 Petrol 115 kW 156 BHP (1989.10 - 1993.11) 630 Track Use Not included
Toyota Celica 2.0 GTi (ST183) 1990.10-1993.10 3S-GE 1998 Petrol 118 kW 160 BHP (1990.10 - 1993.10) 630 Track Use Not included
Toyota MR2 Gen. II | 2.0 Turbo (SW20_) 1989.12-1999.07 3S-GTE 1998 Petrol 165 kW 225 BHP (1989.12 - 1999.07) 630 Track Use Not included
Toyota MR2 Gen. II | 2.0 Turbo (SW20_) 1989.12-1999.07 3S-GTE 1998 Petrol 167 kW 227 BHP (1989.12 - 1999.07) 630 Track Use Not included
Toyota MR2 Gen. II | 2.0 Turbo (SW20_) 1989.12-1999.07 3S-GTE 1998 Petrol 180 kW 245 BHP (1989.12 - 1999.07) 630 Track Use Not included
