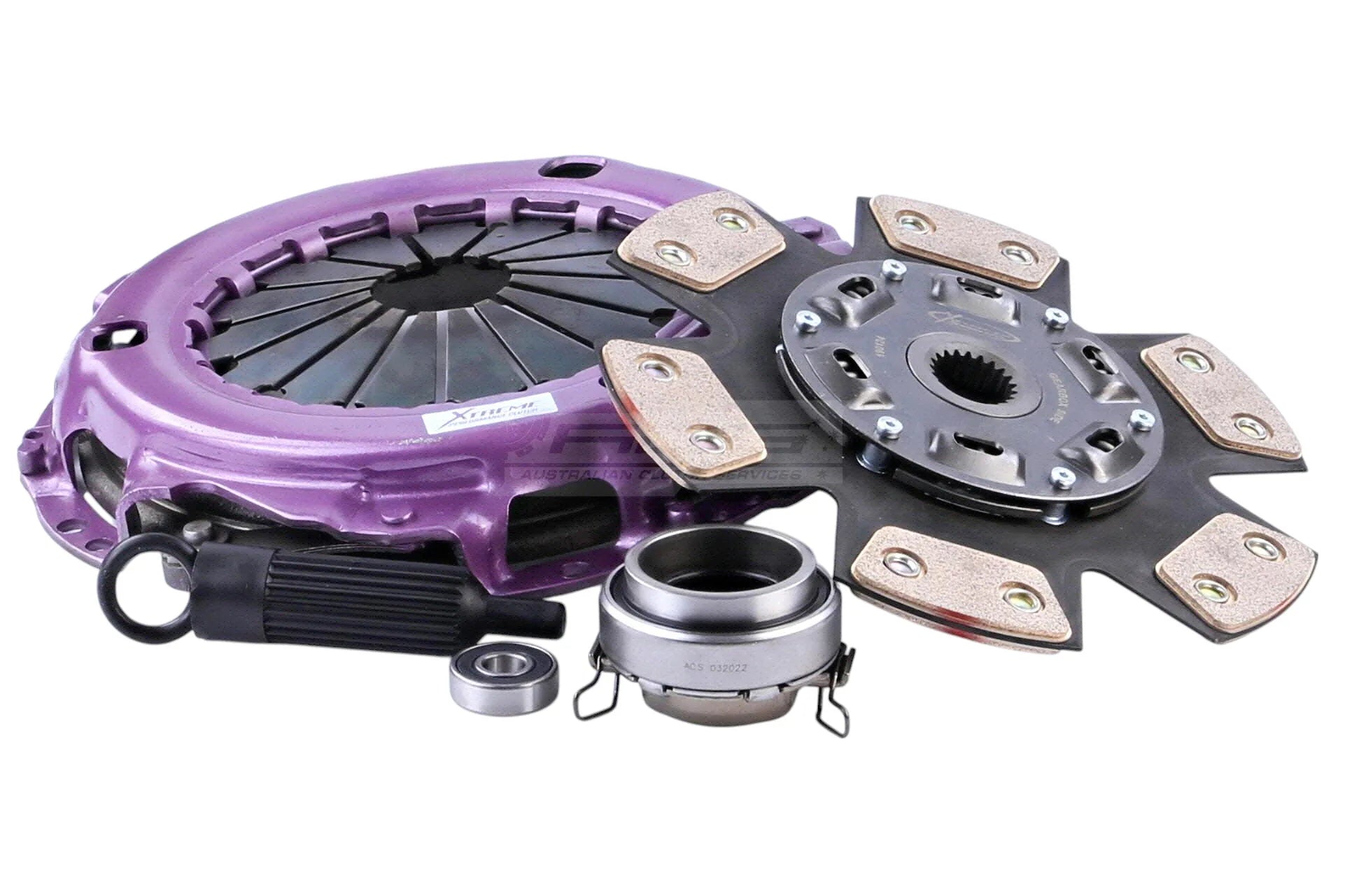

KTY24007-1R

Recommended for: Motorsport Applications

-1R kits feature a sprung ceramic friction disc, but with even greater clamping force pressure plate for higher torque capacity. These kits are designed specifically for motorsport applications such as circuit, rally, drifting and drag racing.

• Torque capacity 820Nm
• Clamp load 1500Kg 115% Increased over standard
• Sprung Ceramic Friction Disc
• Extra Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	240
Clutch Disc Spline Count	21
Clutch Disc Spline Diameter (mm)	29.8
Flywheel Step	+0.5mm
Torque (Nm)	820
Clamp Force	1500Kg
Clamp Force Increase	115%
Stage	Stage 2R
Usage	Track Use
Design	Single Plate Sprung Ceramic Disc – designed for high-performance or track-oriented vehicles. Provides increased heat resistance and torque capacity while maintaining some drivability thanks to the sprung hub design.
Tech Bulletins	TSB-250
Kit Includes	Pressure Plate, Clutch Disc, Release Bearing, Spigot Bearing, Alignment Tool
Flywheel	Not included
Additional information	Suit Pressed Metal Fork

Compatibility
Toyota	Supra	3.0 (MA70_. MA70)	1986.01-1993.05	7M-GE 2954 Petrol 140 kW 190 BHP (1986.01 - 1993.05)	820	Track Use	Not included
Toyota	Supra	3.0 (MA70_. MA70)	1986.01-1988.08	7M-GE 2954 Petrol 150 kW 204 BHP (1986.01 - 1988.08)	820	Track Use	Not included
Toyota	Supra	3.0 i (JZA80_)	1993.05-2002.07	2JZ-GE 2997 Petrol 168 kW 228 BHP (1993.05 - 2002.07)	820	Track Use	Not included
Toyota	Supra	3.0 i (JZA80_, JZA80R)	1993.05-1999.10	2JZ-GE 2997 Petrol 165 kW 224 BHP (1993.05 - 1999.10)	820	Track Use	Not included
