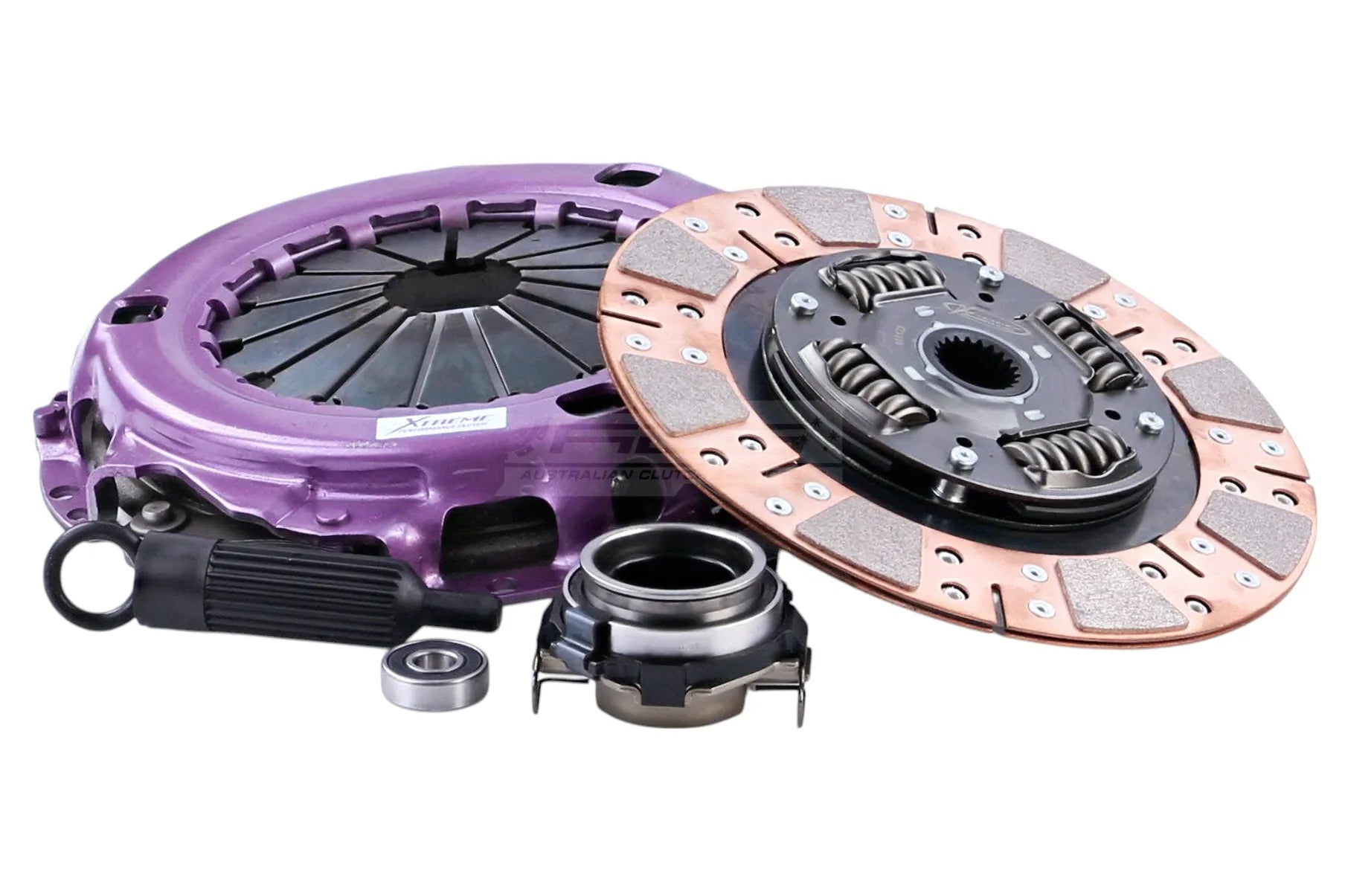

KTY24034-1CX

Recommended for: Motorsport Applications

These kits are available with cushioned ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

• Torque capacity 680Nm
• Clamp load Increased over standard
• Cushioned Ceramic Friction Disc
• Extra Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	240
Clutch Disc Spline Count	21
Clutch Disc Spline Diameter (mm)	29.8
Flywheel Step	+0.5mm
Torque (Nm)	680
Clamp Force
Clamp Force Increase
Stage	Stage 2X
Usage	Track Use
Design	Single Plate Cushioned Ceramic Disc – designed to deliver increased torque and heat capacity while maintaining smoother engagement than a standard ceramic disc, thanks to its cushioned friction surface.
Tech Bulletins	TSB-250
Kit Includes	Pressure Plate, Clutch Disc, Release Bearing, Spigot Bearing, Alignment Tool
Flywheel	Not included
Additional information	Suit Cast Iron Fork

Compatibility
Toyota	Supra	3.0 i (JZA80_)	1993.05-2002.07	2JZ-GE 2997 Petrol 168 kW 228 BHP (1993.05 - 2002.07)	Suits Cast Iron Fork	680	Track Use	Not included
Toyota	Supra	3.0 i (JZA80_, JZA80R)	1993.05-1999.10	2JZ-GE 2997 Petrol 165 kW 224 BHP (1993.05 - 1999.10)	Suits Cast Iron Fork	680	Track Use	Not included
