ACS
KTY26004-1B
KTY26004-1B
Regular price
€930,51 EUR
Regular price
Sale price
€930,51 EUR
Quantity
Couldn't load pickup availability

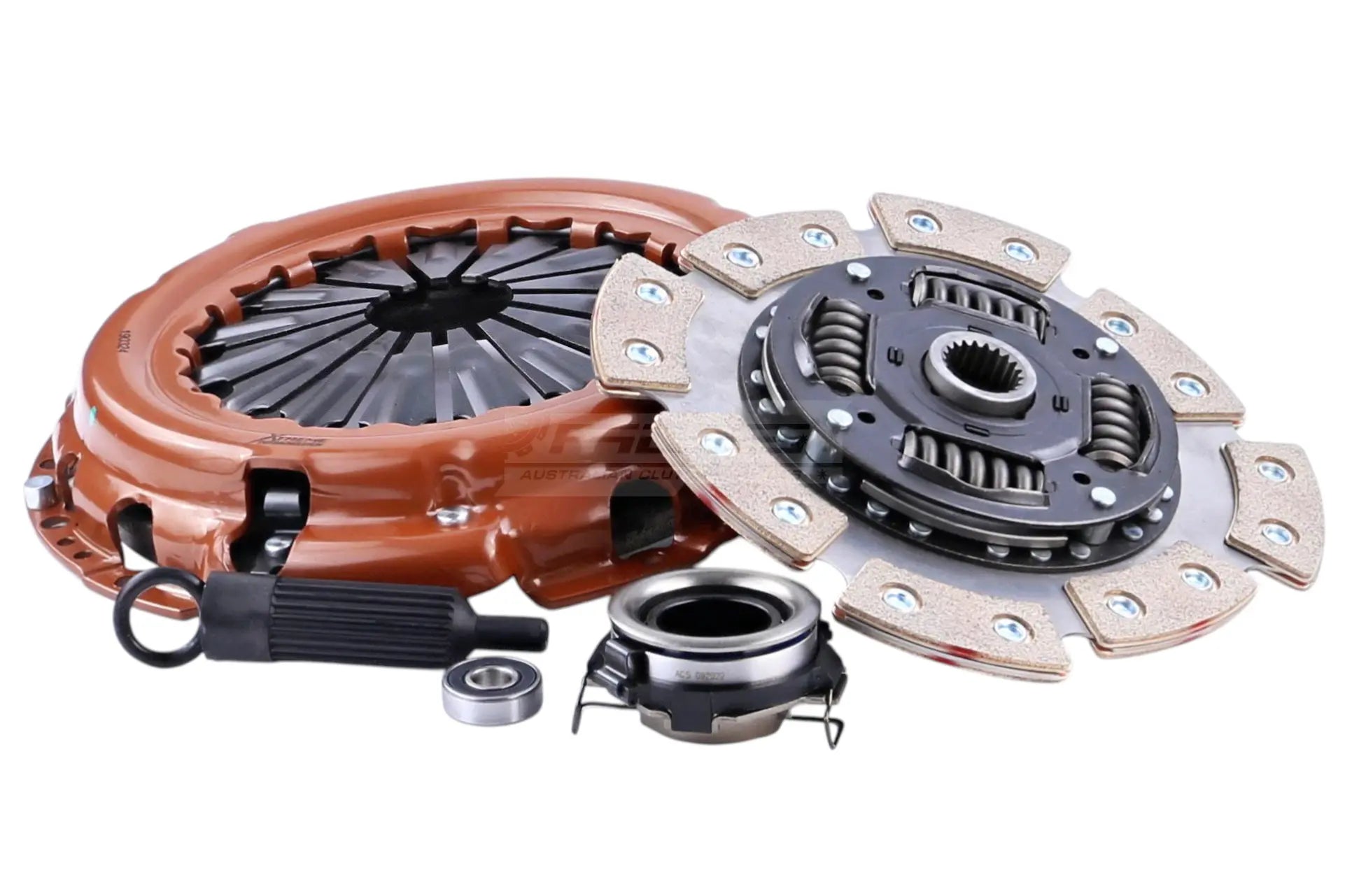

Xtreme Outback - Heavy duty sprung ceramic kit /-1B
Recommended for: Motorsport ApplicationsXtreme Outback Ceramic upgrades have been designed to offer the ultimate in heat capacity for single plate upgrades and are designed specifically for motorsport applications such as endurance rally events and time trials. Available in Sprung Ceramic and Cushioned Ceramic, there are a wide variety of options to choose from depending on the vehicle use.Specifications:
- Torque capacity 610Nm
- Clamp load 800Kg 40% Increased over standard
- Ceramic Friction Disc
- Heavy Duty Pressure Plate
- Kit contains everything you need for a successful installation + accessories
Xtreme Outback
Designed and Engineered to handle the toughest conditions on the planet, Xtreme Outback Clutch Kits are the ultimate 4x4 heavy duty upgrade for the street and offroad.Each Xtreme Outback clutch kit is designed and developed to offer the ultimate balance between performance, durability and drivability. As used by motorsport teams and armoured car manufacturers across the globe, Xtreme Outback clutch kits can be trusted to get you there... and back again.
What's in the Box?
Xtreme Outback upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.
| Torque (Nm) | 610 |
| Clamp Load | 800KG (40% inc.) |
| Flywheel Step | -4.2mm |
| Clutch Disc Diameter (mm) | 260 |
| Clutch Disc Spline Count | 21 |
| Clutch Disc Spline Diameter (mm) | 29,8 |
| Recommended for | High Speed 4x4 Trial or Desert Race - Stage 2 |
| Design | Single Plate |
| Diameter [mm] | 260 |
| Stage | Stage 2 |
| Compatibility | ||||||
|---|---|---|---|---|---|---|
| Toyota | Land Cruiser Prado | 3.0 TD (KZJ90. KZJ95) | 1995.04-2000.07 | 1KZ-TE 2982 Diesel 103 kW 140 BHP (1995.04 - 2000.07) | For -4.2mm flywheel step. | For engines with OEM Single Mass Flywheel |
| Toyota | Land Cruiser Prado | 3.0 TD (KZJ90R. KZJ95R. KZJ90W. KZJ95W) | 1996.04-2002.12 | 1KZ-TE 2982 Diesel 92 kW 125 BHP (1996.04 - 2002.12) | Country version: Australia | For engines with OEM Single Mass Flywheel |
| Toyota | Land Cruiser Prado | 3.0 TD (KZJ95) | 2000.03-2003.02 | 1KZ-TE 2982 Diesel 96 kW 131 BHP (2000.03 - 2003.02) | For engines with OEM Single Mass Flywheel | |
