2647L

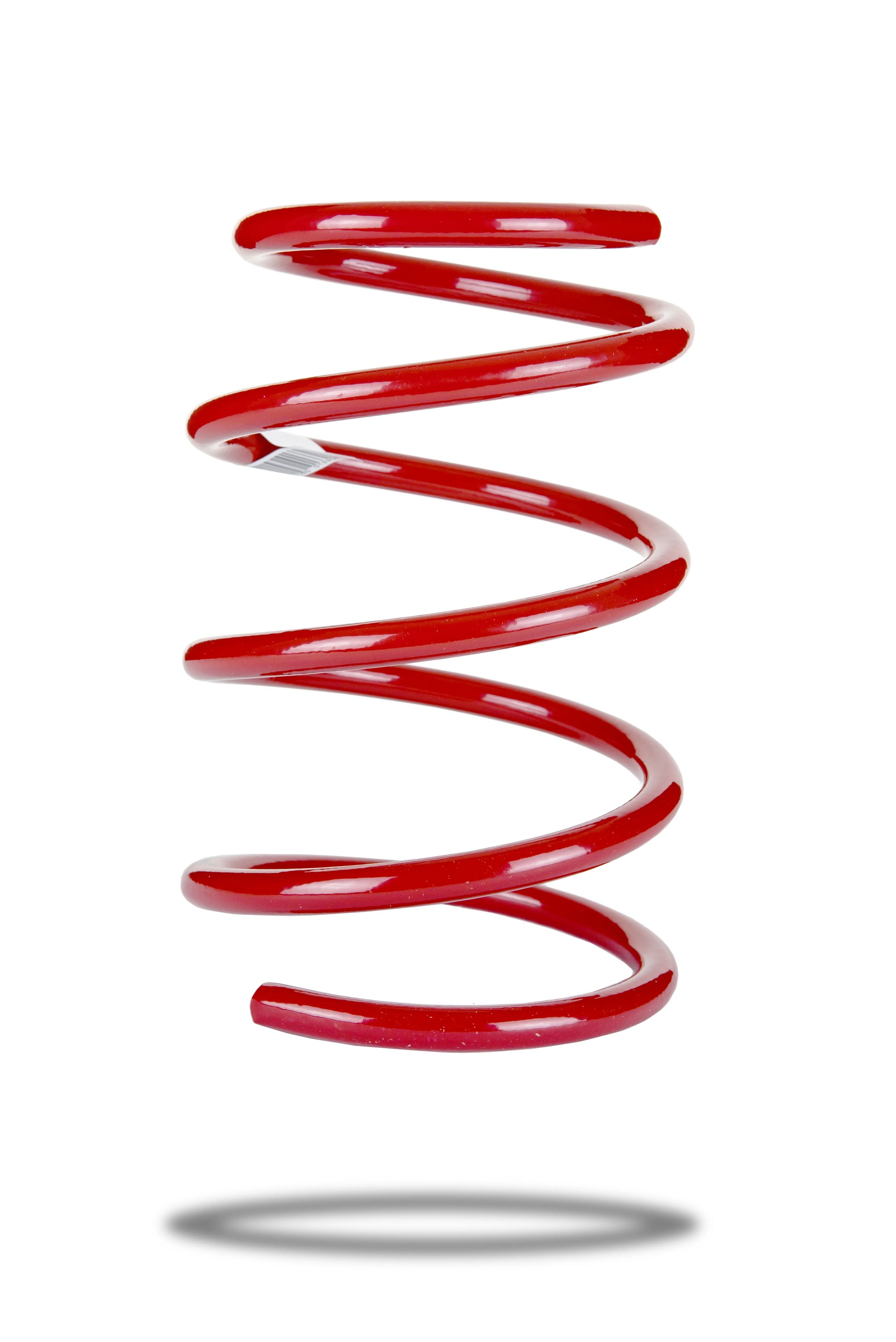

Pedders Coil Spring

Pedders Coil Springs are Pedder's premium range of Coil Springs for multiple applications. Built to ISO 9001 standards with tolerance of only +/-2mm at loaded height. Pedders Coil Springs are simply unrivaled in terms of handling, vehicle appearance and performance. Coil Spring design and manufacturing is a craft which requires strict adherence to a demanding series of procedures, all of which are critical to the performance of the final product.

The spring rate, or stiffness, must be matched to the weight of the vehicle resting on it and the weight of the other suspension components and the wheel. Spring rate also controls roll stiffness, or body roll. By reducing the amount of body roll, we reduce the amount of wheel camber change. Large camber change can drastically reduce the tyre’s contact with the road surface, severely limiting the handling potential during cornering.

The handling of most vehicles is substantially improved by increasing the original spring rate to an optimum rate which maximises tyre adhesion and reduces body roll for better handling. Increasing the spring rate beyond the optimum rate detracts from the handling potential as the tyres begin to skip over bumps, reducing grip and safety.

Features & Benefits

• Hot Coiling
• Oil Quenching
• Furnace Tempering
• Shot Peening
• Scragging
• Loaded Height and Rate Testing
• Powder Coating and Packaging

Spring rate [kgf/mm]	3,74
Load at Nominal Ride Height [kgs]	315
Height at Nominal Ride Height [mm]	120
Spring Rate [lbf/in]	208.55
Shape - Inner Diameter (Bottom)	Eye Special
Free Height [mm]	230

Compatibility
BMW	3 Series	316, E46	316, E46 | 1999-Onward	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring	When fitting coil or shocks, support the RHF lower control arm to avoid breaking headlight angle sensor if fitted. The 2647 springs fit both the 4 & 6 Cyl models. PLEASE NOTE:- Coupe models are lower than other models from the factory.
BMW	3 Series	316, E46 Coupe	316, E46 Coupe | 1999-Onward	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring	When fitting coil or shocks, support the RHF lower control arm to avoid breaking headlight angle sensor if fitted. The 2647 springs fit both the 4 & 6 Cyl models. PLEASE NOTE:- Coupe models are lower than other models from the factory.
BMW	3 Series	316i, E46 Wagon	316i, E46 Wagon | 2001-Onward	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring	When fitting coil or shocks, support the RHF lower control arm to avoid breaking headlight angle sensor if fitted. The 2647 springs fit both the 4 & 6 Cyl models. PLEASE NOTE:- Coupe models are lower than other models from the factory.
BMW	3 Series	316i, E46 Sedan & Hatch	316i, E46 Sedan & Hatch | 1999-Onward	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring	When fitting coil or shocks, support the RHF lower control arm to avoid breaking headlight angle sensor if fitted. The 2647 springs fit both the 4 & 6 Cyl models. PLEASE NOTE:- Coupe models are lower than other models from the factory.
BMW	3 Series	316Ti, E46, Hatch	316Ti, E46, Hatch | 2001-2006	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring	When fitting coil or shocks, support the RHF lower control arm to avoid breaking headlight angle sensor if fitted. The 2647 springs fit both the 4 & 6 Cyl models. PLEASE NOTE:- Coupe models are lower than other models from the factory.
BMW	3 Series	318Ci, E46 Coupe & Convertible	318Ci, E46 Coupe & Convertible | 1999-Onward	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring	When fitting coil or shocks, support the RHF lower control arm to avoid breaking headlight angle sensor if fitted. The 2647 springs fit both the 4 & 6 Cyl models. PLEASE NOTE:- Coupe models are lower than other models from the factory.
BMW	3 Series	318D, E46 Wagon	318D, E46 Wagon | 2001-Onward	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring	When fitting coil or shocks, support the RHF lower control arm to avoid breaking headlight angle sensor if fitted. The 2647 springs fit both the 4 & 6 Cyl models. PLEASE NOTE:- Coupe models are lower than other models from the factory.
BMW	3 Series	318D, E46 Sedan & Hatch	318D, E46 Sedan & Hatch | 1998-Onward	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring	When fitting coil or shocks, support the RHF lower control arm to avoid breaking headlight angle sensor if fitted. The 2647 springs fit both the 4 & 6 Cyl models. PLEASE NOTE:- Coupe models are lower than other models from the factory.
BMW	3 Series	318i, E46 Wagon	318i, E46 Wagon | 2009-2015	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring	When fitting coil or shocks, support the RHF lower control arm to avoid breaking headlight angle sensor if fitted. The 2647 springs fit both the 4 & 6 Cyl models. PLEASE NOTE:- Coupe models are lower than other models from the factory.
BMW	3 Series	318i, E46 Sedan & Hatch	318i, E46 Sedan & Hatch | 1998-Onward	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring	When fitting coil or shocks, support the RHF lower control arm to avoid breaking headlight angle sensor if fitted. The 2647 springs fit both the 4 & 6 Cyl models. PLEASE NOTE:- Coupe models are lower than other models from the factory.
BMW	3 Series	318Ti, E46, Sedan & Hatch	318Ti, E46, Sedan & Hatch | 1998-Onward	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring	When fitting coil or shocks, support the RHF lower control arm to avoid breaking headlight angle sensor if fitted. The 2647 springs fit both the 4 & 6 Cyl models. PLEASE NOTE:- Coupe models are lower than other models from the factory.
BMW	3 Series	320Cd, E46 Coupe & Convertible	320Cd, E46 Coupe & Convertible | 2000-Onward	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring	When fitting coil or shocks, support the RHF lower control arm to avoid breaking headlight angle sensor if fitted. The 2647 springs fit both the 4 & 6 Cyl models. PLEASE NOTE:- Coupe models are lower than other models from the factory.
BMW	3 Series	320Cd, E46 Coupe & Convertible	320Cd, E46 Coupe & Convertible | 2000-Onward	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring	When fitting coil or shocks, support the RHF lower control arm to avoid breaking headlight angle sensor if fitted. The 2647 springs fit both the 4 & 6 Cyl models. PLEASE NOTE:- Coupe models are lower than other models from the factory.
BMW	3 Series	320D, E46, Sedan & Hatch	320D, E46, Sedan & Hatch | 1985-2005	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring	When fitting coil or shocks, support the RHF lower control arm to avoid breaking headlight angle sensor if fitted. The 2647 springs fit both the 4 & 6 Cyl models. PLEASE NOTE:- Coupe models are lower than other models from the factory.
BMW	3 Series	320D, E46, Wagon	320D, E46, Wagon | 1995-2005	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring	When fitting coil or shocks, support the RHF lower control arm to avoid breaking headlight angle sensor if fitted. The 2647 springs fit both the 4 & 6 Cyl models. PLEASE NOTE:- Coupe models are lower than other models from the factory.
BMW	3 Series	320i, E46, Wagon	320i, E46, Wagon | 2000-2005	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring	When fitting coil or shocks, support the RHF lower control arm to avoid breaking headlight angle sensor if fitted. The 2647 springs fit both the 4 & 6 Cyl models. PLEASE NOTE:- Coupe models are lower than other models from the factory.
BMW	3 Series	320i, E46, Sedan	320i, E46, Sedan | 1998-2005	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring	When fitting coil or shocks, support the RHF lower control arm to avoid breaking headlight angle sensor if fitted. The 2647 springs fit both the 4 & 6 Cyl models. PLEASE NOTE:- Coupe models are lower than other models from the factory.
BMW	3 Series	323Ci, E46, Coupe & Convertible	323Ci, E46, Coupe & Convertible | 1999-2001	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring	When fitting coil or shocks, support the RHF lower control arm to avoid breaking headlight angle sensor if fitted. The 2647 springs fit both the 4 & 6 Cyl models. PLEASE NOTE:- Coupe models are lower than other models from the factory.
BMW	3 Series	323i, E46, Sedan	323i, E46, Sedan | 1998-2001	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring	When fitting coil or shocks, support the RHF lower control arm to avoid breaking headlight angle sensor if fitted. The 2647 springs fit both the 4 & 6 Cyl models. PLEASE NOTE:- Coupe models are lower than other models from the factory.
BMW	3 Series	325Ci, E46 Coupe & Convertible	325Ci, E46 Coupe & Convertible | 2000-2007	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring	When fitting coil or shocks, support the RHF lower control arm to avoid breaking headlight angle sensor if fitted. The 2647 springs fit both the 4 & 6 Cyl models. PLEASE NOTE:- Coupe models are lower than other models from the factory.
BMW	3 Series	325i, E46, Sedan & Hatch	325i, E46, Sedan & Hatch | 1998-Onward	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring	When fitting coil or shocks, support the RHF lower control arm to avoid breaking headlight angle sensor if fitted. The 2647 springs fit both the 4 & 6 Cyl models. PLEASE NOTE:- Coupe models are lower than other models from the factory.
BMW	3 Series	325i, E46 Wagon	325i, E46 Wagon | 1999-Onward	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring	When fitting coil or shocks, support the RHF lower control arm to avoid breaking headlight angle sensor if fitted. The 2647 springs fit both the 4 & 6 Cyl models. PLEASE NOTE:- Coupe models are lower than other models from the factory.
BMW	3 Series	328Ci, E46, Coupe	328Ci, E46, Coupe | 1999-2001	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring	When fitting coil or shocks, support the RHF lower control arm to avoid breaking headlight angle sensor if fitted. The 2647 springs fit both the 4 & 6 Cyl models. PLEASE NOTE:- Coupe models are lower than other models from the factory.
BMW	3 Series	328i, E46, Sedan & Hatch	328i, E46, Sedan & Hatch | 1998-Onward	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring	When fitting coil or shocks, support the RHF lower control arm to avoid breaking headlight angle sensor if fitted. The 2647 springs fit both the 4 & 6 Cyl models. PLEASE NOTE:- Coupe models are lower than other models from the factory.
BMW	3 Series	328i, E46 Wagon	328i, E46 Wagon | 1999-Onward	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring	When fitting coil or shocks, support the RHF lower control arm to avoid breaking headlight angle sensor if fitted. The 2647 springs fit both the 4 & 6 Cyl models. PLEASE NOTE:- Coupe models are lower than other models from the factory.
BMW	3 Series	330Cd, E46 Coupe & Convertible	330Cd, E46 Coupe & Convertible | 2000-Onward	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring	When fitting coil or shocks, support the RHF lower control arm to avoid breaking headlight angle sensor if fitted. The 2647 springs fit both the 4 & 6 Cyl models. PLEASE NOTE:- Coupe models are lower than other models from the factory.
BMW	3 Series	330Ci, E46, Coupe & Convertible	330Ci, E46, Coupe & Convertible | 2000-2007	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring	When fitting coil or shocks, support the RHF lower control arm to avoid breaking headlight angle sensor if fitted. The 2647 springs fit both the 4 & 6 Cyl models. PLEASE NOTE:- Coupe models are lower than other models from the factory.
BMW	3 Series	330D, E46, Sedan & Hatch	330D, E46, Sedan & Hatch | 1998-2009	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring	When fitting coil or shocks, support the RHF lower control arm to avoid breaking headlight angle sensor if fitted. The 2647 springs fit both the 4 & 6 Cyl models. PLEASE NOTE:- Coupe models are lower than other models from the factory.
BMW	3 Series	330D, E46, Wagon	330D, E46, Wagon | 1999-2009	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring	When fitting coil or shocks, support the RHF lower control arm to avoid breaking headlight angle sensor if fitted. The 2647 springs fit both the 4 & 6 Cyl models. PLEASE NOTE:- Coupe models are lower than other models from the factory.
BMW	3 Series	330i, E46, Wagon	330i, E46, Wagon | 2000-2005	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring	When fitting coil or shocks, support the RHF lower control arm to avoid breaking headlight angle sensor if fitted. The 2647 springs fit both the 4 & 6 Cyl models. PLEASE NOTE:- Coupe models are lower than other models from the factory.
BMW	3 Series	330i, E46, Sedan	330i, E46, Sedan | 2000-2006	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring	When fitting coil or shocks, support the RHF lower control arm to avoid breaking headlight angle sensor if fitted. The 2647 springs fit both the 4 & 6 Cyl models. PLEASE NOTE:- Coupe models are lower than other models from the factory.
