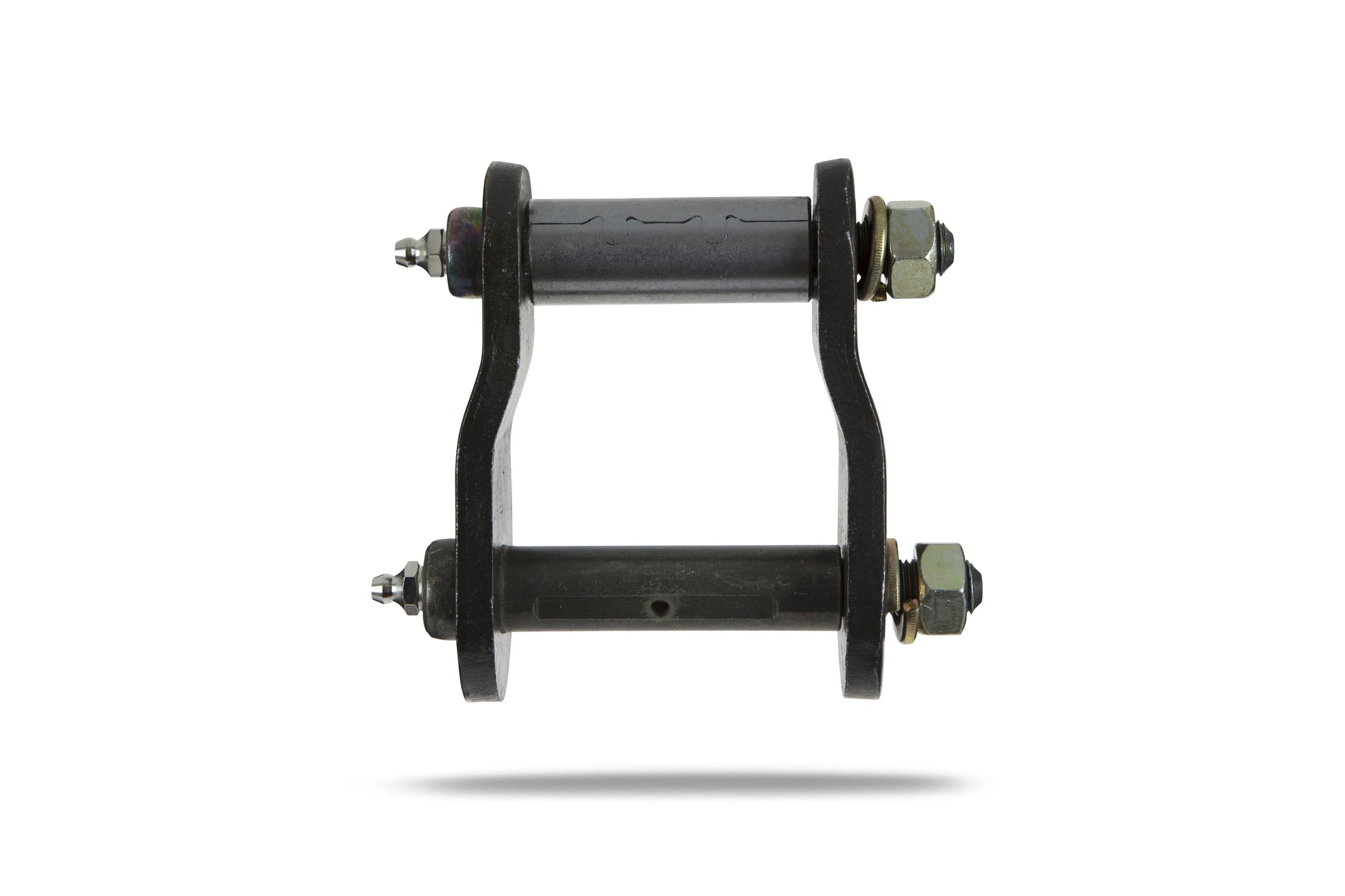

Pedders Shackle Kit

A leaf spring shackle is usually mounted at the rear of the leaf spring and this has two functions, it mounts the spring to the chassis and it allows for the vertical movement of the spring.

When a vehicle is fitted with leaf springs, they are mounted to the chassis using a fixed pin(usually at the front) and a swinging shackle (usually fitted to the rear of the spring).

As the vehicle traverses over uneven road surfaces, the leaf spring flexes. The leaf spring is designed with an amount of camber, this is the arc of the spring.

When the spring moves upwards it has a tendency to flatten out and inturn, this will increase its length, to allow for this a swinging shackle is fitted.

Pedders Shackle kits are a heavy duty replacement fitted with grease nipples to allow “in-situ” greasing of polyurethane bushes.

Features and benefits

• Heavy Duty design
• Greasable
• All backed by our 2 year / 25,000 mile warranty

Overall Width [mm]	112
Overall Height 1 [mm]	48
Bolts Greaseable	Yes
Pin Centre to Centre [mm]	70
Inner Width 1 [mm]	70
Fitting Position	Front
for centre hole diameter of 3 [mm]	1x 18
Shackle Plate Thickness 1 [mm]	8
Shackle Plate Thickness 2 [mm]	8
Type	Shackle
Pin Outer Diameter 1 [mm]	16
Pin Outer Diameter 2 [mm]	18
Overall Length [mm]	128

Compatibility
Nissan	Patrol	MQ	MQ | 1980-1983	BUSHES	F of F Shackle Bushes / Kit	Pedders Shackle Kit
Nissan	Patrol	MK	MK | 1983-1988	BUSHES	F of F Shackle Bushes / Kit	Pedders Shackle Kit
