ACL

4B1912HD-STD

4B1912HD-STD

€105,01 EUR
€105,01 EUR
In offerta Esaurito

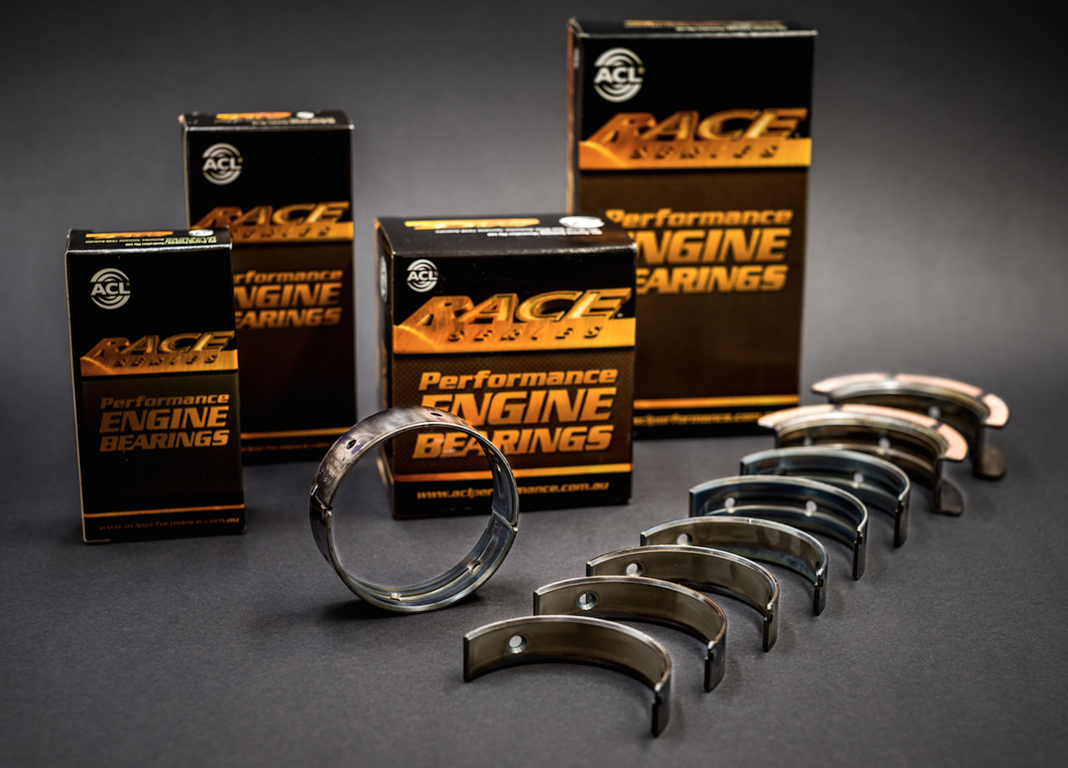

The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.

Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications and feature:

  • High strength overlay plate with reduced thickness for improved fatigue properties
  • Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
  • Increased crush for improved bearing retention
  • Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
  • Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
  • 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
  • Tight consistent wall tolerances to help you maintain consistent clearances.
  • Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.
Compatibility
Honda S2000 (AP) 2.0 Vtec 03.1999 - 12.2003 F20C1 4 4B1912HD 1997 cc DOHC 16V -STD 87.0 84.0
Honda S2000 (AP) 2.0 Vtec 03.1999 - 12.2003 F20C2 4 4B1912HD 1997 cc DOHC 16V -STD 87.0 84.0
Honda S2000 (AP) 2.2 Vtec 09.2003 - 12.2008 F22C1 4 4B1912HD 2157 cc DOHC 16V -STD 87.0 90.7
Honda Prelude IV (BB_) 2.2 VTi-R 02.1994 - 02.1997 H22A1 4 4B1912HD 2157 cc DOHC 16V -STD 87.0 90.7
Honda Prelude IV (BB_) 2.2 16V 02.1993 - 09.1996 H22A2 4 4B1912HD 2157 cc DOHC 16V -STD 87.0 90.7
Honda Prelude V (BB_) 2.2 16V 10.1996 - 10.2000 H22A2 4 4B1912HD 2157 cc DOHC 16V -STD 87.0 90.7
Honda Prelude V (BB_) 2.2 16V 10.1996 - 04.2001 H22A4 4 4B1912HD 2157 cc DOHC 16V -STD 87.0 90.7
Honda Prelude V (BB_) 2.2 16V 10.1996 - 12.2001 H22A5 4 4B1912HD 2157 cc DOHC 16V -STD 87.0 90.7
Honda Accord VI (CK, CG, CH, CF, CL) 2.2 Euro R (CL1) 06.2000 - 09.2002 H22A7 4 4B1912HD 2157 cc DOHC 16V -STD 87.0 90.7
Honda Accord VI (CK, CG, CH, CF, CL) 2.2 Type-R (CH1) 02.1999 - 12.2002 H22A7 4 4B1912HD 2157 cc DOHC 16V -STD 87.0 90.7
Honda Prelude V (BB_) 2.2 16V 10.1996 - 12.2001 H22A8 4 4B1912HD 2157 cc DOHC 16V -STD 87.0 90.7
Honda Prelude V (BB_) 2.2 16V 10.1996 - 12.2001 H22Z1 4 4B1912HD 2157 cc DOHC 16V -STD 87.0 90.7
