ACL
4B2260H-STD
4B2260H-STD
Prezzo di listino
€115,08 EUR
Prezzo di listino
Prezzo scontato
€115,08 EUR
Quantità
Impossibile caricare la disponibilità di ritiro
The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.

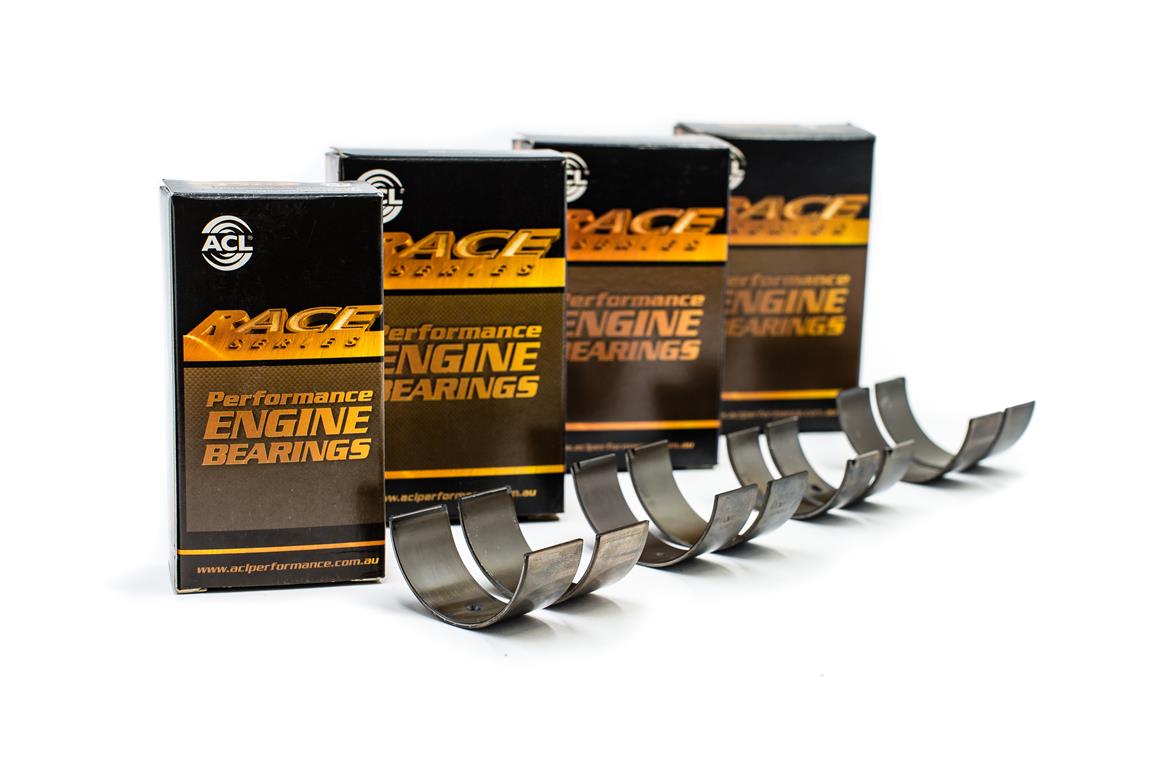

Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications and feature:
- High strength overlay plate with reduced thickness for improved fatigue properties
- Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
- Increased crush for improved bearing retention
- Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
- Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
- 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
- Tight consistent wall tolerances to help you maintain consistent clearances.
- Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.
| Tunnel [mm] | 55.996 / 56.016 |
| Shaft [mm] | 52.980 / 53.000 |
| Max. Wall | 1.487 |
| Max. Length | 24.45 |
| Half type | Identical halves |
| Compatibility | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Ford | TOURNEO | 2.0 DI 16V | 08.2000 - | ABFA | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 2.0 DI (F_E_, F_F_, F_G_) | 08.2000 - 05.2006 | ABFA | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | TRANSIT Platform/Chassis (FM_ _, FN_ _) | 2.0 DI (F_E_, F_F_) | 08.2000 - 05.2006 | ABFA | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | TRANSIT TOURNEO Bus (FC_ _) | 2.0 | 06.2000 - 03.2005 | ABFA | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | TRANSIT Van (FA_ _) | 2.0 DI (FAE_, FAF_, FAG_) | 08.2000 - 05.2006 | ABFA | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | MONDEO IV (BA7) | 2.0 TDCi | 03.2007 - 01.2015 | AZBA | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | MONDEO IV Saloon (BA7) | 2.0 TDCi | 03.2007 - 01.2015 | AZBA | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | MONDEO IV Turnier (BA7) | 2.0 TDCi | 03.2007 - 12.2012 | AZBA | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | MONDEO Hatchback (MA, MB, MC) | 2.0 TDCi | 03.2007 - 01.2015 | AZBA | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | MONDEO Saloon (MA, MB) | 2.0 TDCi | 03.2007 - 01.2015 | AZBA | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 2.0 DI (F_E_, F_F_, F_G_) | 08.2000 - 05.2006 | D3FA | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | TRANSIT Platform/Chassis (FM_ _, FN_ _) | 2.0 DI (F_E_, F_F_) | 08.2000 - 05.2006 | D3FA | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | TRANSIT TOURNEO Bus (FC_ _) | 2.0 | 06.2000 - 08.2003 | D3FA | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | TRANSIT Van (FA_ _) | 2.0 DI (FAE_, FAF_, FAG_) | 08.2000 - 05.2006 | D3FA | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | MONDEO III (B5Y) | 2.0 16V DI / TDDi / TDCi | 10.2000 - 03.2007 | D5BA | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | MONDEO III Saloon (B4Y) | 2.0 16V DI / TDDi / TDCi | 10.2000 - 03.2007 | D5BA | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | MONDEO III Turnier (BWY) | 2.0 16V DI / TDDi / TDCi | 10.2000 - 03.2007 | D5BA | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | MONDEO III (B5Y) | 2.0 16V TDDi / TDCi | 10.2000 - 03.2007 | D6BA | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | MONDEO III Saloon (B4Y) | 2.0 16V TDDi / TDCi | 10.2000 - 03.2007 | D6BA | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | MONDEO III Turnier (BWY) | 2.0 16V TDDi / TDCi | 10.2000 - 03.2007 | D6BA | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 2.0 DI (F_E_, F_F_, F_G_) | 08.2000 - 05.2006 | F3FA | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | TRANSIT Platform/Chassis (FM_ _, FN_ _) | 2.0 DI (F_E_, F_F_) | 08.2000 - 05.2006 | F3FA | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | TRANSIT Van (FA_ _) | 2.0 DI (FAE_, FAF_, FAG_) | 08.2000 - 05.2006 | F3FA | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 2.0 TDCi (F_F_, F_E_, F_G_) | 08.2002 - 05.2006 | FIFA | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | TRANSIT Platform/Chassis (FM_ _, FN_ _) | 2.0 TDCi (F_E_, F_F_) | 08.2002 - 05.2006 | FIFA | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | TRANSIT TOURNEO Bus (FC_ _) | 2.0 | 03.2002 - 03.2006 | FIFA | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | TRANSIT Van (FA_ _) | 2.0 TDCi | 08.2002 - 05.2006 | FIFA | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | MONDEO III (B5Y) | 2.0 TDCi | 10.2001 - 03.2007 | FMBA | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | MONDEO III Saloon (B4Y) | 2.0 TDCi | 10.2001 - 03.2007 | FMBA | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | MONDEO III Turnier (BWY) | 2.0 TDCi | 10.2001 - 03.2007 | FMBA | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Jaguar | X-TYPE I Estate (X400) | 2.0 D | 02.2004 - 12.2009 | FMBA | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Jaguar | X-TYPE I (X400) | 2.0 D | 07.2003 - 11.2009 | FMBA | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | MONDEO III (B5Y) | 2.0 16V TDDi / TDCi | 10.2000 - 03.2007 | HJBA | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | MONDEO III Saloon (B4Y) | 2.0 16V TDDi / TDCi | 10.2000 - 03.2007 | HJBA | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | MONDEO III Turnier (BWY) | 2.0 16V TDDi / TDCi | 10.2000 - 03.2007 | HJBA | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | MONDEO III (B5Y) | 2.0 16V TDDi / TDCi | 10.2000 - 03.2007 | HJBB | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | MONDEO III Saloon (B4Y) | 2.0 16V TDDi / TDCi | 10.2000 - 03.2007 | HJBB | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | MONDEO III Turnier (BWY) | 2.0 16V TDDi / TDCi | 10.2000 - 03.2007 | HJBB | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | MONDEO III (B5Y) | 2.0 16V TDDi / TDCi | 10.2000 - 03.2007 | HJBC | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | MONDEO III Saloon (B4Y) | 2.0 16V TDDi / TDCi | 10.2000 - 03.2007 | HJBC | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | MONDEO III Turnier (BWY) | 2.0 16V TDDi / TDCi | 10.2000 - 03.2007 | HJBC | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | MONDEO IV (BA7) | 2.0 TDCi | 11.2007 - 01.2015 | LPBA | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | MONDEO IV Saloon (BA7) | 2.0 TDCi | 11.2007 - 01.2015 | LPBA | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | MONDEO IV Turnier (BA7) | 2.0 TDCi | 11.2007 - 01.2015 | LPBA | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | MONDEO III (B5Y) | 2.0 TDCi | 10.2001 - 03.2007 | N7BA | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | MONDEO III Saloon (B4Y) | 2.0 TDCi | 10.2001 - 03.2007 | N7BA | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | MONDEO III Turnier (BWY) | 2.0 TDCi | 10.2001 - 03.2007 | N7BA | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | MONDEO III (B5Y) | 2.0 TDCi | 10.2001 - 03.2007 | N7BB | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | MONDEO III Saloon (B4Y) | 2.0 TDCi | 10.2001 - 03.2007 | N7BB | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | MONDEO III Turnier (BWY) | 2.0 TDCi | 10.2001 - 03.2007 | N7BB | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | MONDEO III (B5Y) | 2.0 16V DI / TDDi / TDCi | 10.2000 - 03.2007 | SDBA | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | MONDEO III Saloon (B4Y) | 2.0 16V DI / TDDi / TDCi | 10.2000 - 03.2007 | SDBA | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | MONDEO III Turnier (BWY) | 2.0 16V DI / TDDi / TDCi | 10.2000 - 03.2007 | SDBA | 4 | 4B2260H | 1998 cc | DOHC v16 | -STD | 86.0 | 86.0 |
| Ford | TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 2.4 DI (F_B_, F_C_, F_A_) | 01.2000 - 05.2006 | D2FA | 4 | 4B2260H | 2402 cc | DOHC v16 | -STD | 89.9 | 94.6 |
| Ford | TRANSIT Platform/Chassis (FM_ _, FN_ _) | 2.4 DI (F_A_, F_B_, F_C_, F_D_) | 01.2000 - 05.2006 | D2FA | 4 | 4B2260H | 2402 cc | DOHC v16 | -STD | 89.9 | 94.6 |
| Ford | TRANSIT Van (FA_ _) | 2.4 DI (FAA_, FAB_, FAC_, FAD_) | 01.2000 - 05.2006 | D2FA | 4 | 4B2260H | 2402 cc | DOHC v16 | -STD | 89.9 | 94.6 |
| Ford | TRANSIT Bus (VH, VJ) | 2.4 D | 01.2000 - 09.2006 | D2FA | 4 | 4B2260H | 2402 cc | DOHC v16 | -STD | 89.9 | 94.6 |
| Ford | TRANSIT Platform/Chassis (VH, VJ) | 2.4 TD | 01.2000 - 09.2006 | D2FA | 4 | 4B2260H | 2402 cc | DOHC v16 | -STD | 89.9 | 94.6 |
| Ford | TRANSIT Van (VH, VJ) | 2.4 TD | 01.2000 - 09.2006 | D2FA | 4 | 4B2260H | 2402 cc | DOHC v16 | -STD | 89.9 | 94.6 |
| Ford | TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 2.4 DI (F_B_, F_C_, F_A_) | 01.2000 - 05.2006 | D2FB | 4 | 4B2260H | 2402 cc | DOHC v16 | -STD | 89.9 | 94.6 |
| Ford | TRANSIT Platform/Chassis (FM_ _, FN_ _) | 2.4 DI (F_A_, F_B_, F_C_, F_D_) | 01.2000 - 05.2006 | D2FB | 4 | 4B2260H | 2402 cc | DOHC v16 | -STD | 89.9 | 94.6 |
| Ford | TRANSIT Van (FA_ _) | 2.4 DI (FAA_, FAB_, FAC_, FAD_) | 01.2000 - 05.2006 | D2FB | 4 | 4B2260H | 2402 cc | DOHC v16 | -STD | 89.9 | 94.6 |
| Ford | TRANSIT Platform/Chassis (FM_ _, FN_ _) | 2.4 DI (F_A_, F_B_, F_C_, F_D_) | 01.2000 - 05.2006 | D2FE | 4 | 4B2260H | 2402 cc | DOHC v16 | -STD | 89.9 | 94.6 |
| Ford | TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 2.4 DI RWD (F_B_, F_C_, F_A_) | 01.2000 - 05.2006 | D4FA | 4 | 4B2260H | 2402 cc | DOHC v16 | -STD | 89.9 | 94.6 |
| Ford | TRANSIT Platform/Chassis (FM_ _, FN_ _) | 2.4 DI (F_A_, F_B_, F_C_, F_D_) | 01.2000 - 05.2006 | D4FA | 4 | 4B2260H | 2402 cc | DOHC v16 | -STD | 89.9 | 94.6 |
| Ford | TRANSIT Van (FA_ _) | 2.4 DI RWD (FAA_, FAB_, FAC_, FAD_) | 01.2000 - 05.2006 | D4FA | 4 | 4B2260H | 2402 cc | DOHC v16 | -STD | 89.9 | 94.6 |
| Ford | TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 2.4 TDE (F_C_, F_B_, F_A_) | 07.2001 - 05.2006 | DOFA | 4 | 4B2260H | 2402 cc | DOHC v16 | -STD | 89.9 | 94.6 |
| Ford | TRANSIT Platform/Chassis (FM_ _, FN_ _) | 2.4 TDE | 07.2001 - 05.2006 | DOFA | 4 | 4B2260H | 2402 cc | DOHC v16 | -STD | 89.9 | 94.6 |
| Ford | TRANSIT Van (FA_ _) | 2.4 TDE | 07.2001 - 05.2006 | DOFA | 4 | 4B2260H | 2402 cc | DOHC v16 | -STD | 89.9 | 94.6 |
| Ford | TRANSIT Bus (VH, VJ) | 2.4 D | 07.2001 - 09.2006 | DOFA | 4 | 4B2260H | 2402 cc | DOHC v16 | -STD | 89.9 | 94.6 |
| Ford | TRANSIT Platform/Chassis (VH, VJ) | 2.4 TD | 07.2001 - 09.2006 | DOFA | 4 | 4B2260H | 2402 cc | DOHC v16 | -STD | 89.9 | 94.6 |
| Ford | TRANSIT Van (VH, VJ) | 2.4 TD | 07.2001 - 09.2006 | DOFA | 4 | 4B2260H | 2402 cc | DOHC v16 | -STD | 89.9 | 94.6 |
| Ford | TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 2.4 DI RWD (F_B_, F_C_) | 01.2000 - 05.2006 | F4FA | 4 | 4B2260H | 2402 cc | DOHC v16 | -STD | 89.9 | 94.6 |
| Ford | TRANSIT Platform/Chassis (FM_ _, FN_ _) | 2.4 DI (F_A_, F_B_, F_C_, F_D_) | 01.2000 - 05.2006 | F4FA | 4 | 4B2260H | 2402 cc | DOHC v16 | -STD | 89.9 | 94.6 |
| Ford | TRANSIT Van (FA_ _) | 2.4 DI RWD (FAA_, FAB_, FAC_, FAD_) | 01.2000 - 05.2006 | F4FA | 4 | 4B2260H | 2402 cc | DOHC v16 | -STD | 89.9 | 94.6 |
| Ford | TRANSIT Van (FA_ _) | 2.4 TD | 08.2000 - 08.2003 | F4FA | 4 | 4B2260H | 2402 cc | DOHC v16 | -STD | 89.9 | 94.6 |
| Ford | TRANSIT Bus (VH, VJ) | 2.4 D | 07.2001 - 09.2006 | F4FA | 4 | 4B2260H | 2402 cc | DOHC v16 | -STD | 89.9 | 94.6 |
| Ford | TRANSIT Platform/Chassis (VH, VJ) | 2.4 TD | 01.2000 - 09.2006 | F4FA | 4 | 4B2260H | 2402 cc | DOHC v16 | -STD | 89.9 | 94.6 |
| Mazda | BT-50 II pick-up (B22, B32, UP, UR) | 2.2 MZ-CD | 11.2011 - 06.2020 | P4-AT | 4 | 4B2260H | 2198 cc | DOHC v16 | -STD | 86.0 | 94.6 |
| Mazda | BT-50 II pick-up (B22, B32, UP, UR) | 2.2 MZ-CD 4WD | 11.2011 - 11.2020 | P4-AT | 4 | 4B2260H | 2198 cc | DOHC v16 | -STD | 86.0 | 94.6 |
| Ford | RANGER pick-up (PX) | 2.2 TDdi (PX) | 11.2011 - 06.2015 | P4-AT | 4 | 4B2260H | 2198 cc | DOHC v16 | -STD | 86.0 | 94.6 |
| Ford | RANGER pick-up (PX) | 2.2 TDdi (PXII, PXIII) | 06.2015 - 05.2022 | P4-AT | 4 | 4B2260H | 2198 cc | DOHC v16 | -STD | 86.0 | 94.6 |
