5B5562H-.25

5B5562H-.25

€138,13 EUR
€138,13 EUR
In offerta Esaurito

The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.

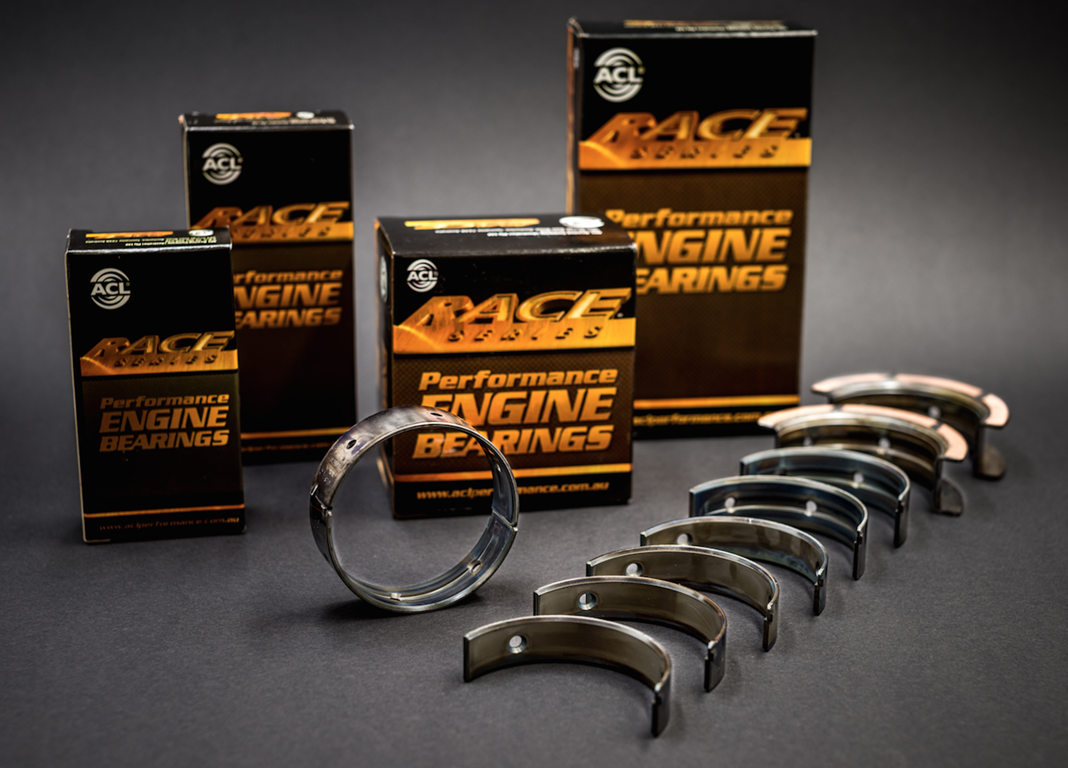

Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications and feature:

  • High strength overlay plate with reduced thickness for improved fatigue properties
  • Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
  • Increased crush for improved bearing retention
  • Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
  • Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
  • 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
  • Tight consistent wall tolerances to help you maintain consistent clearances.
  • Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.
Tunnel [mm] 50.600 / 50.619
Shaft [mm 47.758 / 47.778
Max. Wall 1.405
Max. Length 17.4
Half type Identical halves
Compatibility
Audi A3 Sportback (8PA) RS3 quattro 2011 - 2012 CEPA 5 5B5562H 2480 cc DOHC 20V -.25 Full set of bearings 82.5 92.8
Audi A3 Sportback (8VA, 8VF) RS3 quattro 2015 - CZGB 5 5B5562H 2480 cc DOHC 20V -.25 Full set of bearings 82.5 92.8
Audi Q3 (8UB, 8UG) RS 2.5 quattro 2013 - 2018 CZGA 5 5B5562H 2480 cc DOHC 20V -.25 Full set of bearings 82.5 92.8
Audi Q3 (8UB, 8UG) RS 2.5 quattro 2013 - 2018 CTSA 5 5B5562H 2480 cc DOHC 20V -.25 Full set of bearings 82.5 92.8
Audi Q3 (8UB, 8UG) RS performance 2.5 quattro 2015 - 2018 CZGB 5 5B5562H 2480 cc DOHC 20V -.25 Full set of bearings 82.5 92.8
Audi TT (8J3) 2.5 RS quattro 2009 - 2014 CEPA 5 5B5562H 2480 cc DOHC 20V -.25 Full set of bearings 82.5 92.8
Audi TT (8J3) 2.5 RS quattro 2011 - 2014 CEPB 5 5B5562H 2480 cc DOHC 20V -.25 Full set of bearings 82.5 92.8
Audi TT Roadster (8J9) 2.5 RS quattro 2009 - 2014 CEPA 5 5B5562H 2480 cc DOHC 20V -.25 Full set of bearings 82.5 92.8
Audi TT Roadster (8J9) 2.5 RS quattro 2012 - 2014 CEPB 5 5B5562H 2480 cc DOHC 20V -.25 Full set of bearings 82.5 92.8
Audi A3 Sportback (8VA, 8VF) RS3 quattro 04.2017 - 10.2020 DAZA 5 5B5562H 2480 cc DOHC 20V -.25 Full set of bearings 82.5 92.8
Audi A3 Limousine (8VS, 8VM) RS3 quattro 04.2017 - 10.2020 DAZA 5 5B5562H 2480 cc DOHC 20V -.25 Full set of bearings 82.5 92.8
Audi Q3 (F3B) 2.5 RS quattro 10.2019 - DAZA 5 5B5562H 2480 cc DOHC 20V -.25 Full set of bearings 82.5 92.8
Audi Q3 Sportback (F3N) 2.5 RS quattro 10.2019 - DAZA 5 5B5562H 2480 cc DOHC 20V -.25 Full set of bearings 82.5 92.8
Audi TT (FV3, FVP) 2.5 RS quattro 10.2016 - DAZA 5 5B5562H 2480 cc DOHC 20V -.25 Full set of bearings 82.5 92.8
Audi TT Roadster (FV9, FVR) 2.5 RS quattro 10.2016 - DAZA 5 5B5562H 2480 cc DOHC 20V -.25 Full set of bearings 82.5 92.8
Audi A3 Sportback (8VA, 8VF) RS3 quattro 04.2017 - 10.2020 DNWA 5 5B5562H 2480 cc DOHC 20V -.25 Full set of bearings 82.5 92.8
Audi A3 Limousine (8VS, 8VM) RS3 quattro 04.2017 - 10.2020 DNWA 5 5B5562H 2480 cc DOHC 20V -.25 Full set of bearings 82.5 92.8
Audi Q3 (F3B) 2.5 RS quattro 10.2019 - DNWA 5 5B5562H 2480 cc DOHC 20V -.25 Full set of bearings 82.5 92.8
Audi Q3 Sportback (F3N) 2.5 RS quattro 10.2019 - DNWA 5 5B5562H 2480 cc DOHC 20V -.25 Full set of bearings 82.5 92.8
Audi TT (FV3, FVP) 2.5 RS quattro 10.2016 - DNWA 5 5B5562H 2480 cc DOHC 20V -.25 Full set of bearings 82.5 92.8
Audi TT Roadster (FV9, FVR) 2.5 RS quattro 10.2016 - DNWA 5 5B5562H 2480 cc DOHC 20V -.25 Full set of bearings 82.5 92.8
