ACL
5M2908H-.025
5M2908H-.025
Prezzo di listino
€225,21 EUR
Prezzo di listino
Prezzo scontato
€225,21 EUR
Quantità
Impossibile caricare la disponibilità di ritiro

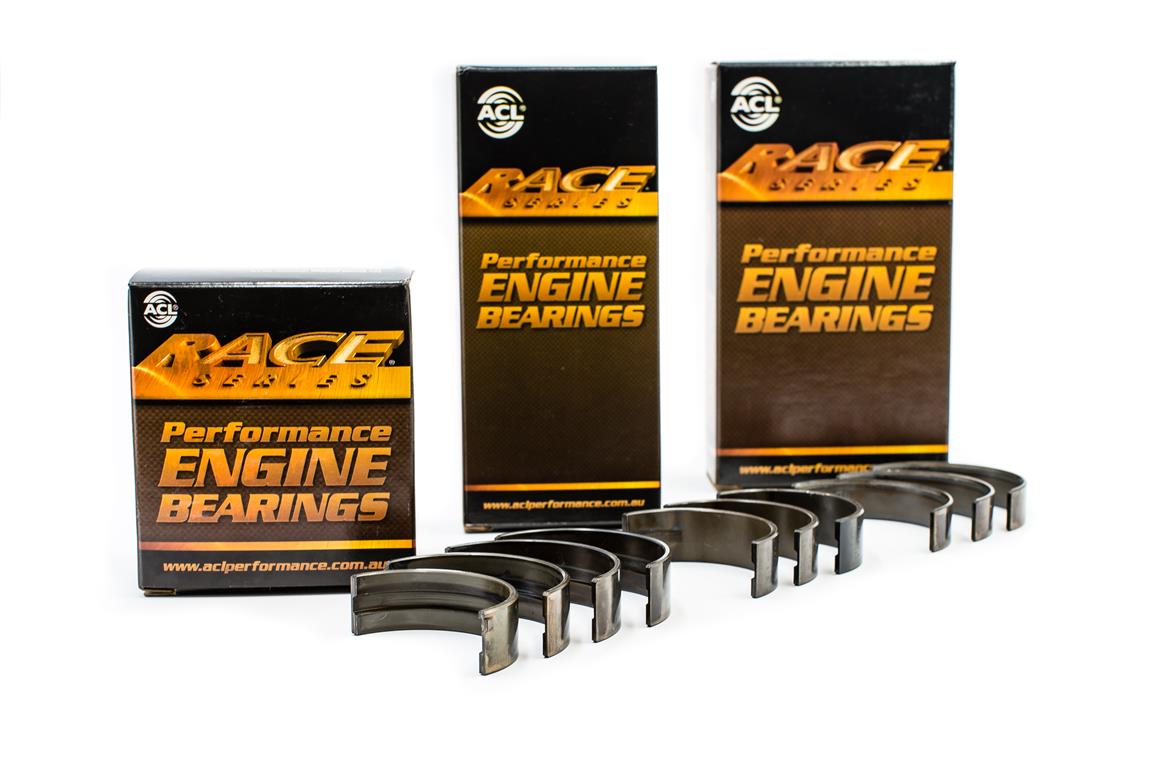

The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.
Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications and feature:
- High strength overlay plate with reduced thickness for improved fatigue properties
- Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
- Increased crush for improved bearing retention
- Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
- Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
- 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
- Tight consistent wall tolerances to help you maintain consistent clearances.
- Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.
| Tunnel [mm] | 56.717/56.735 |
| Shaft [mm] | 52.991/53.000 |
| Max. Wall | 1.843 |
| Max. Length | 20.75 |
| Half type | Identical halves |
| Compatibility | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Alfa Romeo | 145 | 1.9 TD | 10.1994 - 02.1999 | AR 33601 | 4 | 5M2908H | 1929 cc | SOHC 8V | -.025 | 82.6 | 90.0 |
| Alfa Romeo | 146 | 1.9 TD | 12.1994 - 02.1999 | AR 33601 | 4 | 5M2908H | 1929 cc | SOHC 8V | -.025 | 82.6 | 90.0 |
| Alfa Romeo | 145 | 1.9 TD | 07.1994 - 02.1999 | AR 67501 | 4 | 5M2908H | 1929 cc | SOHC 8V | -.025 | 82.6 | 90.0 |
| Alfa Romeo | 146 | 1.9 TD | 12.1994 - 02.1999 | AR 67501 | 4 | 5M2908H | 1929 cc | SOHC 8V | -.025 | 82.6 | 90.0 |
| Alfa Romeo | 155 | 1.9 TD | 04.1993 - 12.1997 | AR 67501 | 4 | 5M2908H | 1929 cc | SOHC 8V | -.025 | 82.6 | 90.0 |
| Alfa Romeo | all | 1.9 TD | 04.1993 - 02.1999 | AR 67502 | 4 | 5M2908H | 1929 cc | SOHC 8V | -.025 | 82.6 | 90.0 |
| Alfa Romeo | 155 | 2.0 16V Turbo Q4 | 01.1992 - 12.1997 | AR 67203 | 4 | 5M2908H | 1995 cc | DOHC 16V | -.025 | 84.0 | 90.0 |
| Alfa Romeo | 164 | 2.0 Turbo | 10.1987 - 09.1998 | AR 06476 | 4 | 5M2908H | 1995 cc | DOHC 16V | -.025 | 84.0 | 90.0 |
| Fiat | Tempra | 1.9 TD | 05.1990 - 08.1996 | 160 A6.000 | 4 | 5M2908H | 1929 cc | SOHC 8V | -.025 | 82.6 | 90.0 |
| Fiat | Tipo | 1.9 TD | 09.1990 - 04.1995 | 160 A6.000 | 4 | 5M2908H | 1929 cc | SOHC 8V | -.025 | 82.6 | 90.0 |
| Fiat | Tipo | 1.9 TD | 09.1990 - 04.1995 | 160 A6.046 | 4 | 5M2908H | 1929 cc | SOHC 8V | -.025 | 82.6 | 90.0 |
| Fiat | Tempra | 1.9 TD | 03.1992 - 08.1996 | 160 B6.046 | 4 | 5M2908H | 1929 cc | SOHC 8V | -.025 | 82.6 | 90.0 |
| Fiat | Tipo | 1.9 TD | 03.1992 - 06.1993 | 160 B6.046 | 4 | 5M2908H | 1929 cc | SOHC 8V | -.025 | 82.6 | 90.0 |
| Fiat | Ducato | 1.9 TD | 03.1994- 04.2002 | 230 A3.000 | 4 | 5M2908H | 1929 cc | SOHC 8V | -.025 | 82.6 | 90.0 |
| Fiat | Ducato | 1.9 TD | 08.1994- 04.2002 | 230 A4.000 | 4 | 5M2908H | 1929 cc | SOHC 8V | -.025 | 82.6 | 90.0 |
| Fiat | Ducato | 1.9 TD | 03.1989- 03.1994 | 280 A1.000 | 4 | 5M2908H | 1929 cc | SOHC 8V | -.025 | 82.6 | 90.0 |
| Fiat | Uno | 1.9D | 09.1989- 03.1994 | 149 B5.046 | 4 | 5M2908H | 1929 cc | SOHC 8V | -.025 | 82.6 | 90.0 |
| Fiat | all | 1.9 TD | 03.1988 - 06.1990 | 154 B.000 | 4 | 5M2908H | 1929 cc | SOHC 8V | -.025 | 82.6 | 90.0 |
| Fiat | Croma | 1.9 TD | 05.1989- 10.1992 | 154 C6.000 | 4 | 5M2908H | 1929 cc | SOHC 8V | -.025 | 82.6 | 90.0 |
| Fiat | Croma | 1.9 TD | 11.1992- 12.1996 | 154 D1.000 | 4 | 5M2908H | 1929 cc | SOHC 8V | -.025 | 82.6 | 90.0 |
| Fiat | Fiorino | 1.7 TD | 11.1996 - 05.2001 | 147 D7.000 | 4 | 5M2908H | 1698 cc | SOHC 8V | -.025 | 82.6 | 79.2 |
| Fiat | Fiorino | 1.7 TD | 01.2004 - 12.2005 | 176 A3.000 | 4 | 5M2908H | 1698 cc | SOHC 8V | -.025 | 82.6 | 79.2 |
| Fiat | Palio | 1.7 TD | 04.1996- 10.2003 | 176 A3.000 | 4 | 5M2908H | 1698 cc | SOHC 8V | -.025 | 82.6 | 79.2 |
| Fiat | Punto | 1.7 TD | 01.1994 - 09.1999 | 176 A3.000 | 4 | 5M2908H | 1698 cc | SOHC 8V | -.025 | 82.6 | 79.2 |
| Fiat | Siena | 1.7 TD | 03.2002- 12.2009 | 176 A3.000 | 4 | 5M2908H | 1698 cc | SOHC 8V | -.025 | 82.6 | 79.2 |
| Fiat | Strada | 1.7 TD | 06.1999 - 01.2010 | 176 A3.000 | 4 | 5M2908H | 1698 cc | SOHC 8V | -.025 | 82.6 | 79.2 |
| Fiat | Palio | 1.7 TD | 02.1997 - 03.2010 | 176 A5.000 | 4 | 5M2908H | 1698 cc | SOHC 8V | -.025 | 82.6 | 79.2 |
| Fiat | Punto | 1.7 TD | 01.1994 - 09.1999 | 176 A5.000 | 4 | 5M2908H | 1698 cc | SOHC 8V | -.025 | 82.6 | 79.2 |
| Fiat | Punto | 1.7 TD | 09.1996 - 09.1999 | 176 B7.000 | 4 | 5M2908H | 1698 cc | SOHC 8V | -.025 | 82.6 | 79.2 |
| Fiat | Siena | 1.7 TD | 05.1999- 12.2009 | 176 B7.000 | 4 | 5M2908H | 1698 cc | SOHC 8V | -.025 | 82.6 | 79.2 |
| Fiat | Siena | 1.7 TD | 05.1999- 12.2009 | 178 C9.066 | 4 | 5M2908H | 1698 cc | SOHC 8V | -.025 | 82.6 | 79.2 |
| Fiat | Croma | 2.0 | 12.1985- 09.1992 | 154 A1.000 | 4 | 5M2908H | 1995 cc | DOHC 8V | -.025 | 84.0 | 90.0 |
| Fiat | Croma | 2.0 | 01.1991- 09.1992 | 154 C5.000 | 4 | 5M2908H | 1995 cc | DOHC 8V | -.025 | 84.0 | 90.0 |
| Fiat | Croma | 2.0 Turbo | 12.1985- 06.1990 | 154 A2.000 | 4 | 5M2908H | 1995 cc | DOHC 8V | -.025 | 84.0 | 90.0 |
| Fiat | Tempra | 2.0 Turbo | 11.1994 - 05.1998 | 154 C4.000 | 4 | 5M2908H | 1995 cc | DOHC 8V | -.025 | 84.0 | 90.0 |
| Fiat | Croma | 2.0 Turbo | 06.1987- 08.1996 | 154 C4.046 | 4 | 5M2908H | 1995 cc | DOHC 8V | -.025 | 84.0 | 90.0 |
| Fiat | Croma | 2.0 Turbo | 11.1986- 08.1996 | 834 C.146 | 4 | 5M2908H | 1995 cc | DOHC 8V | -.025 | 84.0 | 90.0 |
| Fiat | Regata | 1.9 TD | 05.1986 - 07.1989 | 831 D1.000 | 4 | 5M2908H | 1929 cc | SOHC 8V | -.025 | 82.6 | 90.0 |
| Fiat | Ritmo | 1.9 TD | 12.1985 - 12.1987 | 831 D1.000 | 4 | 5M2908H | 1929 cc | SOHC 8V | -.025 | 82.6 | 90.0 |
| Fiat | Uno | 1.4 TD | 10.1986- 10.1990 | 146 B.000 | 4 | 5M2908H | 1367 cc | SOHC 8V | -.025 | 78.0 | 71.5 |
| Fiat | Uno | 1.4 TD | 10.1986- 10.1990 | 146 B3.000 | 4 | 5M2908H | 1367 cc | SOHC 8V | -.025 | 78.0 | 71.5 |
| Fiat | Croma | 2.0 | 08.1992- 08.1996 | 154 E1.000 | 4 | 5M2908H | 1995 cc | DOHC 16V | -.025 | 84.0 | 90.0 |
| Fiat | Tempra | 2.0 | 10.1995 - 12.1998 | 154 E1.000 | 4 | 5M2908H | 1995 cc | DOHC 16V | -.025 | 84.0 | 90.0 |
| Fiat | Tipo | 1.8 | 11.1989 - 06.1992 | 160 A5.000 | 4 | 5M2908H | 1456 cc | DOHC 16V | -.025 | 84.0 | 79.2 |
| Fiat | Tipo | 2.0 | 07.1991 - 04.1995 | 160 A8.046 | 4 | 5M2908H | 1995 cc | DOHC 16V | -.025 | 84.0 | 90.0 |
| Fiat | Coupe | 2.0 Turbo | 11.1993 - 08.1996 | 175 A1.000 | 4 | 5M2908H | 1995 cc | DOHC 16V | -.025 | 84.0 | 90.0 |
| Fiat | Coupe | 2.0 16V | 11.1993 - 08.1996 | 836 A3.000 | 4 | 5M2908H | 1995 cc | DOHC 16V | -.025 | 84.0 | 90.0 |
| Fiat | Tipo | 2.0 16V | 03.1993 - 04.1995 | 836 A3.000 | 4 | 5M2908H | 1995 cc | DOHC 16V | -.025 | 84.0 | 90.0 |
| Lancia | Delta | 2.0 16V Turbo | 07.1996 - 08.1999 | 175 A4.000 | 4 | 5M2908H | 1995 cc | DOHC 16V | -.025 | 84.0 | 90.0 |
| Lancia | Delta | 2.0 16V HF Integrale | 03.1989 - 09.1991 | 831 D5.000 | 4 | 5M2908H | 1995 cc | DOHC 16V | -.025 | 84.0 | 90.0 |
| Lancia | Delta | 2.0 16V HF Evo I Integrale | 09.1991 - 12.1992 | 831 E5.000 | 4 | 5M2908H | 1995 cc | DOHC 16V | -.025 | 84.0 | 90.0 |
| Lancia | Delta | 2.0 16V HF Evo II Integrale | 06.1993 - 01.1994 | 831 E5.000 | 4 | 5M2908H | 1995 cc | DOHC 16V | -.025 | 84.0 | 90.0 |
| Lancia | Delta | 2.0 16V HF Evo Integrale | 06.1993 - 01.1994 | 831 E5.046 | 4 | 5M2908H | 1995 cc | DOHC 16V | -.025 | 84.0 | 90.0 |
| Lancia | Thema | 2000 16V Turbo | 12.1988 - 06.1990 | 834 C1.000 | 4 | 5M2908H | 1995 cc | DOHC 16V | -.025 | 84.0 | 90.0 |
| Lancia | Thema | 2000 16V Turbo | 04.1989 - 05.1993 | 834 C1.246 | 4 | 5M2908H | 1995 cc | DOHC 16V | -.025 | 84.0 | 90.0 |
| Lancia | Thema | 2000 16V | 08.1992 - 12.1993 | 834 F1.000 | 4 | 5M2908H | 1995 cc | DOHC 16V | -.025 | 84.0 | 90.0 |
| Lancia | Thema | 2000 16V Turbo | 10.1992 - 07.1994 | 834 F2.000 | 4 | 5M2908H | 1995 cc | DOHC 16V | -.025 | 84.0 | 90.0 |
| Lancia | Dedra | 2.0 Turbo | 04.1991 - 07.1999 | 835 A8.046 | 4 | 5M2908H | 1995 cc | SOHC 8V | -.025 | 84.0 | 90.0 |
| Lancia | Delta II | 2.0 16V Turbo | 06.1993 - 08.1999 | 836 A2.000 | 4 | 5M2908H | 1995 cc | DOHC 16V | -.025 | 84.0 | 90.0 |
| Lancia | Dedra | 2.0 16V | 07.1994 - 07.1999 | 836 A3.000 | 4 | 5M2908H | 1995 cc | DOHC 16V | -.025 | 84.0 | 90.0 |
| Lancia | Delta II | 2.0 16V | 06.1993 - 08.1999 | 836 A3.000 | 4 | 5M2908H | 1995 cc | DOHC 16V | -.025 | 84.0 | 90.0 |
| Lancia | Kappa | 2.0 16V Turbo | 02.1995 - 10.2001 | 836 A4.000 | 4 | 5M2908H | 1995 cc | DOHC 16V | -.025 | 84.0 | 90.0 |
| Lancia | Delta | 1.6 HF Turbo | 10.1983 - 12.1986 | 831 A7.000 | 4 | 5M2908H | 1995 cc | SOHC 8V | -.025 | 84.0 | 71.5 |
| Lancia | Delta | 1.6 HF Turbo | 08.1986 - 08.1988 | 831 B3.000 | 4 | 5M2908H | 1995 cc | SOHC 8V | -.025 | 84.0 | 71.5 |
| Lancia | Delta | 1.6 HF Turbo | 04.1987 - 03.1989 | 831 B7.046 | 4 | 5M2908H | 1995 cc | SOHC 8V | -.025 | 84.0 | 71.5 |
| Lancia | Prisma | 1.9 D | 01.1983 - 02.1992 | 831 D.000 | 4 | 5M2908H | 1929 cc | SOHC 8V | -.025 | 82.6 | 90.0 |
| Lancia | Delta | 1.9 TD | 10.1986 - 12.1989 | 831 D1.000 | 4 | 5M2908H | 1929 cc | SOHC 8V | -.025 | 82.6 | 90.0 |
| Lancia | Prisma | 1.9 TD | 05.1985 - 12.1989 | 831 D1.000 | 4 | 5M2908H | 1929 cc | SOHC 8V | -.025 | 82.6 | 90.0 |
| Lancia | Delta | 2.0 8V HF Integrale | 11.1986 - 08.1988 | 831 B5.000 | 4 | 5M2908H | 1995 cc | SOHC 8V | -.025 | 84.0 | 90.0 |
| Lancia | Delta | 2.0 8V HF Integrale | 10.1987 - 12.1991 | 831 C5.000 | 4 | 5M2908H | 1995 cc | SOHC 8V | -.025 | 84.0 | 90.0 |
| Lancia | Delta | 2.0 8V HF Integrale | 12.1986 - 12.1992 | 831 C5.046 | 4 | 5M2908H | 1995 cc | SOHC 8V | -.025 | 84.0 | 90.0 |
| Lancia | Thema | 2000 8V Turbo | 11.1984 - 07.1994 | 834 C.000 | 4 | 5M2908H | 1995 cc | SOHC 8V | -.025 | 84.0 | 90.0 |
| Lancia | Thema | 2000 8V Turbo | 07.1986 - 03.1992 | 834 C.146 | 4 | 5M2908H | 1995 cc | SOHC 8V | -.025 | 84.0 | 90.0 |
| Lancia | Dedra | 2.0 8V | 09.1989 - 07.1999 | 835 A5.046 | 4 | 5M2908H | 1995 cc | SOHC 8V | -.025 | 84.0 | 90.0 |
| Lancia | Dedra | 2.0 8V Turbo Integrale | 04.1990 - 08.1991 | 835 A7.000 | 4 | 5M2908H | 1995 cc | SOHC 8V | -.025 | 84.0 | 90.0 |
| Lancia | Dedra | 2.0 8V Turbo Integrale | 11.1990 - 07.1994 | 835 A7.046 | 4 | 5M2908H | 1995 cc | SOHC 8V | -.025 | 84.0 | 90.0 |
| Lancia | Dedra | 2.0 8V Turbo | 11.1990 - 07.1994 | 835 A8.000 | 4 | 5M2908H | 1995 cc | SOHC 8V | -.025 | 84.0 | 90.0 |
| Lancia | Dedra | 1.9 TD | 04.1989 - 07.1999 | 160 D1.000 | 4 | 5M2908H | 1929 cc | SOHC 8V | -.025 | 82.6 | 90.0 |
| Lancia | Delta II | 1.9 TD | 10.1994 - 08.1999 | 160 D1.000 | 4 | 5M2908H | 1929 cc | SOHC 8V | -.025 | 82.6 | 90.0 |
| Lancia | Dedra | 1.9 TD | 04.1989 - 07.1999 | 835 A4.000 | 4 | 5M2908H | 1929 cc | SOHC 8V | -.025 | 82.6 | 90.0 |
| Lancia | Delta II | 1.9 TD | 10.1994 - 08.1999 | 835 A4.000 | 4 | 5M2908H | 1929 cc | SOHC 8V | -.025 | 82.6 | 90.0 |
| Lancia | Dedra | 1.9 TD | 04.1989 - 07.1999 | 835 A4.046 | 4 | 5M2908H | 1929 cc | SOHC 8V | -.025 | 82.6 | 90.0 |
