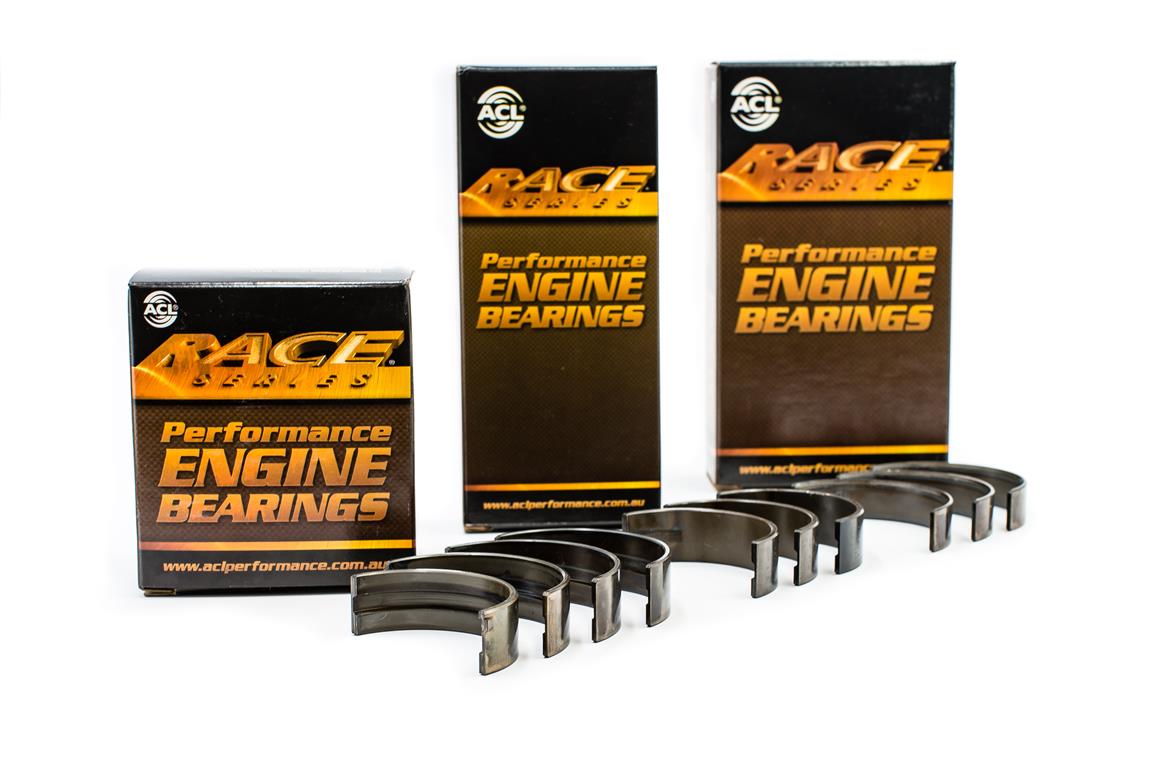

ACL
5M5563H-.25
5M5563H-.25
Prezzo di listino
€176,61 EUR
Prezzo di listino
Prezzo scontato
€176,61 EUR
Quantità
Impossibile caricare la disponibilità di ritiro
The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.
Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications and feature:
- High strength overlay plate with reduced thickness for improved fatigue properties
- Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
- Increased crush for improved bearing retention
- Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
- Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
- 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
- Tight consistent wall tolerances to help you maintain consistent clearances.
- Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.
| Tunnel [mm] | 63.000/63.019 |
| Shaft [mm] | 57.958/57.978 |
| Max. Wall | 2.504 |
| Max. Length | 15.5 |
| Half type | Upper & lower |
| Note | Suits EA888 Gen 2 engines. |
| Compatibility | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Audi | A3 (8P1) | 1.8 TFSI | 11.2006 - 08.2012 | BYT | 4 | 5M5563H | 1798 cc | DOHC 16V | -.25 | 82.5 | 84.2 |
| Audi | A3 Sportback (8PA) | 1.8 TFSI | 11.2006 - 03.2013 | BYT | 4 | 5M5563H | 1798 cc | DOHC 16V | -.25 | 82.5 | 84.2 |
| Seat | Altea (5P1) | 1.8 TSI | 01.2007 - 07.2015 | BYT | 4 | 5M5563H | 1798 cc | DOHC 16V | -.25 | 82.5 | 84.2 |
| Seat | Altea XL (5P5, 5P8) | 1.8 TSI | 01.2007 - 07.2015 | BYT | 4 | 5M5563H | 1798 cc | DOHC 16V | -.25 | 82.5 | 84.2 |
| Seat | Toledo III (5P2) | 1.8 TSI | 01.2007 - 05.2009 | BYT | 4 | 5M5563H | 1798 cc | DOHC 16V | -.25 | 82.5 | 84.2 |
| Audi | A3 (8P1) | 1.8 TFSI | 11.2006 - 08.2012 | BZB | 4 | 5M5563H | 1798 cc | DOHC 16V | -.25 | 82.5 | 84.2 |
| Audi | A3 Convertible (8P7) | 1.8 TFSI | 04.2008 - 05.2013 | BZB | 4 | 5M5563H | 1798 cc | DOHC 16V | -.25 | 82.5 | 84.2 |
| Audi | A3 Sportback (8PA) | 1.8 TFSI | 11.2006 - 03.2013 | BZB | 4 | 5M5563H | 1798 cc | DOHC 16V | -.25 | 82.5 | 84.2 |
| Seat | Altea (5P1) | 1.8 TSI | 01.2007 - 07.2015 | BZB | 4 | 5M5563H | 1798 cc | DOHC 16V | -.25 | 82.5 | 84.2 |
| Seat | Altea XL (5P5, 5P8) | 1.8 TSI | 01.2007 - 07.2015 | BZB | 4 | 5M5563H | 1798 cc | DOHC 16V | -.25 | 82.5 | 84.2 |
| Seat | Leon (1P1) | 1.8 TSI | 06.2007 - 12.2012 | BZB | 4 | 5M5563H | 1798 cc | DOHC 16V | -.25 | 82.5 | 84.2 |
| Seat | Toledo III (5P2) | 1.8 TSI | 01.2007 - 05.2009 | BZB | 4 | 5M5563H | 1798 cc | DOHC 16V | -.25 | 82.5 | 84.2 |
| Skoda | Octavia II (1Z3) | 1.8 TSI | 06.2007 - 04.2013 | BZB | 4 | 5M5563H | 1798 cc | DOHC 16V | -.25 | 82.5 | 84.2 |
| Skoda | Octavia II Combi (1Z5) | 1.8 TSI | 06.2007 - 04.2013 | BZB | 4 | 5M5563H | 1798 cc | DOHC 16V | -.25 | 82.5 | 84.2 |
| Skoda | Superb II (3T4) | 1.8 TSI | 03.2008 - 05.2015 | BZB | 4 | 5M5563H | 1798 cc | DOHC 16V | -.25 | 82.5 | 84.2 |
| Volkswagen | Passat B6 (3C2) | 1.8 TSI | 05.2007 - 07.2010 | BZB | 4 | 5M5563H | 1798 cc | DOHC 16V | -.25 | 82.5 | 84.2 |
| Volkswagen | Passat B6 Variant (3C5) | 1.8 TSI | 05.2007 - 10.2011 | BZB | 4 | 5M5563H | 1798 cc | DOHC 16V | -.25 | 82.5 | 84.2 |
| Volkswagen | Passat CC B6 (357) | 1.8 TSI | 06.2008 - 01.2012 | BZB | 4 | 5M5563H | 1798 cc | DOHC 16V | -.25 | 82.5 | 84.2 |
| Audi | A4 B8 (8K2) | 1.8 TFSI | 01.2008 - 12.2015 | CABA | 4 | 5M5563H | 1798 cc | DOHC 16V | -.25 | 82.5 | 84.2 |
| Audi | A4 B8 (8K2) | 1.8 TFSI | 11.2007 - 03.2012 | CABB | 4 | 5M5563H | 1798 cc | DOHC 16V | -.25 | 82.5 | 84.2 |
| Audi | A4 B8 Avant (8K5) | 1.8 TFSI | 11.2007 - 03.2012 | CABB | 4 | 5M5563H | 1798 cc | DOHC 16V | -.25 | 82.5 | 84.2 |
| Volkswagen | Passat B6 (3C2) | 1.8 TSI | 11.2009 - 07.2010 | CGYA | 4 | 5M5563H | 1798 cc | DOHC 16V | -.25 | 82.5 | 84.2 |
| Volkswagen | Passat B6 Variant (3C5) | 1.8 TSI | 11.2009 - 11.2010 | CGYA | 4 | 5M5563H | 1798 cc | DOHC 16V | -.25 | 82.5 | 84.2 |
| Volkswagen | Passat CC B6 (357) | 1.8 TSI | 11.2008 - 05.2010 | CGYA | 4 | 5M5563H | 1798 cc | DOHC 16V | -.25 | 82.5 | 84.2 |
| Audi | A4 B8 (8K2) | 2.0 TFSI | 06.2008 - 12.2015 | CAEA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A5 Convertible (8F7) | 2.0 TFSI | 03.2009 - 03.2012 | CAEA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A4 B8 (8K2) | 2.0 TFSI | 06.2008 - 05.2013 | CAEB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A4 B8 (8K2) | 2.0 TFSI quattro | 06.2008 - 12.2015 | CAEB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A4 B8 Avant (8K5) | 2.0 TFSI | 06.2008 - 05.2013 | CAEB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A4 B8 Avant (8K5) | 2.0 TFSI quattro | 06.2008 - 12.2015 | CAEB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A5 (8T3) | 2.0 TFSI quattro | 06.2008 - 01.2017 | CAEB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A5 Convertible (8F7) | 2.0 TFSI | 03.2009 - 06.2014 | CAEB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A5 Convertible (8F7) | 2.0 TFSI quattro | 03.2009 - 01.2017 | CAEB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A6 C7 (4G2, 4GC) | 2.0 TFSI | 03.2011 - 05.2013 | CAEB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A6 C7 (4G2, 4GC) | 2.0 TFSI quattro | 05.2012 - 09.2018 | CAEB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | Q5 (8RB) | 2.0 TFSI quattro | 11.2008 - 09.2012 | CAEB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| KTM | X-Bow Convertible | 2.0 | 07.2008 - | CAEB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A4 B8 (8K2) | 2.0 TFSI | 05.2013 - 12.2015 | CAED | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A4 B8 (8K2) | 2.0 TFSI quattro | 05.2013 - 12.2015 | CAED | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A5 (8T3) | 2.0 TFSI quattro | 03.2012 - 01.2017 | CAED | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A5 Convertible (8F7) | 2.0 TFSI | 05.2013 - 12.2014 | CAED | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A6 C7 (4G2, 4GC) | 2.0 TFSI | 05.2013 - 09.2018 | CAED | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A5 Convertible (8F7) | 2.0 TFSI quattro | 09.2013 - 01.2017 | CAED | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A6 C7 (4G2, 4GC) | 2.0 TFSI quattro | 05.2013 - 09.2018 | CAED | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Tiguan (5N_) | 2.0 TSI 4motion | 09.2007 - 07.2018 | CAWA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Jetta III (1K2) | 2.0 TSI | 07.2008 - 10.2010 | CAWA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Tiguan (5N_) | 2.0 TSI | 06.2008 - 05.2009 | CAWA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A3 (8P1) | 2.0 TFSI | 09.2004 - 08.2012 | CAWB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A3 Convertible (8P7) | 2.0 TFSI | 04.2008 - 05.2013 | CAWB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A3 Sportback (8PA) | 2.0 TFSI | 09.2004 - 03.2013 | CAWB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Eos (1F7, 1F8) | 2.0 TSI | 03.2006 - 08.2015 | CAWB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Golf V (1K1) | 2.0 GTI | 10.2004 - 02.2009 | CAWB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Golf V Variant (1K5) | 2.0 TSI | 06.2007 - 07.2009 | CAWB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Jetta III (1K2) | 2.0 TSI | 10.2005 - 10.2010 | CAWB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Passat B6 (3C2) | 2.0 TSI | 07.2005 - 07.2010 | CAWB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Passat B6 Variant (3C5) | 2.0 TSI | 08.2005 - 11.2010 | CAWB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Passat CC B6 (357) | 2.0 TSI | 06.2008 - 01.2012 | CAWB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Scirocco III (137, 138) | 2.0 TSI | 05.2008 - 11.2009 | CAWB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Tiguan (5N_) | 2.0 TSI 4motion | 09.2007 - 07.2018 | CAWB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Tiguan (5N_) | 2.0 TSI | 11.2007 - 07.2018 | CAWB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A3 (8P1) | 2.0 TFSI quattro | 09.2004 - 08.2012 | CBFA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A3 Sportback (8PA) | 2.0 TFSI quattro | 09.2004 - 03.2013 | CBFA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A3 Sportback (8PA) | 2.0 TFSI | 09.2004 - 03.2013 | CBFA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Beetle (5C1, 5C2) | 2.0 TSI | 12.2011 - 07.2016 | CBFA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Beetle Convertible (5C7, 5C8) | 2.0 TSI | 12.2011 - 07.2016 | CBFA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Eos (1F7, 1F8) | 2.0 TSI | 03.2006 - 08.2015 | CBFA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Golf V (1K1) | 2.0 GTI | 10.2004 - 02.2009 | CBFA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Golf V Variant (1K5) | 2.0 TSI | 06.2007 - 07.2009 | CBFA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Golf VI (5K1) | 2.0 GTI | 06.2009 - 02.2014 | CBFA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Jetta III (1K2) | 2.0 TSI | 10.2005 - 10.2010 | CBFA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Jetta IV (162, 163, AV3, AV2) | 2.0 TSI | 12.2010 - 07.2014 | CBFA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Passat B6 (3C2) | 2.0 TSI | 07.2005 - 07.2010 | CBFA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Passat B6 Variant (3C5) | 2.0 TSI | 08.2005 - 11.2010 | CBFA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Passat CC B6 (357) | 2.0 TSI | 06.2008 - 01.2012 | CBFA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | CC B7 (358) | 2.0 TSI | 11.2011 - 12.2016 | CBFA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A3 (8P1) | 2.0 TFSI quattro | 09.2004 - 08.2012 | CCTA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A3 Sportback (8PA) | 2.0 TFSI quattro | 09.2004 - 03.2013 | CCTA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A3 Sportback (8PA) | 2.0 TFSI | 09.2004 - 03.2013 | CCTA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | Q3 (8UB, 8UG) | 2.0 TFSI quattro | 09.2014 - 10.2018 | CCTA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | TT (8J3) | 2.0 TFSI | 08.2006 - 06.2010 | CCTA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | TT (8J3) | 2.0 TFSI quattro | 01.2008 - 06.2010 | CCTA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | TT Roadster (8J9) | 2.0 TFSI | 03.2007 - 06.2010 | CCTA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | TT Roadster (8J9) | 2.0 TFSI quattro | 06.2008 - 06.2010 | CCTA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Beetle (5C1, 5C2) | 2.0 TSI | 04.2011 - 07.2016 | CCTA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Beetle Convertible (5C7, 5C8) | 2.0 TSI | 12.2011 - 07.2016 | CCTA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Eos (1F7, 1F8) | 2.0 TSI | 03.2006 - 08.2015 | CCTA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Golf V (1K1) | 2.0 GTI | 10.2004 - 02.2009 | CCTA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Golf V Variant (1K5) | 2.0 TSI | 06.2007 - 07.2009 | CCTA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Golf VI (5K1) | 2.0 GTI | 06.2009 - 02.2014 | CCTA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Jetta III (1K2) | 2.0 TSI | 10.2005 - 10.2010 | CCTA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Jetta IV (162, 163, AV3, AV2) | 2.0 TSI | 12.2010 - 07.2014 | CCTA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Passat B6 (3C2) | 2.0 TSI | 07.2005 - 07.2010 | CCTA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Passat B6 Variant (3C5) | 2.0 TSI | 08.2005 - 11.2010 | CCTA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Passat CC B6 (357) | 2.0 TSI | 06.2008 - 01.2012 | CCTA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Tiguan (5N_) | 2.0 TSI 4motion | 11.2007 - 07.2018 | CCTA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | CC B7 (358) | 2.0 TSI | 11.2011 - 12.2016 | CCTA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Tiguan (5N_) | 2.0 TSI | 11.2007 - 05.2011 | CCTA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Tiguan (5N_) | 2.0 TSI 4motion | 09.2007 - 07.2018 | CCTB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Passat B6 (3C2) | 2.0 TSI | 08.2007 - 07.2010 | CCTB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A3 (8P1) | 2.0 TFSI | 09.2004 - 08.2012 | CCZA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A3 (8P1) | 2.0 TFSI quattro | 09.2004 - 08.2012 | CCZA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A3 Convertible (8P7) | 2.0 TFSI | 04.2008 - 05.2013 | CCZA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A3 Sportback (8PA) | 2.0 TFSI quattro | 09.2004 - 03.2013 | CCZA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A3 Sportback (8PA) | 2.0 TFSI | 09.2004 - 03.2013 | CCZA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | TT (8J3) | 2.0 TFSI quattro | 06.2008 - 06.2010 | CCZA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | TT Roadster (8J9) | 2.0 TFSI quattro | 06.2008 - 06.2010 | CCZA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Seat | Alhambra (710, 711) | 2.0 TSI | 11.2010 - 05.2012 | CCZA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Skoda | Octavia II (1Z3) | 2.0 TSI | 10.2005 - 02.2013 | CCZA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Skoda | Octavia II Combi (1Z5) | 2.0 TSI | 10.2005 - 02.2013 | CCZA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Skoda | Superb II (3T4) | 2.0 TSI | 05.2010 - 05.2015 | CCZA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Skoda | Superb II Estate (3T5) | 2.0 TSI | 05.2010 - 05.2015 | CCZA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Beetle (5C1, 5C2) | 2.0 TSI | 12.2011 - 07.2016 | CCZA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Beetle Convertible (5C7, 5C8) | 2.0 TSI | 12.2011 - 07.2016 | CCZA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Eos (1F7, 1F8) | 2.0 TSI | 03.2006 - 08.2015 | CCZA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Golf VI (5K1) | 2.0 GTi | 06.2009 - 11.2013 | CCZA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Golf VI Variant (AJ5) | 2.0 TSI | 07.2009 - 07.2013 | CCZA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Jetta IV (162, 163, AV3, AV2) | 2.0 TSI | 12.2010 - 07.2014 | CCZA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Passat B6 (3C2) | 2.0 TSI | 07.2005 - 07.2010 | CCZA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Passat B6 Variant (3C5) | 2.0 TSI | 08.2005 - 11.2010 | CCZA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Passat CC B6 (357) | 2.0 TSI | 06.2008 - 01.2012 | CCZA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Sharan (7N1, 7N2) | 2.0 TSI | 12.2010 - 11.2015 | CCZA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Sharan VAN (7N1, 7N2) | 2.0 TSI | 12.2010 - 11.2015 | CCZA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Tiguan (5N_) | 2.0 TSI 4motion | 09.2007 - 07.2018 | CCZA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Tiguan VAN (5N_) | 2.0 TSI 4motion | 11.2009 - 05.2011 | CCZA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Seat | Altea XL (5P5, 5P8) | 2.0 TSI 4x4 | 05.2009 - 07.2015 | CCZB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Seat | Altea XL (5P5, 5P8) | 2.0 TSI | 05.2009 - 07.2015 | CCZB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Seat | Leon (1P1) | 2.0 TSI | 06.2009 - 12.2012 | CCZB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | CC B7 (358) | 2.0 TSI | 11.2011 - 12.2016 | CCZB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Eos (1F7, 1F8) | 2.0 TSI | 11.2009 - 08.2015 | CCZB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Golf VI (5K1) | 2.0 GTI | 04.2009 - 11.2012 | CCZB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Golf VI Convertible (517) | 2.0 GTI | 05.2012 - 05.2016 | CCZB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Golf VI Van (5K1_) | 2.0 GTI | 02.2009 - 11.2012 | CCZB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Passat Alltrack B7 (365) | 2.0 TSI 4motion | 01.2012 - 12.2014 | CCZB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Passat B7 (362) | 2.0 TSI | 11.2010 - 12.2014 | CCZB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Passat B7 Variant (365) | 2.0 TSI | 11.2010 - 12.2015 | CCZB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Passat CC B6 (357) | 2.0 TSI | 11.2010 - 01.2012 | CCZB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Scirocco III (137, 138) | 2.0 TSI | 11.2009 - 11.2017 | CCZB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Scirocco Van (137) | 2.0 TSI | 11.2009 - 05.2014 | CCZB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Tiguan (5N_) | 2.0 TSI 4motion | 05.2011 - 07.2018 | CCZB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Tiguan VAN (5N_) | 2.0 TSI 4motion | 05.2011 - 07.2018 | CCZB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | Q3 (8UB, 8UG) | 2.0 TFSI quattro | 06.2011 - 04.2015 | CCZC | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Tiguan (5N_) | 2.0 TSI 4motion | 09.2007 - 07.2018 | CCZC | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Tiguan VAN (5N_) | 2.0 TSI 4motion | 11.2009 - 05.2011 | CCZC | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Tiguan (5N_) | 2.0 TSI 4motion | 05.2011 - 07.2018 | CCZD | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A4 B8 (8K2) | 2.0 TFSI | 06.2008 - 12.2015 | CDNB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A4 B8 Avant (8K5) | 2.0 TFSI | 06.2008 - 12.2015 | CDNB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A5 (8T3) | 2.0 TFSI | 11.2008 - 03.2012 | CDNB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A5 Convertible (8F7) | 2.0 TFSI | 03.2009 - 03.2012 | CDNB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A5 Sportback (8TA) | 2.0 TFSI | 09.2009 - 06.2014 | CDNB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A6 C7 (4G2, 4GC) | 2.0 TFSI | 05.2011 - 09.2018 | CDNB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A6 C7 Avant (4G5, 4GD) | 2.0 TFSI | 06.2011 - 09.2018 | CDNB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | Q5 (8RB) | 2.0 TFSI quattro | 08.2009 - 10.2012 | CDNB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A4 Allroad B8 (8KH) | 2.0 TFSI quattro | 04.2009 - 05.2016 | CDNC | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A4 B8 (8K2) | 2.0 TFSI | 06.2008 - 05.2013 | CDNC | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A4 B8 (8K2) | 2.0 TFSI quattro | 06.2008 - 12.2015 | CDNC | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A4 B8 Avant (8K5) | 2.0 TFSI | 06.2008 - 05.2013 | CDNC | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A4 B8 Avant (8K5) | 2.0 TFSI quattro | 06.2008 - 12.2015 | CDNC | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A5 (8T3) | 2.0 TFSI | 06.2008 - 11.201 | CDNC | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A5 (8T3) | 2.0 TFSI quattro | 06.2008 - 01.2017 | CDNC | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A5 Convertible (8F7) | 2.0 TFSI | 03.2009 - 06.2014 | CDNC | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A5 Convertible (8F7) | 2.0 TFSI quattro | 03.2009 - 01.2017 | CDNC | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A5 Sportback (8TA) | 2.0 TFSI | 09.2009 - 11.2013 | CDNC | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A5 Sportback (8TA) | 2.0 TFSI quattro | 09.2009 - 01.2017 | CDNC | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | Q5 (8RB) | 2.0 TFSI quattro | 11.2008 - 09.2012 | CDNC | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | Q5 Van (8RB) | 2.0 TFSI quattro | 11.2008 - 09.2012 | CDNC | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Seat | Exeo (3R2) | 2.0 TSI | 05.2010 - 05.2013 | CDND | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Seat | Exeo ST (3R5) | 2.0 TSI | 05.2010 - 05.2013 | CDND | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | TT (8J3) | 2.0 TFSI | 05.2010 - 06.2014 | CESA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | TT (8J3) | 2.0 TFSI quattro | 05.2010 - 06.2014 | CESA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | TT Roadster (8J9) | 2.0 TFSI quattro | 05.2010 - 06.2014 | CESA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | TT Roadster (8J9) | 2.0 TFSI | 05.2010 - 06.2014 | CESA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | TT Roadster (8J9) | 45 TFSI | 11.2010 - 01.2015 | CESA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | TT Roadster (8J9) | 45 TFSI quattro | 11.2010 - 01.2015 | CESA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | TT (8J3) | 2.0 TFSI quattro | 05.2010 - 06.2014 | CETA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | TT Roadster (8J9) | 2.0 TFSI quattro | 05.2010 - 06.2014 | CETA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A4 B8 (8K2) | 2.0 TFSI | 06.2008 - 12.2015 | CFKA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A4 B8 (8K2) | 2.0 TFSI quattro | 11.2009 - 03.2012 | CFKA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A4 B8 (8K2) | 2.0 TFSI flexible fuel quattro | 11.2009 - 12.2015 | CFKA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A4 B8 (8K2) | 2.0 TFSI flexible fuel | 11.2009 - 12.2015 | CFKA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A4 B8 Avant (8K5) | 2.0 TFSI | 06.2008 - 12.2015 | CFKA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A4 B8 Avant (8K5) | 2.0 TFSI flexible fuel quattro | 11.2009 - 12.2015 | CFKA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A4 B8 Avant (8K5) | 2.0 TFSI flexible fuel | 11.2009 - 12.2015 | CFKA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Amarok (2HA, 2HB, S1B, S6B, S7A, S7B) | 2.0 TSI | 12.2010 - 10.2016 | CFPA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Amarok (2HA, 2HB, S1B, S6B, S7A, S7B) | 2.0 TSI 4motion | 09.2011 - 10.2016 | CFPA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Amarok Platform/Chassis (S1B, S6B, S7B) | 2.0 TSI | 09.2011 - 10.2016 | CFPA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A6 C7 (4G2, 4GC) | 2.0 TFSI Hybrid | 11.2011 - 04.2015 | CHJA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A8 D4 (4H2, 4H8, 4HC, 4HL) | 2.0 TFSI hybrid | 02.2012 - 11.2015 | CHJA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | Q5 (8RB) | 2.0 TFSI Hybrid quattro | 06.2011 - 06.2016 | CHJA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | Q7 (4MB, 4MG, 4MQ) | 2.0 TFSI Hybrid quattro | 01.2016 - | CHJA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Multivan V (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) | 2.0 TSI | 07.2012 - 08.2015 | CJKB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Multivan VI (SGF, SGM, SGN, SHM, SHN) | 2.0 TSI | 04.2015 - 07.2019 | CJKB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Transporter V (7HB, 7HJ, 7EB, 7EJ) | 2.0 TSI | 07.2012 - 08.2015 | CJKB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Transporter V (7JD, 7JE, 7JL, 7JY, 7JZ, | 2.0 TSI | 07.2012 - 08.2015 | CJKB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Transporter V (7HA, 7HH, 7EA, 7EH) | 2.0 TSI | 07.2012 - 08.2015 | CJKB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Transporter VI (SFD, SFE, SFL, SFZ, SJD | 2.0 TSI | 04.2015 - 07.2019 | CJKB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Transporter VI (SGA, SGH, SHA, SHH) | 2.0 TSI | 04.2015 - 07.2019 | CJKB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Transporter VI | 2.0 TSI | 04.2015 - 07.2019 | CJKB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | Caravelle VI | 2.0 TSI | 04.2015 - 07.2019 | CJKB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | California T5 Camper | 2.0 TSI | 07.2012 - 08.2015 | CJKB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Volkswagen | California T6 Camper | 2.0 TSI | 04.2015 - 07.2019 | CJKB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A4 Allroad B8 (8KH) | 2.0 TFSI quattro | 04.2009 - 05.2016 | CPMA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A4 B8 (8K2) | 2.0 TFSI quattro | 06.2008 - 12.2015 | CPMA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A5 (8T3) | 2.0 TFSI quattro | 06.2008 - 01.2017 | CPMA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A5 Convertible (8F7) | 2.0 TFSI quattro | 03.2009 - 01.2017 | CPMA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | Q5 (8RB) | 2.0 TFSI quattro | 09.2012 - 12.2013 | CPMA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A4 Allroad B8 (8KH) | 2.0 TFSI quattro | 05.2013 - 05.2016 | CPMB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A4 B8 (8K2) | 2.0 TFSI quattro | 05.2013 - 12.2015 | CPMB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A5 (8T3) | 2.0 TFSI quattro | 03.2012 - 01.2017 | CPMB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | A5 Convertible (8F7) | 2.0 TFSI quattro | 03.2012 - 01.2017 | CPMB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | Q5 (8RB) | 2.0 TFSI quattro | 05.2013 - 05.2017 | CPMB | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
| Audi | Q3 (8UB, 8UG) | 2.0 TFSI quattro | 06.2011 - 04.2015 | CPSA | 4 | 5M5563H | 1984 cc | DOHC 16V | -.25 | 82.5 | 92.8 |
