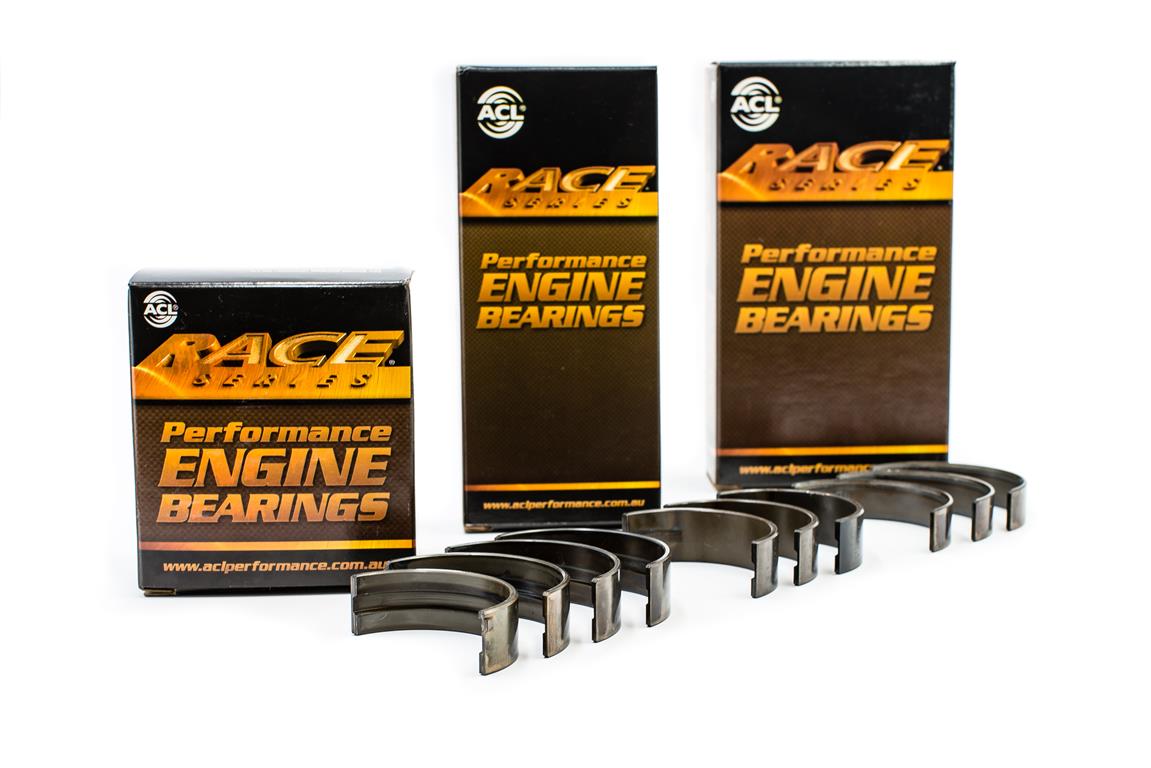

The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.
Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications and feature:
- High strength overlay plate with reduced thickness for improved fatigue properties
- Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
- Increased crush for improved bearing retention
- Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
- Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
- 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
- Tight consistent wall tolerances to help you maintain consistent clearances.
- Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.
| Tunnel [mm] | 54.000 / 54.018 |
| Shaft [mm] | 49.982 / 50.000 |
| Max. Wall | 1.991 |
| Max. Length | 19.13 |
| Half type | Upper & lower |
| Compatibility | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mitsubishi | Pajero Pinin I (H6_W, H7_W) | 2.0 | 10.2002 - 06.2007 | 4G94 | 4 | 5M8037H | 1999 cc | SOHC 16V | -.25 | 81.5 | 95.8 |
| Mitsubishi | Lancer | 2.0 | 2002 - 2005 | 4G94 | 4 | 5M8037H | 1999 cc | SOHC 16V | -.25 | 81.5 | 95.8 |
| Mitsubishi | Galant | 1.5 16V | 08.1991 - | 4G91 | 4 | 5M8037H | 1496 cc | DOHC 16V | -.25 | 78.4 | 77.5 |
| Mitsubishi | Lancer V Coupe (CC) | 1.8 16V | 09.1992 - 07.1996 | 4G93 (DOHC 16V) | 4 | 5M8037H | 1834 cc | DOHC 16V | -.25 | 81.0 | 89.0 |
| Mitsubishi | Lancer V (CB_A, CD_A, CE_A) | 1.8 16V | 06.1992 - 12.1993 | 4G93 (DOHC 16V) | 4 | 5M8037H | 1834 cc | DOHC 16V | -.25 | 81.0 | 89.0 |
| Mitsubishi | Lancer V (CB_A, CD_A, CE_A) | 1.8 16V | 07.1991 - 07.1993 | 4G93 (DOHC 16V) | 4 | 5M8037H | 1834 cc | DOHC 16V | -.25 | 81.0 | 89.0 |
| Mitsubishi | Lancer IV Hatchback (C6_A, C7_A) | 1.8 GTi 16V | 06.1992 - 12.1993 | 4G93 (DOHC 16V) | 4 | 5M8037H | 1834 cc | DOHC 16V | -.25 | 81.0 | 89.0 |
| Mitsubishi | Colt IV (CA_A) | 1.8 GTi 16V | 04.1992 - 04.1996 | 4G93 (DOHC 16V) | 4 | 5M8037H | 1834 cc | DOHC 16V | -.25 | 81.0 | 89.0 |
| Mitsubishi | Space Star MPV (DG_A) | 1.8 16V | 10.2002 - 12.2004 | 4G93 (DOHC 16V) | 4 | 5M8037H | 1834 cc | DOHC 16V | -.25 | 81.0 | 89.0 |
| Mitsubishi | Carisma (DA_) | 1.8 16V | 07.1995 - 07.1997 | 4G93 (DOHC 16V) | 4 | 5M8037H | 1834 cc | DOHC 16V | -.25 | 81.0 | 89.0 |
| Proton | Persona 400 Hatchback (C9_C, C9_S) | 1.8 16V | 08.2000 - 12.2001 | 4G93 (DOHC 16V) | 4 | 5M8037H | 1834 cc | DOHC 16V | -.25 | 81.0 | 89.0 |
| Proton | Satria (C9_M) | 1.8 GTi | 08.2000 - 05.2006 | 4G93 (DOHC 16V) | 4 | 5M8037H | 1834 cc | DOHC 16V | -.25 | 81.0 | 89.0 |
| Proton | Wira | 1.8 16V | 01.2000 - | 4G93 (DOHC 16V) | 4 | 5M8037H | 1834 cc | DOHC 16V | -.25 | 81.0 | 89.0 |
| Proton | Persona 300 (C9_M) | 1.8 GTi | 03.1996 - 07.2000 | 4G93 (DOHC 16V) | 4 | 5M8037H | 1834 cc | DOHC 16V | -.25 | 81.0 | 89.0 |
| Proton | Persona 400 (C9_S) | 1.8 16V | 05.1996 - 07.2000 | 4G93 (DOHC 16V) | 4 | 5M8037H | 1834 cc | DOHC 16V | -.25 | 81.0 | 89.0 |
| Proton | Persona 400 Hatchback (C9_C, C9_S) | 1.8 16V | 05.1996 - 07.2000 | 4G93 (DOHC 16V) | 4 | 5M8037H | 1834 cc | DOHC 16V | -.25 | 81.0 | 89.0 |
| Mitsubishi | Carisma (DA_) | 1.8 GDI | 09.1997 - 06.2006 | 4G93 (DOHC 16V) | 4 | 5M8037H | 1834 cc | DOHC 16V | -.25 | 81.0 | 89.0 |
| Mitsubishi | Carisma Saloon (DA_) | 1.8 GDI | 09.1997 - 06.2006 | 4G93 (DOHC 16V) | 4 | 5M8037H | 1834 cc | DOHC 16V | -.25 | 81.0 | 89.0 |
| Mitsubishi | Carisma Saloon (DA_) | 1.8 GDI | 10.2000 - 06.2006 | 4G93 (DOHC 16V) | 4 | 5M8037H | 1834 cc | DOHC 16V | -.25 | 81.0 | 89.0 |
| Mitsubishi | Carisma (DA_) | 1.8 GDI | 10.2000 - 06.2006 | 4G93 (DOHC 16V) | 4 | 5M8037H | 1834 cc | DOHC 16V | -.25 | 81.0 | 89.0 |
| Mitsubishi | Space Star MPV (DG_A) | 1.8 GDI | 06.1998 - 12.2004 | 4G93 (DOHC 16V) | 4 | 5M8037H | 1834 cc | DOHC 16V | -.25 | 81.0 | 89.0 |
| Mitsubishi | Space Star MPV (DG_A) | 1.8 GDI | 06.1998 - 12.2004 | 4G93 (DOHC 16V) | 4 | 5M8037H | 1834 cc | DOHC 16V | -.25 | 81.0 | 89.0 |
| Mitsubishi | Pajero Pinin I (H6_W, H7_W) | 1.8 GDI | 10.1999 - 10.2001 | 4G93 (DOHC 16V) | 4 | 5M8037H | 1834 cc | DOHC 16V | -.25 | 81.0 | 89.0 |
| Mitsubishi | Lancer V (CB_A, CD_A, CE_A) | 1.8 Turbo 4WD | 11.1992 - 07.1996 | 4G93-T | 4 | 5M8037H | 1834 cc | DOHC 16V | -.25 | 81.0 | 89.0 |
| Mitsubishi | Lancer VI (CJ_, CP_, CK_) | 1.8 Turbo | 09.1995 - 08.2003 | 4G93-T | 4 | 5M8037H | 1834 cc | DOHC 16V | -.25 | 81.0 | 89.0 |
| Mitsubishi | Colt IV (CA_A) | 1.6 16V | 02.1994 - 04.1996 | 4G92 (SOHC 16V) | 4 | 5M8037H | 1597 cc | SOHC 16V | -.25 | 81.0 | 77.5 |
| Mitsubishi | Lancer V (CB_A, CD_A, CE_A) | 1.6 16V | 02.1994 - 12.1996 | 4G92 (SOHC 16V) | 4 | 5M8037H | 1597 cc | SOHC 16V | -.25 | 81.0 | 77.5 |
| Mitsubishi | Carisma Saloon (DA_) | 1.6 16V | 09.1996 - 06.2006 | 4G92 (SOHC 16V) | 4 | 5M8037H | 1597 cc | SOHC 16V | -.25 | 81.0 | 77.5 |
| Mitsubishi | Carisma (DA_) | 1.6 16V | 07.1995 - 06.2006 | 4G92 (SOHC 16V) | 4 | 5M8037H | 1597 cc | SOHC 16V | -.25 | 81.0 | 77.5 |
| Mitsubishi | Lancer VI (CJ_, CP_, CK_) | 1.6 16V | 01.1997 - 11.2001 | 4G92 (SOHC 16V) | 4 | 5M8037H | 1597 cc | SOHC 16V | -.25 | 81.0 | 77.5 |
| Mitsubishi | Lancer IV Hatchback (C6_A, C7_A) | 1.6 16V | 10.1992 - 05.1994 | 4G92 (SOHC 16V) | 4 | 5M8037H | 1597 cc | SOHC 16V | -.25 | 81.0 | 77.5 |
| Mitsubishi | Lancer V (CB_A, CD_A, CE_A) | 1.6 16V | 10.1992 - 02.1995 | 4G92 (SOHC 16V) | 4 | 5M8037H | 1597 cc | SOHC 16V | -.25 | 81.0 | 77.5 |
| Mitsubishi | Lancer V Station Wagon (CB_W, CD_W) | 1.6 16V | 12.1992 - 02.1995 | 4G92 (SOHC 16V) | 4 | 5M8037H | 1597 cc | SOHC 16V | -.25 | 81.0 | 77.5 |
| Mitsubishi | Lancer VI (CJ_, CP_, CK_) | 1.6 16V | 12.1995 - 08.2003 | 4G92 (SOHC 16V) | 4 | 5M8037H | 1597 cc | SOHC 16V | -.25 | 81.0 | 77.5 |
| Mitsubishi | Lancer V (CB_A, CD_A, CE_A) | 1.6 16V 4WD | 10.1992 - 02.1995 | 4G92 (SOHC 16V) | 4 | 5M8037H | 1597 cc | SOHC 16V | -.25 | 81.0 | 77.5 |
| Mitsubishi | Lancer V Station Wagon (CB_W, CD_W) | 1.6 16V 4WD | 12.1992 - 02.1995 | 4G92 (SOHC 16V) | 4 | 5M8037H | 1597 cc | SOHC 16V | -.25 | 81.0 | 77.5 |
| Mitsubishi | Lancer IV Hatchback (C6_A, C7_A) | 1.6 16V 4WD | 06.1992 - 11.1993 | 4G92 (SOHC 16V) | 4 | 5M8037H | 1597 cc | SOHC 16V | -.25 | 81.0 | 77.5 |
| Mitsubishi | Colt IV (CA_A) | 1.6 16V 4WD | 08.1993 - 08.1995 | 4G92 (SOHC 16V) | 4 | 5M8037H | 1597 cc | SOHC 16V | -.25 | 81.0 | 77.5 |
| Mitsubishi | Colt IV (CA_A) | 1.6 16V | 10.1992 - 02.1995 | 4G92 (SOHC 16V) | 4 | 5M8037H | 1597 cc | SOHC 16V | -.25 | 81.0 | 77.5 |
| Mitsubishi | Colt V (CJ_, CP_) | 1.6 16V | 05.1996 - 09.2003 | 4G92 (SOHC 16V) | 4 | 5M8037H | 1597 cc | SOHC 16V | -.25 | 81.0 | 77.5 |
| Proton | Satria (C9_M) | 1.6 16V | 07.1997 - 07.2000 | 4G92 (SOHC 16V) | 4 | 5M8037H | 1597 cc | SOHC 16V | -.25 | 81.0 | 77.5 |
| Proton | Wira | 1.6 16V | 08.2000 - 02.2002 | 4G92 (SOHC 16V) | 4 | 5M8037H | 1597 cc | SOHC 16V | -.25 | 81.0 | 77.5 |
| Proton | Persona Saloon | 1.6 16V | 03.2008 - 07.2016 | 4G92 (SOHC 16V) | 4 | 5M8037H | 1597 cc | SOHC 16V | -.25 | 81.0 | 77.5 |
| Proton | Persona 300 (C9_M) | 1.6 16V | 03.1996 - 07.2004 | 4G92 (SOHC 16V) | 4 | 5M8037H | 1597 cc | SOHC 16V | -.25 | 81.0 | 77.5 |
| Proton | Persona 400 Hatchback (C9_C, C9_S) | 1.6 16V | 01.1994 - 07.2000 | 4G92 (SOHC 16V) | 4 | 5M8037H | 1597 cc | SOHC 16V | -.25 | 81.0 | 77.5 |
| Proton | Persona 400 (C9_S) | 1.6 16V | 01.1994 - 02.2002 | 4G92 (SOHC 16V) | 4 | 5M8037H | 1597 cc | SOHC 16V | -.25 | 81.0 | 77.5 |
| Proton | Persona 400 Hatchback (C9_C, C9_S) | 1.6 16V | 12.1995 - 07.2000 | 4G92 (SOHC 16V) | 4 | 5M8037H | 1597 cc | SOHC 16V | -.25 | 81.0 | 77.5 |
| Mitsubishi | Space Wagon (N9_W, N8_W) | 1.8 16V | 05.2002 - 08.2004 | 4G93 (SOHC 16V) | 4 | 5M8037H | 1834 cc | SOHC 16V | -.25 | 81.0 | 89.0 |
| Mitsubishi | Carisma Saloon (DA_) | 1.8 16V | 09.1996 - 09.1997 | 4G93 (SOHC 16V) | 4 | 5M8037H | 1834 cc | SOHC 16V | -.25 | 81.0 | 89.0 |
| Mitsubishi | Carisma (DA_) | 1.8 16V | 07.1995 - 07.1997 | 4G93 (SOHC 16V) | 4 | 5M8037H | 1834 cc | SOHC 16V | -.25 | 81.0 | 89.0 |
| Mitsubishi | Galant VII (E5_A, E7_A, E8_A) | 1.8 16V | 02.1994 - 08.1996 | 4G93 (SOHC 16V) | 4 | 5M8037H | 1834 cc | SOHC 16V | -.25 | 81.0 | 89.0 |
| Mitsubishi | Galant VII Saloon (E5_A, E7_A, E8_A) | 1.8 16V | 02.1994 - 08.1996 | 4G93 (SOHC 16V) | 4 | 5M8037H | 1834 cc | SOHC 16V | -.25 | 81.0 | 89.0 |
| Mitsubishi | Pajero Pinin I (H6_W, H7_W) | 1.8 16V | 11.2001 - 06.2007 | 4G93 (SOHC 16V) | 4 | 5M8037H | 1834 cc | SOHC 16V | -.25 | 81.0 | 89.0 |
| Mitsubishi | Space Runner MPV (N1_W, N2_W) | 1.8 16V | 10.1991 - 08.1999 | 4G93 (SOHC 16V) | 4 | 5M8037H | 1834 cc | SOHC 16V | -.25 | 81.0 | 89.0 |
| Mitsubishi | Space Runner MPV (N1_W, N2_W) | 1.8 16V | 06.1996 - 08.1999 | 4G93 (SOHC 16V) | 4 | 5M8037H | 1834 cc | SOHC 16V | -.25 | 81.0 | 89.0 |
| Mitsubishi | Space Wagon (N3_W, N4_W) | 1.8 16V | 10.1991 - 10.1998 | 4G93 (SOHC 16V) | 4 | 5M8037H | 1834 cc | SOHC 16V | -.25 | 81.0 | 89.0 |
| Mitsubishi | Pajero Sport I (K7_, K9_) | 1.8 16V 4WD | 03.2001 - 02.2005 | 4G93 (SOHC 16V) | 4 | 5M8037H | 1834 cc | SOHC 16V | -.25 | 81.0 | 89.0 |
| Mitsubishi | Space Runner MPV (N1_W, N2_W) | 1.8 16V 4WD | 06.1996 - 08.1999 | 4G93 (SOHC 16V) | 4 | 5M8037H | 1834 cc | SOHC 16V | -.25 | 81.0 | 89.0 |
| Mitsubishi | Space Runner MPV (N1_W, N2_W) | 1.8 16V 4WD | 10.1991 - 08.1999 | 4G93 (SOHC 16V) | 4 | 5M8037H | 1834 cc | SOHC 16V | -.25 | 81.0 | 89.0 |
| Mitsubishi | Space Wagon (N3_W, N4_W) | 1.8 16V 4WD | 10.1991 - 10.1998 | 4G93 (SOHC 16V) | 4 | 5M8037H | 1834 cc | SOHC 16V | -.25 | 81.0 | 89.0 |
| Mitsubishi | Galant VII Saloon (E5_A, E7_A, E8_A) | 1.8 16V | 11.1992 - 08.1996 | 4G93 (SOHC 16V) | 4 | 5M8037H | 1834 cc | SOHC 16V | -.25 | 81.0 | 89.0 |
| Mitsubishi | Galant VII (E5_A, E7_A, E8_A) | 1.8 16V | 11.1992 - 08.1996 | 4G93 (SOHC 16V) | 4 | 5M8037H | 1834 cc | SOHC 16V | -.25 | 81.0 | 89.0 |
