6M5587H-.025

6M5587H-.025

€222,49 EUR
€222,49 EUR
In offerta Esaurito

The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.

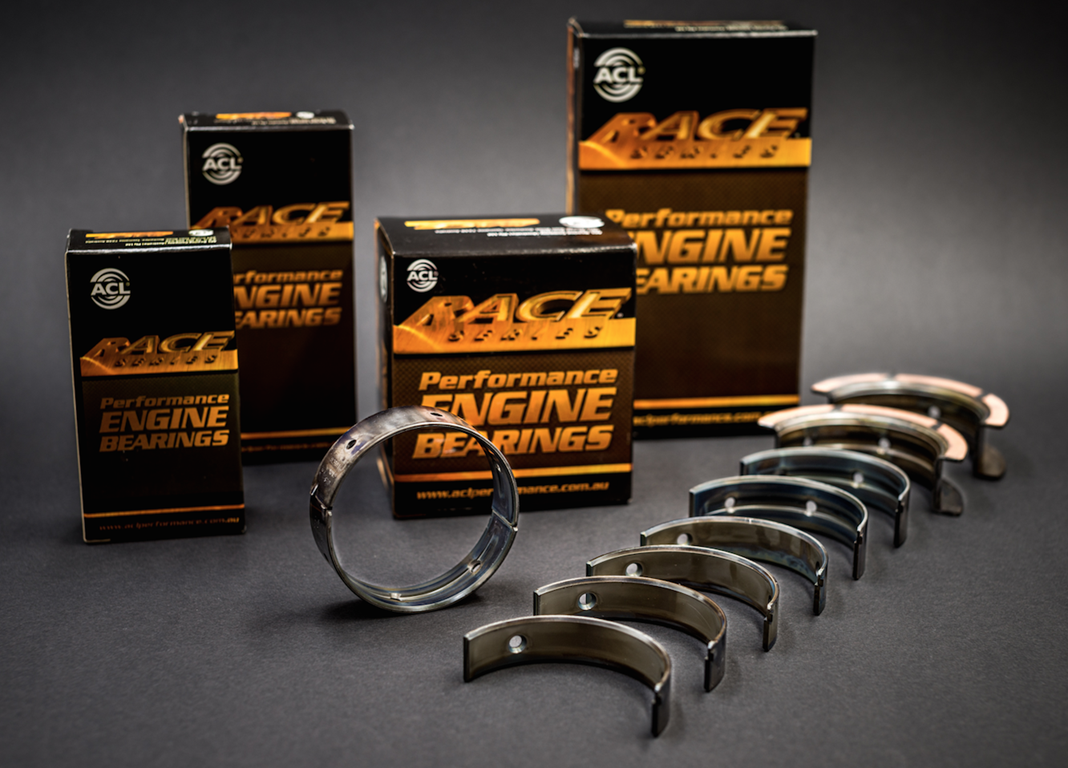

Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications and feature:

  • High strength overlay plate with reduced thickness for improved fatigue properties
  • Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
  • Increased crush for improved bearing retention
  • Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
  • Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
  • 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
  • Tight consistent wall tolerances to help you maintain consistent clearances.
  • Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.
Tunnel: 57.000-57.019
Shaft: 51.958-51.978
Max wall: 2.515
Max length: 15.50
Compatibility
Audi A3 Sportback (8VA, 8VF) RS3 quattro 04.2017 - 10.2020 DAZA 5 6M5587H 2480 cc DOHC 20V -.025 82.5 92.8
Audi A3 Limousine (8VS, 8VM) RS3 quattro 04.2017 - 10.2020 DAZA 5 6M5587H 2480 cc DOHC 20V -.025 82.5 92.8
Audi Q3 (F3B) 2.5 RS quattro 10.2019 - DAZA 5 6M5587H 2480 cc DOHC 20V -.025 82.5 92.8
Audi Q3 Sportback (F3N) 2.5 RS quattro 10.2019 - DAZA 5 6M5587H 2480 cc DOHC 20V -.025 82.5 92.8
Audi TT (FV3, FVP) 2.5 RS quattro 10.2016 - DAZA 5 6M5587H 2480 cc DOHC 20V -.025 82.5 92.8
Audi TT Roadster (FV9, FVR) 2.5 RS quattro 10.2016 - DAZA 5 6M5587H 2480 cc DOHC 20V -.025 82.5 92.8
Audi A3 Sportback (8VA, 8VF) RS3 quattro 04.2017 - 10.2020 DNWA 5 6M5587H 2480 cc DOHC 20V -.025 82.5 92.8
Audi A3 Limousine (8VS, 8VM) RS3 quattro 04.2017 - 10.2020 DNWA 5 6M5587H 2480 cc DOHC 20V -.025 82.5 92.8
Audi Q3 (F3B) 2.5 RS quattro 10.2019 - DNWA 5 6M5587H 2480 cc DOHC 20V -.025 82.5 92.8
Audi Q3 Sportback (F3N) 2.5 RS quattro 10.2019 - DNWA 5 6M5587H 2480 cc DOHC 20V -.025 82.5 92.8
Audi TT (FV3, FVP) 2.5 RS quattro 10.2016 - DNWA 5 6M5587H 2480 cc DOHC 20V -.025 82.5 92.8
Audi TT Roadster (FV9, FVR) 2.5 RS quattro 10.2016 - DNWA 5 6M5587H 2480 cc DOHC 20V -.025 82.5 92.8
