Pedders 1.75 Inch Lift Kit. Isuzu D-Max

This lift kit is designed for Isuzu D-Max owners seeking improved ground clearance and enhanced looks. It raises the vehicle approximately 40mm, allowing accommodation of larger tyres and better off-road capability.

Key Features

• 1.75 Inch Lift Kit
• Increased Off-Road Ground Clearance
• Sintered Iron Piston Shocks with Large 35mm Bore
• Premium Grade Steel Coils
• All backed by a 2 year / 25,000 mile warranty

Product Overview

This entry-level lift kit replaces the standard suspension components with front coil springs, new rear leaf springs, TrakRyder shocks, and all necessary bushes and U bolts for installation. It primarily raises the vehicle to improve clearance and appearance, and can support larger tyres for better off-road handling.

While suitable for general use, customers regularly carrying heavy loads or towing trailers should consider Pedders heavy duty options. The kit's increase in ride height enhances ground clearance without requiring additional vehicle modifications.

Technology & Materials

The kit features sintered iron piston shocks with a large 35mm bore, providing reliable damping performance. Premium grade steel is used for the coil springs, ensuring strength and durability under normal driving conditions.

Installation & Compatibility

The components replace the original suspension parts and include all necessary hardware for bolt-in installation. No further modifications to the vehicle are required. It is strongly recommended to have a professional wheel alignment performed after fitting for optimal performance.

This kit is focused on improving ground clearance and looks rather than heavy-duty load carrying.

Technical Specification

• Lift: Approx. 40mm
• Front Vehicle Height with 17 inch wheels: 800mm
• Rear increased by approx. 40mm over standard
• Shock piston bore: 35mm

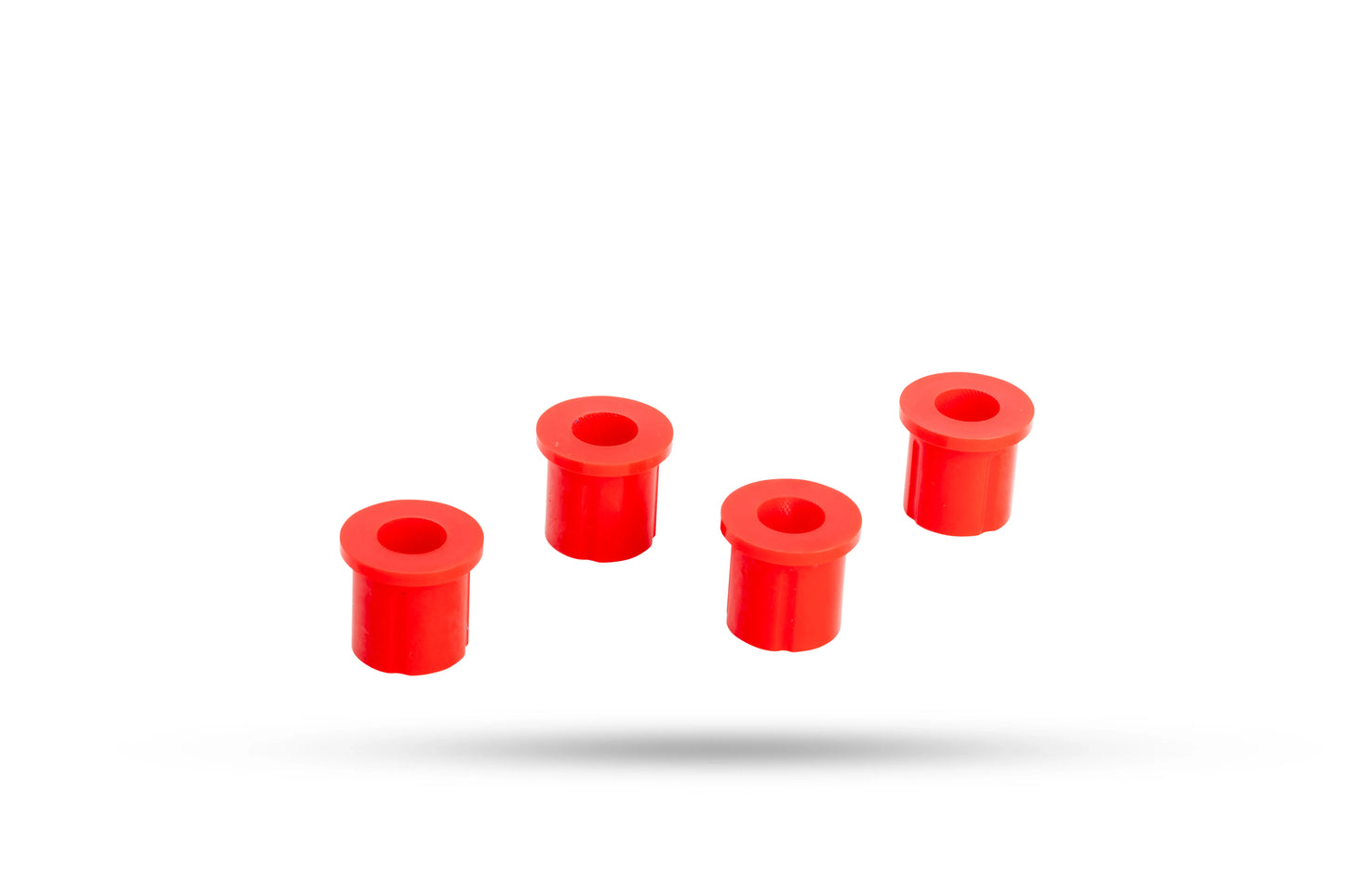

• Includes front coil springs, rear leaf springs, TrakRyder shocks, bushes and U bolts

Note: Additional equipment such as winches or bull bars at the front will affect final ride height and may require different springs.

Why Choose This Kit

• Matched suspension components designed to raise vehicle height
• Proven use of TrakRyder shocks with large bore for consistent performance
• Complete kit with hardware for straightforward installation
• Supported by a 2 year / 25,000 mile warranty
