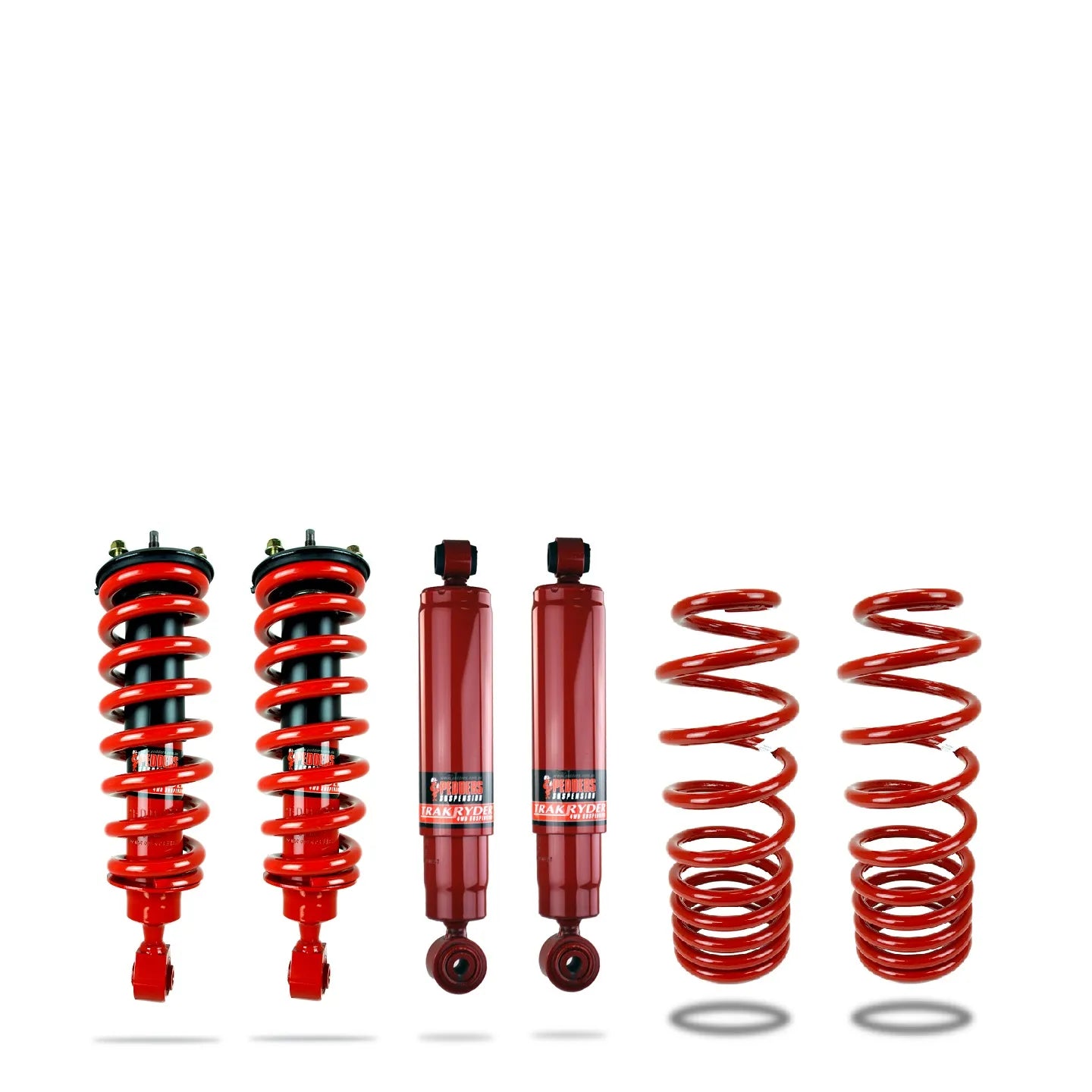

Pedders 1.5 Inch Suspension Lift Kit With Assembled Struts for X-Class

This suspension lift kit is designed to raise the X-Class by approximately 35mm, improving ground clearance and vehicle stance. It includes Pedders TrakRyder Foam Cell shocks and new coil and leaf springs, aimed at maintaining ride comfort while enhancing load carrying ability.

Key Features

• 1.5 Inch lift kit
• Improved ride comfort
• Increased off-road ground clearance
• Sintered iron piston shocks with large 40mm bore

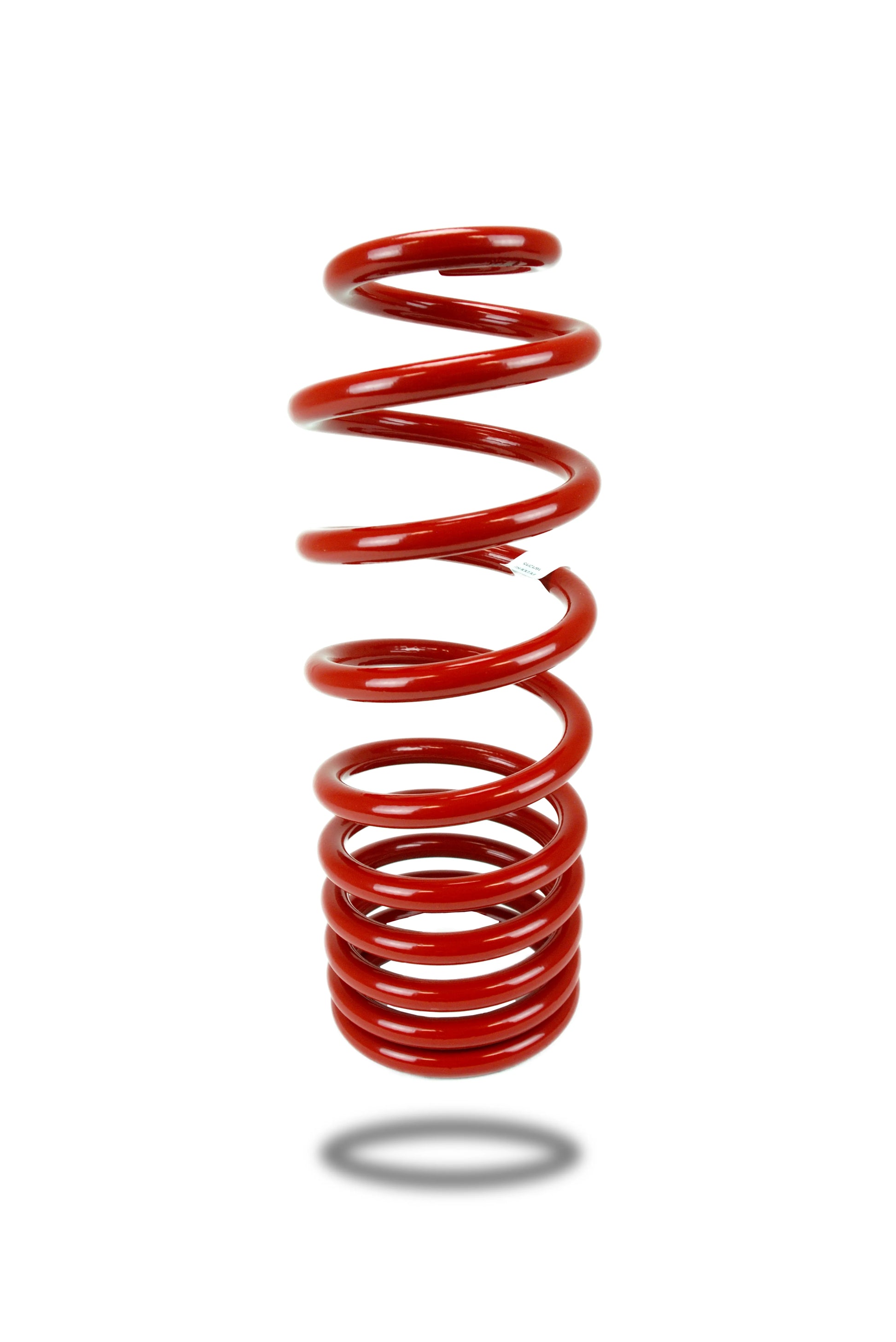

• Premium grade steel coils
• Fully assembled Ezifit struts for quick fitment
• Includes new rear leaf springs, bushes and U bolts
• Backed by 2 year / 25,000 mile warranty

Product Overview

This kit raises the X-Class by around 35mm, enabling better ground clearance for off-road and daily driving. It improves vehicle stance and can accommodate larger tyres. Designed to carry heavier loads than the factory setup, it suits those who tow or load frequently. The suspension components are matched to maintain ride comfort and handling balance.

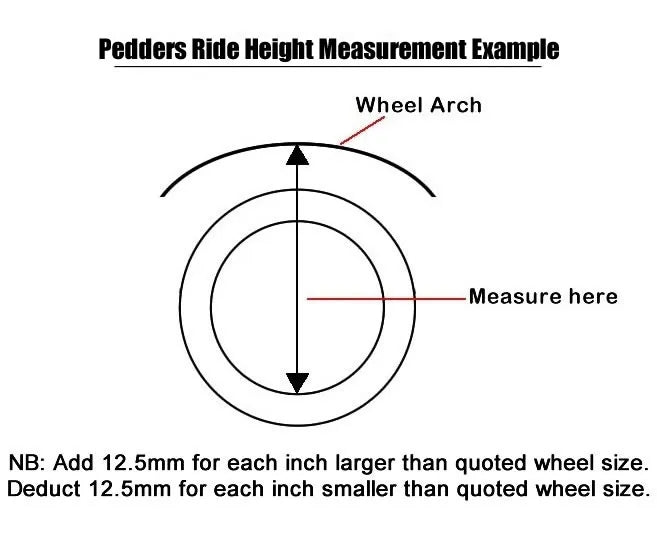

Height measurements are based on a standard vehicle; additions such as winches or bull bars may affect these values and require alternative springs. For continuously laden vehicles, Pedders recommends their heavy duty options.

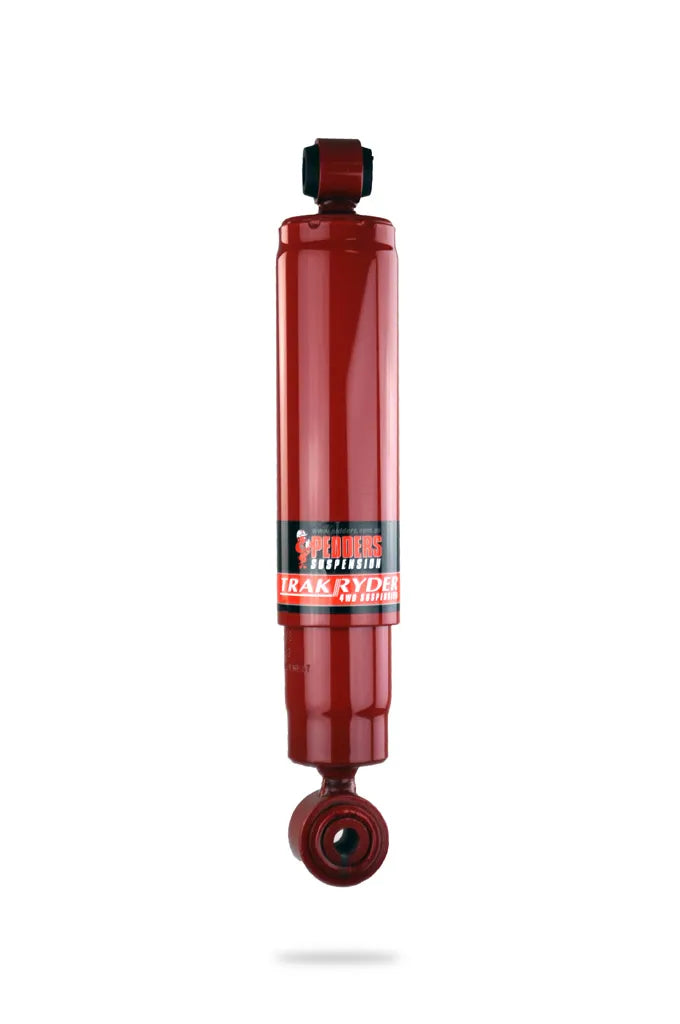

Foam Cell Shock Technology

Foam Cell shock absorbers use a special foam saturated with oil instead of relying on pressurised gas. This design prevents aeration and cavitation, keeping damping forces stable across the full stroke. With greater oil capacity and improved heat dissipation, they resist fade, control temperature, and deliver reliable performance even under demanding use. Their durability makes them well suited for heavy-duty, towing and off-road applications.

Installation & Compatibility

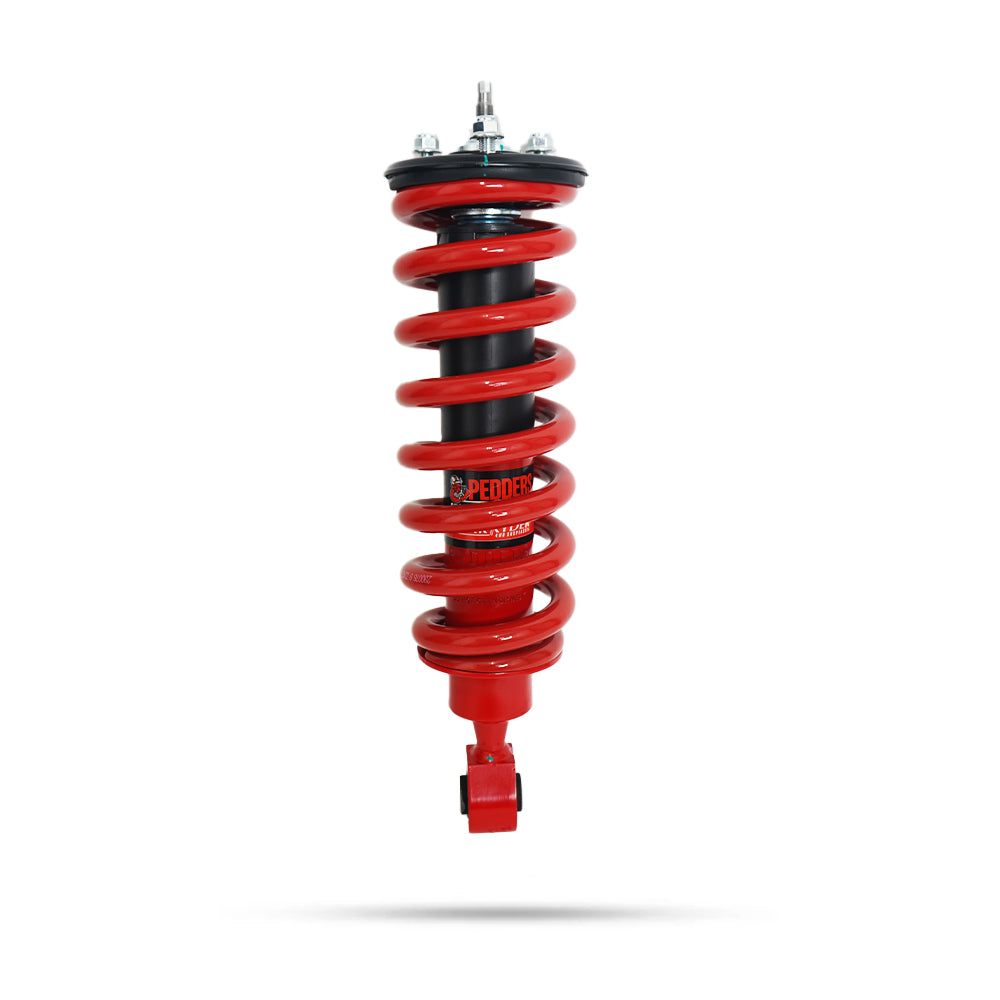

The kit features fully assembled Ezifit struts that include Pedders Foam Cell shocks, springs, new top mounts, bump stops and boots. Installation requires simply bolting these components in place, replacing original parts with no need for spring compressors or other modifications. A professional wheel alignment is strongly recommended after fitment to ensure optimum vehicle performance.

This kit is comfort-focused with options available for heavy duty use for towing or constant load conditions.

Technical Specification

• Lift height: Approx. 35mm front and rear
• Shock type: Pedders TrakRyder Foam Cell with sintered iron piston, 40mm bore
• Includes: Front coil springs, rear leaf springs, bushes, U bolts, fully assembled Ezifit struts
• Vehicle fitment: X-Class
• Warranty: 2 years / 25,000 miles

Note: Final ride height may vary if additional front equipment such as winches or bull bars are fitted. Alternative spring rates may be required for such applications.

Why Choose Pedders

• Complete matched suspension system designed for ride comfort and load capacity
• Proven Foam Cell shock technology suited for heavy duty and off-road use
• Ezifit fully assembled struts for quick and safe installation
• Supported by a 2 year / 25,000 mile warranty

Additional information

This kit is available with the TUV certificate. Please see the related items section.

Compatibility
Mercedes-Benz	X-Class	X220d -2.3lt 4cyl TD, 4 Door Cab Chassis	X220d -2.3lt 4cyl TD, 4 Door Cab Chassis | 2017-Onward	SUSPENSION KITS	Kits	Pedders 1.5 Inch Suspension Lift Kit. With Assembled Struts. Mercedes X-Class	Height: approx. +35mm	Minimum weight required: None
Mercedes-Benz	X-Class	X220d -2.3lt 4cyl TTD, 4 Door Cab Chassis	X220d -2.3lt 4cyl TTD, 4 Door Cab Chassis | 2017-Onward	SUSPENSION KITS	Kits	Pedders 1.5 Inch Suspension Lift Kit. With Assembled Struts. Mercedes X-Class	Height: approx. +35mm	Minimum weight required: None
Mercedes-Benz	X-Class	X220d-2.3lt 4cyl TD, 4 Door pick-up	X220d-2.3lt 4cyl TD, 4 Door pick-up | 2017-Onward	SUSPENSION KITS	Kits	Pedders 1.5 Inch Suspension Lift Kit. With Assembled Struts. Mercedes X-Class	Height: approx. +35mm	Minimum weight required: None
Mercedes-Benz	X-Class	X220d-2.3lt 4cyl TTD, 4 Door pick-up	X220d-2.3lt 4cyl TTD, 4 Door pick-up | 2017-Onward	SUSPENSION KITS	Kits	Pedders 1.5 Inch Suspension Lift Kit. With Assembled Struts. Mercedes X-Class	Height: approx. +35mm	Minimum weight required: None
Mercedes-Benz	X-Class	X250d-2.3lt 4cyl TD, 4 Door Cab Chassis	X250d-2.3lt 4cyl TD, 4 Door Cab Chassis | 2017-Onward	SUSPENSION KITS	Kits	Pedders 1.5 Inch Suspension Lift Kit. With Assembled Struts. Mercedes X-Class	Height: approx. +35mm	Minimum weight required: None
Mercedes-Benz	X-Class	X250d-2.3lt 4cyl TD, 4 Door Pick-up	X250d-2.3lt 4cyl TD, 4 Door Pick-up | 2017-Onward	SUSPENSION KITS	Kits	Pedders 1.5 Inch Suspension Lift Kit. With Assembled Struts. Mercedes X-Class	Height: approx. +35mm	Minimum weight required: None
Mercedes-Benz	X-Class	X250d-2.3lt 4cyl TD, 4 Door Pick-up	X250d-2.3lt 4cyl TD, 4 Door Pick-up | 2017-Onward	SUSPENSION KITS	Kits	Pedders 1.5 Inch Suspension Lift Kit. With Assembled Struts. Mercedes X-Class	Height: approx. +35mm	Minimum weight required: None
Mercedes-Benz	X-Class	X250d-2.3lt 4cyl TTD, 4 Door Cab Chassis	X250d-2.3lt 4cyl TTD, 4 Door Cab Chassis | 2017-Onward	SUSPENSION KITS	Kits	Pedders 1.5 Inch Suspension Lift Kit. With Assembled Struts. Mercedes X-Class	Height: approx. +35mm	Minimum weight required: None
Mercedes-Benz	X-Class	X250d-2.3lt 4cyl TTD, 4 Door Pick-up	X250d-2.3lt 4cyl TTD, 4 Door Pick-up | 2017-Onward	SUSPENSION KITS	Kits	Pedders 1.5 Inch Suspension Lift Kit. With Assembled Struts. Mercedes X-Class	Height: approx. +35mm	Minimum weight required: None
Mercedes-Benz	X-Class	X350d-3.0 V6 TD, 4 Door Pick-up	X350d-3.0 V6 TD, 4 Door Pick-up | 2018-Onward	SUSPENSION KITS	Kits	Pedders 1.5 Inch Suspension Lift Kit. With Assembled Struts. Mercedes X-Class	Height: approx. +35mm	Minimum weight required: None
