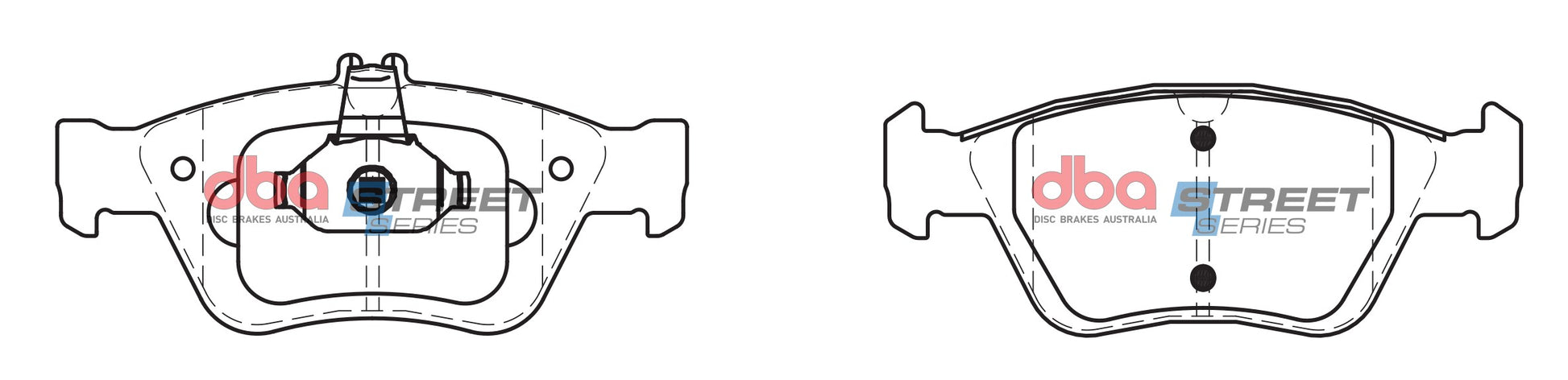

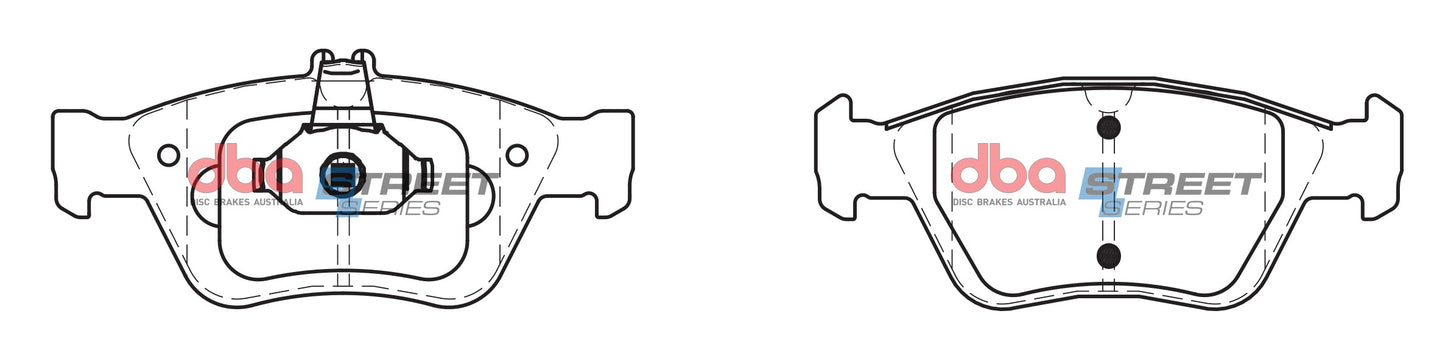

DB1330SS

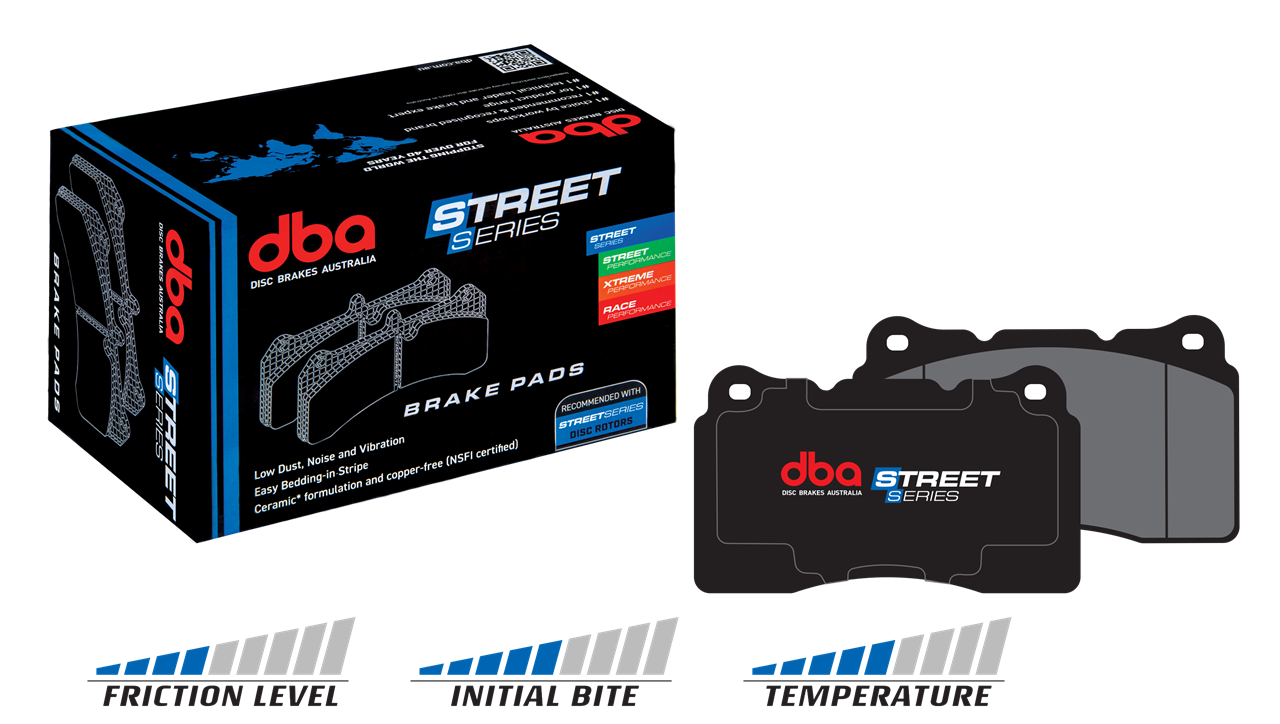

STREET SERIES brake pads are the latest addition to DBA’s comprehensive range of braking products. Aimed at the OE replacement market, the range was developed with three technical objectives in mind – create a brake pad that performs at OE level or better, offers the best friction formulation for the application, and complements DBA’s long-established, market-leading range of STREET SERIES disc rotors.

Great attention was given to the development of the friction formulation to achieve a friction coefficient that outperforms the current market standard. Consequently, DBA did not settle on just one formulation, but offers either ceramic or semi-metallic formulations depending on application and required performance.

DBA recommends STREET SERIES brake pads for everyday use application in passenger cars, SUVs and LightCommercial Vehicles.

DBA recommends use with STREET SERIES plain or T2 slotted disc rotors for increased first application effectiveness and reducing bed-in time.

STREET SERIES part numbers are denoted by the suffix SS.

OE-style post-cured process for optimal braking performance over the pad life

Ceramic* formulation and copper-free (NSFI certified) for low dust emission & clean wheels

High-friction stripe for easy bedding-in

Application-specific NVH shims, slots and chamfers for less vibration and noise

* Check box label for applicability

OE replacement & everyday use

Passenger cars & SUVs

Light commercial Vehicles

Use with DBA Street Series Disc Rotors

Primary FMSI	7583-D710
Set Contains	2 Inner Pads + 2 Outer Pads
Width [mm]	150.0, 151.4
Height [mm]	66.4, 59.7
Pad Thickness [mm]	18.4
Axle	Front

Compatibility
MERCEDES-BENZ	C-Class (W202) C200 K	(1995-1996)	1995-1996	Front	Brake Caliper: ATE
MERCEDES-BENZ	C-Class (W202) C200 K	(1996-2000)	1996-2000	Front	Brake Caliper: ATE
MERCEDES-BENZ	C-Class (W202) C230	(1996-2000)	1996-2000	Front	Brake Caliper: ATE
MERCEDES-BENZ	C-Class (W202) C230 K	(1996-2000)	1996-2000	Front	Brake Caliper: ATE
MERCEDES-BENZ	C-Class (W202) C240	(1995-1996)	1995-1996	Front	Brake Caliper: ATE
MERCEDES-BENZ	C-Class (W202) C240	(1996-2000)	1996-2000	Front	Brake Caliper: ATE
MERCEDES-BENZ	C-Class (W202) C250 D	(1996-2000)	1996-2000	Front	Brake Caliper: ATE
MERCEDES-BENZ	C-Class (W202) C250 TD	(1995-1996)	1995-1996	Front	Brake Caliper: ATE
MERCEDES-BENZ	C-Class (W202) C250 TD	(1996-2000)	1996-2000	Front	Brake Caliper: ATE
MERCEDES-BENZ	C-Class (W202) C280	(1996-2000)	1996-2000	Front	Brake Caliper: ATE
MERCEDES-BENZ	CLK (C208) CLK200 Coupe	2.0 (1997-2002)	1997-2002	Front	Brake Caliper: ATE
MERCEDES-BENZ	CLK (C208) CLK200K Coupe	2.0 Supercharged (1997-2002)	1997-2002	Front	Brake Caliper: ATE
MERCEDES-BENZ	CLK (C208) CLK230K Coupe	2.3 Supercharged (1997-2002)	1997-2002	Front	Brake Caliper: ATE
MERCEDES-BENZ	E-Class (T210) E200	Estate (1996-2000)	1996-2000	Front	Brake Caliper: ATE
MERCEDES-BENZ	E-Class (T210) E200 K	163BHP Estate (2000-2003)	2000-2003	Front	Brake Caliper: ATE
MERCEDES-BENZ	E-Class (T210) E220 D	Estate (1998-2003)	1998-2003	Front	Brake Caliper: ATE
MERCEDES-BENZ	E-Class (T210) E230	Estate (1996-1997)	1996-1997	Front	Brake Caliper: ATE
MERCEDES-BENZ	E-Class (T210) E240	Estate (1997-2003)	1997-2003	Front	Brake Caliper: ATE
MERCEDES-BENZ	E-Class (T210) E250 D	Estate (1995-1998)	1995-1998	Front	Brake Caliper: ATE
MERCEDES-BENZ	E-Class (T210) E250 TD	Estate (1996-2002)	1996-2002	Front	Brake Caliper: ATE
MERCEDES-BENZ	E-Class (T210) E250 Turbo D	Estate (1995-1996)	1995-1996	Front	Brake Caliper: ATE
MERCEDES-BENZ	E-Class (T210) E290 TD	Estate (1996-2003)	1996-2003	Front	Brake Caliper: ATE
MERCEDES-BENZ	E-Class (T210) E300 TD	Estate (1995-1996)	1995-1996	Front	Brake Caliper: ATE
MERCEDES-BENZ	E-Class (T210) E300 TD	Estate (1996-1998)	1996-1998	Front	Brake Caliper: ATE
MERCEDES-BENZ	E-Class (W210) E200	(1996-2000)	1996-2000	Front	Brake Caliper: ATE
MERCEDES-BENZ	E-Class (W210) E200 D	(1998-2002)	1998-2002	Front	Brake Caliper: ATE
MERCEDES-BENZ	E-Class (W210) E200 K	163BHP (2000-2003)	2000-2003	Front	Brake Caliper: ATE
MERCEDES-BENZ	E-Class (W210) E220 D	(1995-1996)	1995-1996	Front	Brake Caliper: ATE
MERCEDES-BENZ	E-Class (W210) E220 D	(1996-2003)	1996-2003	Front	Brake Caliper: ATE
MERCEDES-BENZ	E-Class (W210) E220 TD	(1998-2003)	1998-2003	Front	Brake Caliper: ATE
MERCEDES-BENZ	E-Class (W210) E230	(1995-1998)	1995-1998	Front	Brake Caliper: ATE
MERCEDES-BENZ	E-Class (W210) E240	(1997-2002)	1997-2002	Front	Brake Caliper: ATE
MERCEDES-BENZ	E-Class (W210) E250 D	(1995-1996)	1995-1996	Front	Brake Caliper: ATE
MERCEDES-BENZ	E-Class (W210) E250 D	(1996-1998)	1996-1998	Front	Brake Caliper: ATE
MERCEDES-BENZ	E-Class (W210) E250 TD	(1995-1996)	1995-1996	Front	Brake Caliper: ATE
MERCEDES-BENZ	E-Class (W210) E250 TD	(1996-1998)	1996-1998	Front	Brake Caliper: ATE
MERCEDES-BENZ	E-Class (W210) E250 TD	(1996-2002)	1996-2002	Front	Brake Caliper: ATE
MERCEDES-BENZ	E-Class (W210) E290 TD	(1996-1999)	1996-1999	Front	Brake Caliper: ATE
MERCEDES-BENZ	E-Class (W210) E300 D	(1995-1996)	1995-1996	Front	Brake Caliper: ATE
MERCEDES-BENZ	E-Class (W210) E300 D	(1996-1998)	1996-1998	Front	Brake Caliper: ATE
MERCEDES-BENZ	SLK (R170) SLK200	2.0 136BHP (1996-2004)	1996-2004	Front	Brake Caliper: ATE
MERCEDES-BENZ	SLK (R170) SLK200K	2.0 Supercharged 163BHP (2001-2004)	2001-2004	Front	Brake Caliper: ATE
MERCEDES-BENZ	SLK (R170) SLK200K	2.0 Supercharged 192BHP (1996-2000)	1996-2000	Front	Brake Caliper: ATE
MERCEDES-BENZ	SLK (R170) SLK230K	2.3 Supercharged 193BHP (1996-2000)	1996-2000	Front	Brake Caliper: ATE
MERCEDES-BENZ	SLK (R170) SLK230K	2.3 Supercharged 193BHP (1997-2000)	1997-2000	Front	Brake Caliper: ATE
MERCEDES-BENZ	SLK (R170) SLK230K	2.3 Supercharged 193BHP ASR (1996-2000)	1996-2000	Front	Brake Caliper: ATE
MERCEDES-BENZ	SLK (R170) SLK230K	2.3 Supercharged 197BHP (2000-2004)	2000-2004	Front	Brake Caliper: ATE
