DBA

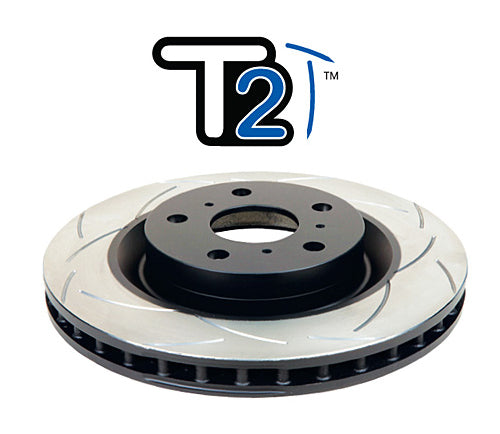

DBA076S
DBA076S
Prezzo di listino
€187,25 EUR
Prezzo di listino
Prezzo scontato
€187,25 EUR
Quantità
Impossibile caricare la disponibilità di ritiro
| Feature Description | Advantage | Benefit |
 "T3 Slot 48 precision CNC machined slots"
|
Tri-Symmetrical curve slots dampens the vibration harmonics or noise | A quieter, responsive and smoother brake pedal feel |
| Increased number of out-gassing exit points for brake pad friction gasses to escape through | Increases the consistency and effectiveness of every brake stop | |
| Universal slot design | Eliminates the need for left and right discs | |
 "KANGAROO_PAW") Kangaroo Paw – 144 diamond and tear drop pillar ventilation system
|
Increased surface area resulting in greater heat dissipation | Minimises brake fade and increases braking effectiveness |
| Increased surface area resulting in greater heat dissipation | Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs | |
 XG150 High Carbon Alloyed Iron
|
An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermal Stability Profiling
|
Special formulation designed to respond to DBA’s TSP process | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermographic Temperature Monitoring
|
Heat paint markings change colour at specific temperature thresholds | Offers the driver a clear indication of peak braking temperatures |
| When temperature thresholds are exceeded paint markings will permanently change colours | Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims | |
 Paint protection on non-friction areas
|
Reduces corrosion | Stops any unsightly rust formation |
| Enhances appearance | Adds value to the product |
| Diameter [mm] | 285 |
| Disc Vent | Vented |
| Number of Holes | 5 |
| Inner Diameter [mm] | 82.7 |
| Minimum Thickness [mm] | 22,9 |
| Thickness [mm] | 24 |
| Height [mm] | 60.5 |
| Pitch Circle [mm] | 111 |
| Stage | Stage 2 |
| Tech Bulletins | Bedding in Brakes |
| Tech Bulletins | How to clean a Disc Rotor before fitting |
| Tech Bulletins | Motorsport - Important Info |
| Compatibility | ||||||
|---|---|---|---|---|---|---|
| ASTON MARTIN | DB7 | 3.2 Supercharged 335BHP (1993-1997) | 1993-1997 | Brake Caliper: Girling/TRW | Front | Disc Diameter [mm]: 285 |
| ASTON MARTIN | DB7 | 3.2 Supercharged 335BHP (1997-1999) | 1997-1999 | Brake Caliper: Girling/TRW | Front | Disc Diameter [mm]: 285 |
| DAIMLER | Double Six | 5.3 (1973-1981) | 1973-1981 | Brake Caliper: Girling/TRW | Front | Disc Diameter [mm]: 285 |
| DAIMLER | Double Six | 5.3 (1982-1993) | 1982-1993 | Brake Caliper: Girling/TRW | Front | Disc Diameter [mm]: 285 |
| DAIMLER | Sovereign | 3.4 (1975-1979) | 1975-1979 | Brake Caliper: Girling/TRW | Front | Disc Diameter [mm]: 285 |
| DAIMLER | Sovereign | 3.4 (1980-1983) | 1980-1983 | Brake Caliper: Girling/TRW | Front | Disc Diameter [mm]: 285 |
| DAIMLER | Sovereign | 4.2 (1973-1979) | 1973-1979 | Brake Caliper: Girling/TRW | Front | Disc Diameter [mm]: 285 |
| DAIMLER | Sovereign | 4.2 (1980-1986) | 1980-1986 | Brake Caliper: Girling/TRW | Front | Disc Diameter [mm]: 285 |
| JAGUAR | E-Type | 5.3 272BHP (1971-1975) | 1971-1975 | Brake Caliper: Girling/TRW | Front | Disc Diameter [mm]: 285 |
| JAGUAR | XJ12 | 5.3 (1973-1993) | 1973-1993 | Brake Caliper: Girling/TRW | Front | Disc Diameter [mm]: 285 |
| JAGUAR | XJ6 | 2.8 (1973-1975) | 1973-1975 | Brake Caliper: Girling/TRW | Front | Disc Diameter [mm]: 285 |
| JAGUAR | XJ6 | 3.4 (1975-1979) | 1975-1979 | Brake Caliper: Girling/TRW | Front | Disc Diameter [mm]: 285 |
| JAGUAR | XJ6 | 3.4 (1979-1986) | 1979-1986 | Brake Caliper: Girling/TRW | Front | Disc Diameter [mm]: 285 |
| JAGUAR | XJ6 | 4.2 (1973-1979) | 1973-1979 | Brake Caliper: Girling/TRW | Front | Disc Diameter [mm]: 285 |
| JAGUAR | XJ6 | 4.2 (1979-1986) | 1979-1986 | Brake Caliper: Girling/TRW | Front | Disc Diameter [mm]: 285 |
| JAGUAR | XJS | 3.6 (1983-1992) | 1983-1992 | Brake Caliper: Girling/TRW | Front | Disc Diameter [mm]: 285 |
| JAGUAR | XJS | 4.0 (1991-1993) | 1991-1993 | Brake Caliper: Girling/TRW | Front | Disc Diameter [mm]: 285 |
| JAGUAR | XJS | 4.0 (1993-1994) | 1993-1994 | Brake Caliper: Girling/TRW | Front | Disc Diameter [mm]: 285 |
| JAGUAR | XJS | 4.0 (1995-1996) | 1995-1996 | Brake Caliper: Girling/TRW | Front | Disc Diameter [mm]: 285 |
| JAGUAR | XJS | 5.3 (1975-1979) | 1975-1979 | Brake Caliper: Girling/TRW | Front | Disc Diameter [mm]: 285 |
| JAGUAR | XJS | 5.3 (1979-1980) | 1979-1980 | Brake Caliper: Girling/TRW | Front | Disc Diameter [mm]: 285 |
| JAGUAR | XJS | 5.3 (1980-1992) | 1980-1992 | Brake Caliper: Girling/TRW | Front | Disc Diameter [mm]: 285 |
| JAGUAR | XJS | 5.3 (1993-1994) | 1993-1994 | Brake Caliper: Girling/TRW | Front | Disc Diameter [mm]: 285 |
| JAGUAR | XJS | 6.0 (1993-1996) | 1993-1996 | Brake Caliper: Girling/TRW | Front | Disc Diameter [mm]: 285 |
| JAGUAR | XJS | 6.0 (1995-1996) | 1995-1996 | Brake Caliper: Girling/TRW | Front | Disc Diameter [mm]: 285 |
