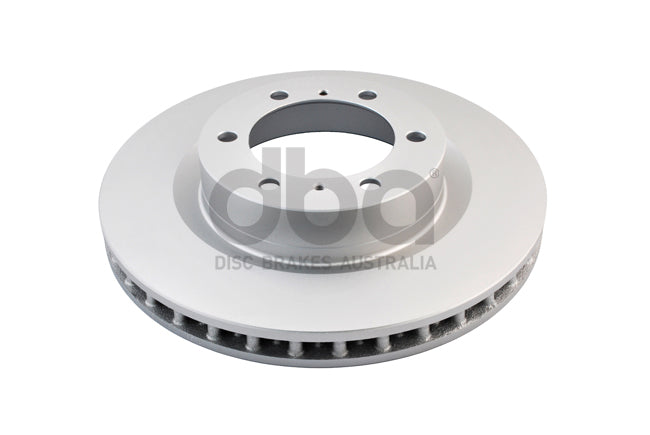

DBA2736E

Diameter [mm]	338
Disc Vent	Kangaroo Paw
Number of Holes	6
Inner Diameter [mm]	139.70
Minimum Thickness [mm]	29
Thickness [mm]	32
Height [mm]	68.5
Pitch Circle [mm]	108
Tech Bulletins	Bedding in Brakes
Tech Bulletins	How to clean a Disc Rotor before fitting
Tech Bulletins	Motorsport - Important Info
ECE R90 number	E11*90R02/06*59759*00

Compatibility
TOYOTA	Landcruiser 150 series (Prado)	2.8 D-4D (GDJ150, GDJ155) 130 kW (2015-)	2015-	Front	Brake Pads: DB1482	Disc Diameter [mm]: 338
TOYOTA	Landcruiser 150 series (Prado)	2.8 D-4D (GDJ150, GDJ155) 147 kW (2018-)	2018-	Front	Brake Pads: DB1482	Disc Diameter [mm]: 338
TOYOTA	Landcruiser 150 series (Prado)	2.8 D-4D (GDJ150, GDJ155) 150 kW (2020-)	2020-	Front	Brake Pads: DB1482	Disc Diameter [mm]: 338
TOYOTA	Landcruiser 150 series (Prado)	3.0 D-4D (KDJ150, KDJ155) 127 kW (2009-2015)	2009-2015	Front	Brake Pads: DB1482	Disc Diameter [mm]: 338
TOYOTA	Landcruiser 150 series (Prado)	3.0 D-4D (KDJ150, KDJ155) 140 kW (2009-2015)	2009-2015	Front	Brake Pads: DB1482	Disc Diameter [mm]: 338
TOYOTA	Landcruiser 150 series (Prado)	4.0 V6 (GRJ150) 202 kW (2009-)	2009-	Front	Brake Pads: DB1482	Disc Diameter [mm]: 338
TOYOTA	Landcruiser 150 series (Prado)	4.0 V6 (GRJ150) 205 kW (2009-)	2009-	Front	Brake Pads: DB1482	Disc Diameter [mm]: 338
TOYOTA	Landcruiser 150 series (Prado)	4.0 V6 (GRJ150) 207 kW (2009-)	2009-	Front	Brake Pads: DB1482	Disc Diameter [mm]: 338
