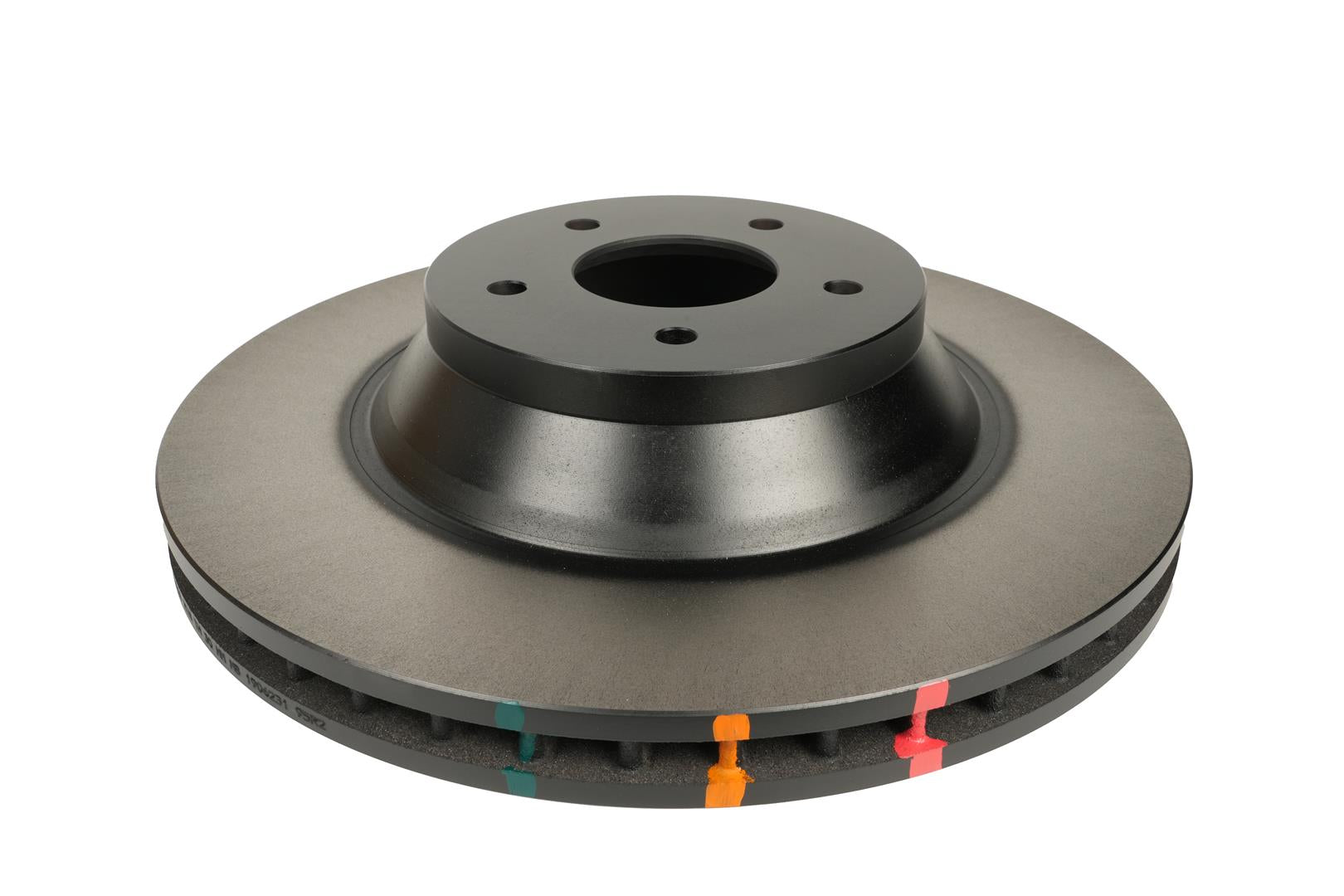

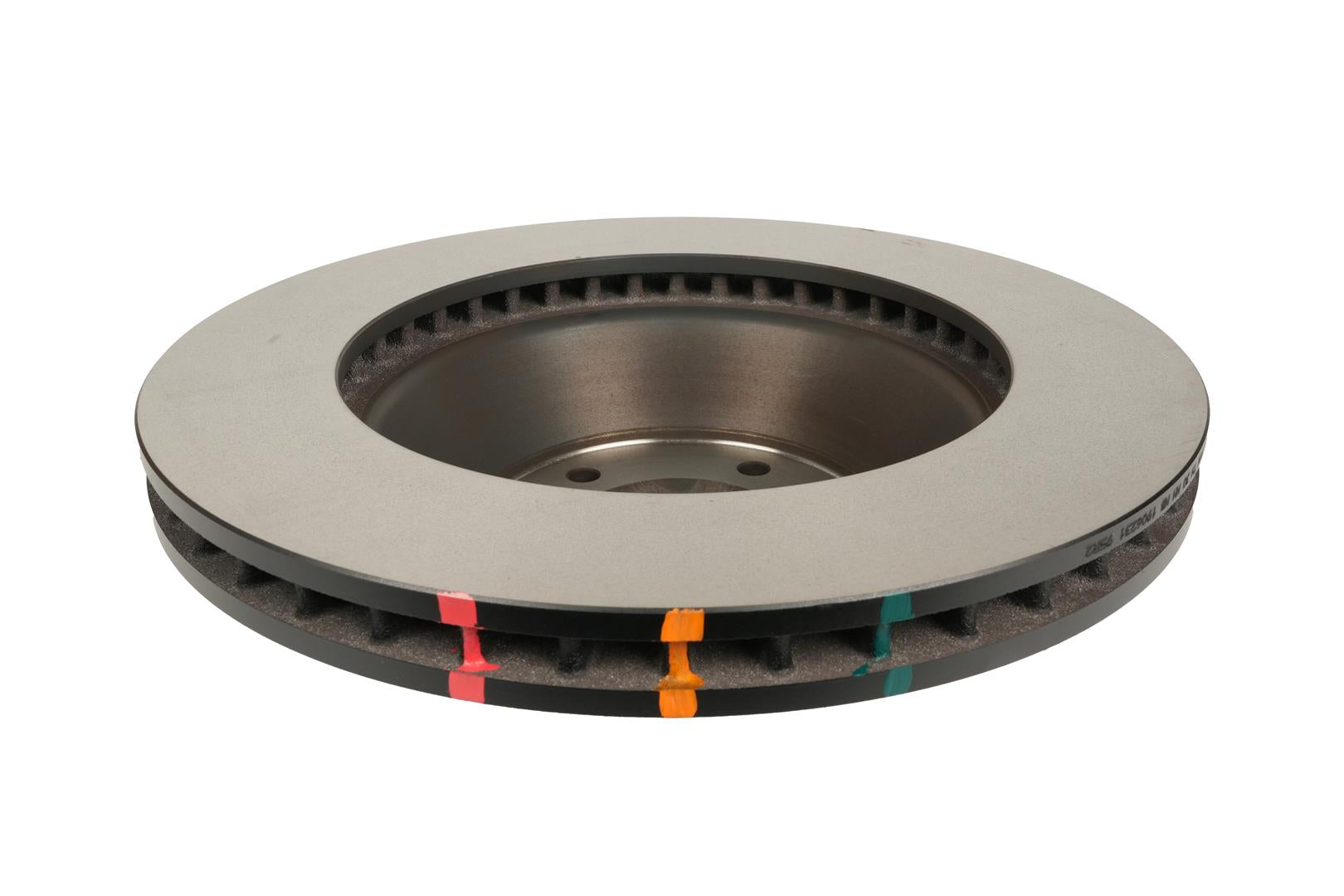

DBA42024

4000 Series disc brake rotors are a direct replacement single piece brake rotor, designed for drivers seeking upgraded braking above and beyond standard OE levels.

4000 Series HD features a smooth OE style rotor finish, popular for drivers looking for the benefits of a 4000 Series rotor but requiring an OE style look, such as controlled race divisions.

Cast from high carbon alloyed iron and undergoing Thermal Stability Profiling, DBA’s metallurgy can handle the increased stress and heat generated under intense braking applications, time and time again.

Featuring DBA’s Kangaroo Paw ventilation that implements a series of 144 diamond and teardrop patterned pillars, DBA achieves up to a 30% increase in surface area and 20% improvement in cooling efficiency (as compared to a traditional straight vane design).

Axle	Front
Diameter [mm]	362
Height [mm]	82,5
Disc Vent	Kangaroo Paw
Thickness [mm]	32
Minimum Thickness [mm]	30
Inner Diameter [mm]	71,5
Tech Bulletins	Bedding in Brakes
Tech Bulletins	How to clean a Disc Rotor before fitting
Tech Bulletins	Motorsport - Important Info

Compatibility
HSV	CLUBSPORT	6.0 V8 LS2 (2004-2006)	2004-2006	Front	Disc Diameter [mm]: 362
HSV	GTO	5.7 V8 LS1 (2001-2004)	2001-2004	Front	Disc Diameter [mm]: 362
HSV	GTO	6.0 V8 LS2 (2004-2007)	2004-2007	Front	Disc Diameter [mm]: 362
HSV	SENATOR	6.0 V8 LS2 (2004-2006)	2004-2006	Front	Disc Diameter [mm]: 362
HSV	SV6000	6.0 V8 LS2 (2005-2006)	2005-2006	Front	Disc Diameter [mm]: 362
