DBA
DBA42114S
DBA42114S
Prezzo di listino
€269,73 EUR
Prezzo di listino
Prezzo scontato
€269,73 EUR
Quantità
Impossibile caricare la disponibilità di ritiro
| Feature Description | Advantage | Benefit |

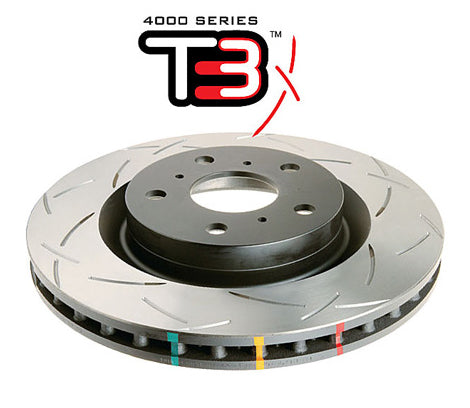

 "T3 Slot 48 precision CNC machined slots"
|
Tri-Symmetrical curve slots dampens the vibration harmonics or noise | A quieter, responsive and smoother brake pedal feel |
| Increased number of out-gassing exit points for brake pad friction gasses to escape through | Increases the consistency and effectiveness of every brake stop | |
| Universal slot design | Eliminates the need for left and right discs | |
 "KANGAROO_PAW") Kangaroo Paw – 144 diamond and tear drop pillar ventilation system
|
Increased surface area resulting in greater heat dissipation | Minimises brake fade and increases braking effectiveness |
| Increased surface area resulting in greater heat dissipation | Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs | |
 XG150 High Carbon Alloyed Iron
|
An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermal Stability Profiling
|
Special formulation designed to respond to DBA’s TSP process | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermographic Temperature Monitoring
|
Heat paint markings change colour at specific temperature thresholds | Offers the driver a clear indication of peak braking temperatures |
| When temperature thresholds are exceeded paint markings will permanently change colours | Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims | |
 Paint protection on non-friction areas
|
Reduces corrosion | Stops any unsightly rust formation |
| Enhances appearance | Adds value to the product |
| Diameter [mm] | 300 |
| Disc Vent | Kangaroo Paw |
| Number of Holes | 5 |
| Inner Diameter [mm] | 71 |
| Minimum Thickness [mm] | 17,4 |
| Thickness [mm] | 19 |
| Height [mm] | 35 |
| Pitch Circle [mm] | 114.3 |
| Stage | Stage 4 |
| Tech Bulletins | Bedding in Brakes |
| Tech Bulletins | How to clean a Disc Rotor before fitting |
| Tech Bulletins | Motorsport - Important Info |
| ECE R90 number | E11*90R02/06*60520*00 |
| Compatibility | |||||
|---|---|---|---|---|---|
| FORD | Mustang (5th Generation) | 3.7 (2010-2014) | 2010-2014 | Rear | Disc Diameter [mm]: 300 |
| FORD | Mustang (5th Generation) | 3.7 Auto (2013-2014) | 2013-2014 | Rear | Disc Diameter [mm]: 300 |
| FORD | Mustang (5th Generation) | 3.7 Performance Package (2013-2014) | 2013-2014 | Rear | Disc Diameter [mm]: 300 |
| FORD | Mustang (5th Generation) | 4.0 (2005-2010) | 2005-2010 | Rear | Disc Diameter [mm]: 300 |
| FORD | Mustang (5th Generation) | 4.0 (2010-2011) | 2010-2011 | Rear | Disc Diameter [mm]: 300 |
| FORD | Mustang (5th Generation) | 4.6 GT (2005-2010) | 2005-2010 | Rear | Disc Diameter [mm]: 300 |
| FORD | Mustang (5th Generation) | 4.6 GT (2010-2011) | 2010-2011 | Rear | Disc Diameter [mm]: 300 |
| FORD | Mustang (5th Generation) | 5.0 (2010-2014) | 2010-2014 | Rear | Disc Diameter [mm]: 300 |
| FORD | Mustang (5th Generation) Shelby | 5.4 Supercharged (GT500) 550BHP (2006-2012) | 2006-2012 | Rear | Disc Diameter [mm]: 300 |
| FORD | Mustang (5th Generation) Shelby | 5.8 Supercharged (GT500) 662BHP (2012) | 2012 | Rear | Disc Diameter [mm]: 300 |
