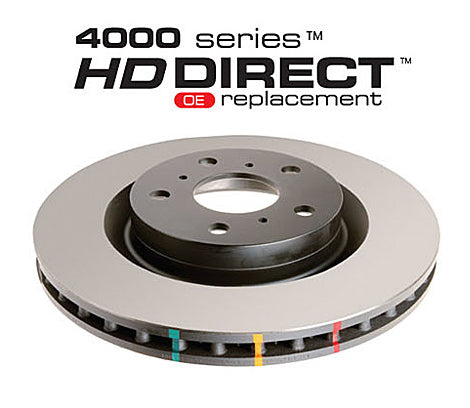

DBA42576

4000 Series disc brake rotors are a direct replacement single piece brake rotor, designed for drivers seeking upgraded braking above and beyond standard OE levels.

4000 Series HD features a smooth OE style rotor finish, popular for drivers looking for the benefits of a 4000 Series rotor but requiring an OE style look, such as controlled race divisions.

Cast from high carbon alloyed iron and undergoing Thermal Stability Profiling, DBA’s metallurgy can handle the increased stress and heat generated under intense braking applications, time and time again.

Featuring DBA’s Kangaroo Paw ventilation that implements a series of 144 diamond and teardrop patterned pillars, DBA achieves up to a 30% increase in surface area and 20% improvement in cooling efficiency (as compared to a traditional straight vane design).

Diameter [mm]	300
Disc Vent	Vented
Number of Holes	5
Inner Diameter [mm]	68
Minimum Thickness [mm]	20
Thickness [mm]	22
Height [mm]	35.5
Pitch Circle [mm]	112
Tech Bulletins	Bedding in Brakes
Tech Bulletins	How to clean a Disc Rotor before fitting
Tech Bulletins	Motorsport - Important Info
ECE R90 number	E11*90R02/06*59751*00

Compatibility
AUDI	A4 Convertible	3.2 (2005-2009)	2005-2009	Rear	Brake Pads: DB1865	Disc Diameter [mm]: 300
AUDI	A4 Convertible quattro	3.2 (2005-2009)	2005-2009	Rear	Brake Pads: DB2192	Disc Diameter [mm]: 300
AUDI	S4 B6	4.2 344BHP (2003-2005)	2003-2005	Rear	Brake Pads: DB2192	Disc Diameter [mm]: 300
AUDI	S4 B7	4.2 344BHP (2005-2009)	2005-2009	Rear	Brake Pads: DB2192	Disc Diameter [mm]: 300
