DBA

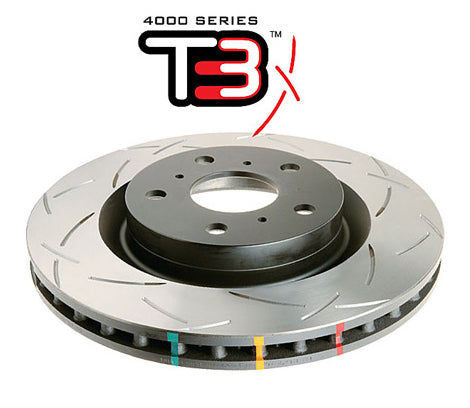

DBA42602S
DBA42602S
Prezzo di listino
€329,39 EUR
Prezzo di listino
Prezzo scontato
€329,39 EUR
Quantità
Impossibile caricare la disponibilità di ritiro
| Feature Description | Advantage | Benefit |
 "T3 Slot 48 precision CNC machined slots"
|
Tri-Symmetrical curve slots dampens the vibration harmonics or noise | A quieter, responsive and smoother brake pedal feel |
| Increased number of out-gassing exit points for brake pad friction gasses to escape through | Increases the consistency and effectiveness of every brake stop | |
| Universal slot design | Eliminates the need for left and right discs | |
 "KANGAROO_PAW") Kangaroo Paw – 144 diamond and tear drop pillar ventilation system
|
Increased surface area resulting in greater heat dissipation | Minimises brake fade and increases braking effectiveness |
| Increased surface area resulting in greater heat dissipation | Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs | |
 XG150 High Carbon Alloyed Iron
|
An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermal Stability Profiling
|
Special formulation designed to respond to DBA’s TSP process | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermographic Temperature Monitoring
|
Heat paint markings change colour at specific temperature thresholds | Offers the driver a clear indication of peak braking temperatures |
| When temperature thresholds are exceeded paint markings will permanently change colours | Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims | |
 Paint protection on non-friction areas
|
Reduces corrosion | Stops any unsightly rust formation |
| Enhances appearance | Adds value to the product |
| Diameter [mm] | 321 |
| Disc Vent | Kangaroo Paw |
| Number of Holes | 5 |
| Inner Diameter [mm] | 67.4 |
| Minimum Thickness [mm] | 27 |
| Thickness [mm] | 30 |
| Height [mm] | 51.3 |
| Pitch Circle [mm] | 120 |
| Stage | Stage 4 |
| Tech Bulletins | Bedding in Brakes |
| Tech Bulletins | How to clean a Disc Rotor before fitting |
| Tech Bulletins | Motorsport - Important Info |
| ECE R90 number | E11*90R02/06*60514*00 |
| Compatibility | |||||||
|---|---|---|---|---|---|---|---|
| CHEVROLET | Camaro (5th Gen) | 3.6 (2009-2015) | 2009-2015 | Brake Caliper: Mando | Front | Brake Pads: DB1925 | Disc Diameter [mm]: 321 |
| CHEVROLET | Malibu | 2.0 TD (2012-) | 2012- | Brake Caliper: Mando | Front | Brake Pads: DB1925 | Disc Diameter [mm]: 321 |
| CHEVROLET | Malibu | 2.4 (2012-) | 2012- | Brake Caliper: Mando | Front | Brake Pads: DB1925 | Disc Diameter [mm]: 321 |
| OPEL | Insignia | 1.6 TD 120BHP (2015-2017) | 2015-2017 | Brake Caliper: Mando | Front | Brake Pads: DB1925 | Disc Diameter [mm]: 321 |
| OPEL | Insignia | 1.6 TD 136BHP (2015-2017) | 2015-2017 | Brake Caliper: Mando | Front | Brake Pads: DB1925 | Disc Diameter [mm]: 321 |
| OPEL | Insignia | 1.6 Turbo 170BHP (2013-2017) | 2013-2017 | Brake Caliper: Mando | Front | Brake Pads: DB1925 | Disc Diameter [mm]: 321 |
| OPEL | Insignia | 1.6 Turbo 180BHP (2009-2013) | 2009-2013 | Brake Caliper: Mando | Front | Brake Pads: DB1925 | Disc Diameter [mm]: 321 |
| OPEL | Insignia | 2.0 TD 140BHP (2013-2015) | 2013-2015 | Brake Caliper: Mando | Front | Brake Pads: DB1925 | Disc Diameter [mm]: 321 |
| OPEL | Insignia | 2.0 TD 160BHP (2008-2013) | 2008-2013 | Brake Caliper: Mando | Front | Brake Pads: DB1925 | Disc Diameter [mm]: 321 |
| OPEL | Insignia | 2.0 TD 163BHP (2013-2015) | 2013-2015 | Brake Caliper: Mando | Front | Brake Pads: DB1925 | Disc Diameter [mm]: 321 |
| OPEL | Insignia | 2.0 TD 170BHP (2015-2017) | 2015-2017 | Brake Caliper: Mando | Front | Brake Pads: DB1925 | Disc Diameter [mm]: 321 |
| OPEL | Insignia | 2.0 Turbo 220BHP (2008-2013) | 2008-2013 | Brake Caliper: Mando | Front | Brake Pads: DB1925 | Disc Diameter [mm]: 321 |
| OPEL | Insignia | 2.0 Turbo 220BHP 4WD (2008-2011) | 2008-2011 | Brake Caliper: Mando | Front | Brake Pads: DB1925 | Disc Diameter [mm]: 321 |
| OPEL | Insignia | 2.0 Turbo 250BHP (2013-2017) | 2013-2017 | Brake Caliper: Mando | Front | Brake Pads: DB1925 | Disc Diameter [mm]: 321 |
| OPEL | Insignia | 2.0 Turbo 250BHP 4WD (2011-2013) | 2011-2013 | Brake Caliper: Mando | Front | Brake Pads: DB1925 | Disc Diameter [mm]: 321 |
| OPEL | Insignia | 2.0 Twin TD 190BHP (2009-2012) | 2009-2012 | Brake Caliper: Mando | Front | Brake Pads: DB1925 | Disc Diameter [mm]: 321 |
| OPEL | Insignia | 2.0 Twin TD 195BHP (2012-2015) | 2012-2015 | Brake Caliper: Mando | Front | Brake Pads: DB1925 | Disc Diameter [mm]: 321 |
| SAAB | 9-5 | 1.6 Turbo (2010-2011) | 2010-2011 | Brake Caliper: Mando | Front | Brake Pads: DB1925 | Disc Diameter [mm]: 321 |
| SAAB | 9-5 | 2.0 TD 160BHP (2010-2011) | 2010-2011 | Brake Caliper: Mando | Front | Brake Pads: DB1925 | Disc Diameter [mm]: 321 |
| SAAB | 9-5 | 2.0 Turbo (2010-2011) | 2010-2011 | Brake Caliper: Mando | Front | Brake Pads: DB1925 | Disc Diameter [mm]: 321 |
| SAAB | 9-5 | 2.0 Turbo XWD (2010-2011) | 2010-2011 | Brake Caliper: Mando | Front | Brake Pads: DB1925 | Disc Diameter [mm]: 321 |
| SAAB | 9-5 | 2.0 Twin TD 190BHP (2010-2011) | 2010-2011 | Brake Caliper: Mando | Front | Brake Pads: DB1925 | Disc Diameter [mm]: 321 |
| VAUXHALL | Insignia | 1.6 TD 120BHP (2015-2017) | 2015-2017 | Brake Caliper: Mando | Front | Brake Pads: DB1925 | Disc Diameter [mm]: 321 |
| VAUXHALL | Insignia | 1.6 TD 136BHP (2015-2017) | 2015-2017 | Brake Caliper: Mando | Front | Brake Pads: DB1925 | Disc Diameter [mm]: 321 |
| VAUXHALL | Insignia | 1.6 Turbo 170BHP (2012-2017) | 2012-2017 | Brake Caliper: Mando | Front | Brake Pads: DB1925 | Disc Diameter [mm]: 321 |
| VAUXHALL | Insignia | 1.6 Turbo 180BHP (2009-2013) | 2009-2013 | Brake Caliper: Mando | Front | Brake Pads: DB1925 | Disc Diameter [mm]: 321 |
| VAUXHALL | Insignia | 2.0 TD 140BHP (2013-2015) | 2013-2015 | Brake Caliper: Mando | Front | Brake Pads: DB1925 | Disc Diameter [mm]: 321 |
| VAUXHALL | Insignia | 2.0 TD 160BHP (2008-2015) | 2008-2015 | Brake Caliper: Mando | Front | Brake Pads: DB1925 | Disc Diameter [mm]: 321 |
| VAUXHALL | Insignia | 2.0 TD 163BHP (2013-2015) | 2013-2015 | Brake Caliper: Mando | Front | Brake Pads: DB1925 | Disc Diameter [mm]: 321 |
| VAUXHALL | Insignia | 2.0 TD 170BHP (2015-2017) | 2015-2017 | Brake Caliper: Mando | Front | Brake Pads: DB1925 | Disc Diameter [mm]: 321 |
| VAUXHALL | Insignia | 2.0 Turbo 220BHP (2008-2017) | 2008-2017 | Brake Caliper: Mando | Front | Brake Pads: DB1925 | Disc Diameter [mm]: 321 |
| VAUXHALL | Insignia | 2.0 Turbo 220BHP 4WD (2008-2011) | 2008-2011 | Brake Caliper: Mando | Front | Brake Pads: DB1925 | Disc Diameter [mm]: 321 |
| VAUXHALL | Insignia | 2.0 Turbo 250BHP (2013-2017) | 2013-2017 | Brake Caliper: Mando | Front | Brake Pads: DB1925 | Disc Diameter [mm]: 321 |
| VAUXHALL | Insignia | 2.0 Turbo 250BHP 4WD (2011-2013) | 2011-2013 | Brake Caliper: Mando | Front | Brake Pads: DB1925 | Disc Diameter [mm]: 321 |
| VAUXHALL | Insignia | 2.0 Twin TD 190BHP (2009-2012) | 2009-2012 | Brake Caliper: Mando | Front | Brake Pads: DB1925 | Disc Diameter [mm]: 321 |
| VAUXHALL | Insignia | 2.0 Twin TD 195BHP (2012-2015) | 2012-2015 | Brake Caliper: Mando | Front | Brake Pads: DB1925 | Disc Diameter [mm]: 321 |
