DBA4417

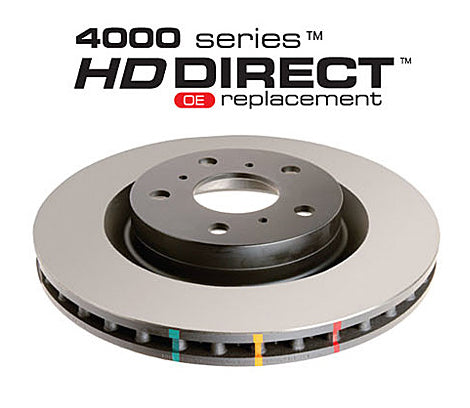

4000 Series disc brake rotors are a direct replacement single piece brake rotor, designed for drivers seeking upgraded braking above and beyond standard OE levels.

4000 Series HD features a smooth OE style rotor finish, popular for drivers looking for the benefits of a 4000 Series rotor but requiring an OE style look, such as controlled race divisions.

Cast from high carbon alloyed iron and undergoing Thermal Stability Profiling, DBA’s metallurgy can handle the increased stress and heat generated under intense braking applications, time and time again.

Featuring DBA’s Kangaroo Paw ventilation that implements a series of 144 diamond and teardrop patterned pillars, DBA achieves up to a 30% increase in surface area and 20% improvement in cooling efficiency (as compared to a traditional straight vane design).

Diameter [mm]	294
Disc Vent	Kangaroo Paw
Number of Holes	5
Inner Diameter [mm]	69
Minimum Thickness [mm]	22,4
Thickness [mm]	24
Height [mm]	46
Pitch Circle [mm]	114.3
Tech Bulletins	Bedding in Brakes
Tech Bulletins	How to clean a Disc Rotor before fitting
Tech Bulletins	Motorsport - Important Info
ECE R90 number	E11*90R02/06*59762*00

Compatibility
CITROEN	C-Crosser	2.2 TD (2007-2012)	2007-2012	Brake Caliper: Akebono	Front	Brake Pads: DB1223	Disc Diameter [mm]: 294
CITROEN	C-Crosser	2.4 (2008-2012)	2008-2012	Brake Caliper: Akebono	Front	Brake Pads: DB1223	Disc Diameter [mm]: 294
CITROEN	C-Crosser Enterprise	2.2 TD (2009-2012)	2009-2012	Brake Caliper: Akebono	Front	Brake Pads: DB1223	Disc Diameter [mm]: 294
MITSUBISHI	Galant	2.0 Twin Turbo VR4 E84A (1993-1997)	1993-1997	Brake Caliper: Akebono	Front	Brake Pads: DB1223	Disc Diameter [mm]: 294
MITSUBISHI	Galant	2.5 Twin Turbo VR4 EC5A (1997-2003)	1997-2003	Brake Caliper: Akebono	Front	Brake Pads: DB1223	Disc Diameter [mm]: 294
MITSUBISHI	Lancer	2.0 (2007-2013)	2007-2013	Brake Caliper: Akebono	Front	Brake Pads: DB1223	Disc Diameter [mm]: 294
MITSUBISHI	Lancer	2.0 Turbo (2009-2013)	2009-2013	Brake Caliper: Akebono	Front	Brake Pads: DB1223	Disc Diameter [mm]: 294
MITSUBISHI	Lancer Evo 4	2.0 Turbo (1996-1997)	1996-1997	Brake Caliper: Akebono	Front	Brake Pads: DB1223	Disc Diameter [mm]: 294
MITSUBISHI	Lancer Evo 5	2.0 Turbo RS (1997-1999)	1997-1999	Brake Caliper: Akebono	Front	Brake Pads: DB1223	Disc Diameter [mm]: 294
MITSUBISHI	Legnum	2.5 Twin Turbo VR4 (1996-2002)	1996-2002	Brake Caliper: Akebono	Front	Brake Pads: DB1223	Disc Diameter [mm]: 294
MITSUBISHI	Outlander	2.0 (2012-)	2012-	Brake Caliper: Akebono	Front	Brake Pads: DB1223	Disc Diameter [mm]: 294
MITSUBISHI	Outlander	2.0 Hybrid PHEV 121BHP (2013-2018)	2013-2018	Brake Caliper: Akebono	Front	Brake Pads: DB1223	Disc Diameter [mm]: 294
MITSUBISHI	Outlander	2.0 TD (2007-2010)	2007-2010	Brake Caliper: Akebono	Front	Brake Pads: DB1223	Disc Diameter [mm]: 294
MITSUBISHI	Outlander	2.2 TD (2007-2010)	2007-2010	Brake Caliper: Akebono	Front	Brake Pads: DB1223	Disc Diameter [mm]: 294
MITSUBISHI	Outlander	2.2 TD (2010-2012)	2010-2012	Brake Caliper: Akebono	Front	Brake Pads: DB1223	Disc Diameter [mm]: 294
MITSUBISHI	Outlander	2.2 TD (2012-)	2012-	Brake Caliper: Akebono	Front	Brake Pads: DB1223	Disc Diameter [mm]: 294
MITSUBISHI	Outlander	2.4 (2003-2007)	2003-2007	Brake Caliper: Akebono	Front	Brake Pads: DB1223	Disc Diameter [mm]: 294
MITSUBISHI	Outlander	2.4 (2007-2010)	2007-2010	Brake Caliper: Akebono	Front	Brake Pads: DB1223	Disc Diameter [mm]: 294
PEUGEOT	4007	2.2 TD (2007-2012)	2007-2012	Brake Caliper: Akebono	Front	Brake Pads: DB1223	Disc Diameter [mm]: 294
PEUGEOT	4007	2.4 (2008-2012)	2008-2012	Brake Caliper: Akebono	Front	Brake Pads: DB1223	Disc Diameter [mm]: 294
