DBA
DBA4543S
DBA4543S
Prezzo di listino
€211,24 EUR
Prezzo di listino
Prezzo scontato
€211,24 EUR
Quantità
Impossibile caricare la disponibilità di ritiro
| Feature Description | Advantage | Benefit |

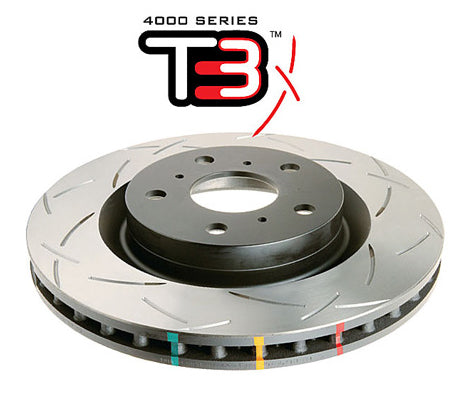

 "T3 Slot 48 precision CNC machined slots"
|
Tri-Symmetrical curve slots dampens the vibration harmonics or noise | A quieter, responsive and smoother brake pedal feel |
| Increased number of out-gassing exit points for brake pad friction gasses to escape through | Increases the consistency and effectiveness of every brake stop | |
| Universal slot design | Eliminates the need for left and right discs | |
 "KANGAROO_PAW") Kangaroo Paw – 144 diamond and tear drop pillar ventilation system
|
Increased surface area resulting in greater heat dissipation | Minimises brake fade and increases braking effectiveness |
| Increased surface area resulting in greater heat dissipation | Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs | |
 XG150 High Carbon Alloyed Iron
|
An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermal Stability Profiling
|
Special formulation designed to respond to DBA’s TSP process | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermographic Temperature Monitoring
|
Heat paint markings change colour at specific temperature thresholds | Offers the driver a clear indication of peak braking temperatures |
| When temperature thresholds are exceeded paint markings will permanently change colours | Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims | |
 Paint protection on non-friction areas
|
Reduces corrosion | Stops any unsightly rust formation |
| Enhances appearance | Adds value to the product |
| Diameter [mm] | 259 |
| Disc Vent | Solid |
| Number of Holes | 4 |
| Inner Diameter [mm] | 64 |
| Minimum Thickness [mm] | 8,4 |
| Thickness [mm] | 10 |
| Height [mm] | 44 |
| Pitch Circle [mm] | 100 |
| Stage | Stage 4 |
| Tech Bulletins | Bedding in Brakes |
| Tech Bulletins | How to clean a Disc Rotor before fitting |
| Tech Bulletins | Motorsport - Important Info |
| Compatibility | |||||||
|---|---|---|---|---|---|---|---|
| MINI | Mini Clubman (R55) | 1.4 (2009-2010) | 2009-2010 | Brake Caliper: TRW | Rear | Brake Pads: DB2214 | Disc Diameter [mm]: 259 |
| MINI | Mini Clubman (R55) | 1.6 (2010-2015) | 2010-2015 | Brake Caliper: TRW | Rear | Brake Pads: DB2214 | Disc Diameter [mm]: 259 |
| MINI | Mini Clubman (R55) | 1.6 Cooper (2007-2015) | 2007-2015 | Brake Caliper: TRW | Rear | Brake Pads: DB2214 | Disc Diameter [mm]: 259 |
| MINI | Mini Clubman (R55) | 1.6 TD (2007-2015) | 2007-2015 | Brake Caliper: TRW | Rear | Brake Pads: DB2214 | Disc Diameter [mm]: 259 |
| MINI | Mini Clubman (R55) | 1.6 Turbo Cooper S (2007-2015) | 2007-2015 | Brake Caliper: TRW | Rear | Brake Pads: DB2214 | Disc Diameter [mm]: 259 |
| MINI | Mini Clubman (R55) | 2.0 TD (2011-2015) | 2011-2015 | Brake Caliper: TRW | Rear | Brake Pads: DB2214 | Disc Diameter [mm]: 259 |
| MINI | Mini Clubvan | 1.6 (2012-2014) | 2012-2014 | Brake Caliper: TRW | Rear | Brake Pads: DB2214 | Disc Diameter [mm]: 259 |
| MINI | Mini Clubvan | 1.6 TD (2012-2014) | 2012-2014 | Brake Caliper: TRW | Rear | Brake Pads: DB2214 | Disc Diameter [mm]: 259 |
| MINI | Mini Convertible (R52) | 1.6 (2004-2009) | 2004-2009 | Brake Caliper: ATE | Rear | Brake Pads: DB1687 | Disc Diameter [mm]: 259 |
| MINI | Mini Convertible (R52) | 1.6 Cooper (2004-2008) | 2004-2008 | Brake Caliper: ATE | Rear | Brake Pads: DB1687 | Disc Diameter [mm]: 259 |
| MINI | Mini Convertible (R52) | 1.6 Supercharged Cooper S (2004-2008) | 2004-2008 | Brake Caliper: ATE | Rear | Brake Pads: DB1687 | Disc Diameter [mm]: 259 |
| MINI | Mini Convertible (R52) | 1.6 Supercharged Works (2005-2007) | 2005-2007 | Brake Caliper: ATE | Rear | Brake Pads: DB1687 | Disc Diameter [mm]: 259 |
| MINI | Mini Convertible (R57) | 1.6 (2010-2016) | 2010-2016 | Brake Caliper: TRW | Rear | Brake Pads: DB2214 | Disc Diameter [mm]: 259 |
| MINI | Mini Convertible (R57) | 1.6 Cooper (2009-2016) | 2009-2016 | Brake Caliper: TRW | Rear | Brake Pads: DB2214 | Disc Diameter [mm]: 259 |
| MINI | Mini Convertible (R57) | 1.6 TD (2010-2016) | 2010-2016 | Brake Caliper: TRW | Rear | Brake Pads: DB2214 | Disc Diameter [mm]: 259 |
| MINI | Mini Convertible (R57) | 1.6 Turbo Cooper S (2009-2016) | 2009-2016 | Brake Caliper: TRW | Rear | Brake Pads: DB2214 | Disc Diameter [mm]: 259 |
| MINI | Mini Convertible (R57) | 2.0 TD (2011-2016) | 2011-2016 | Brake Caliper: TRW | Rear | Brake Pads: DB2214 | Disc Diameter [mm]: 259 |
| MINI | Mini Coupe (R58) | 1.6 Cooper (2011-2015) | 2011-2015 | Brake Caliper: TRW | Rear | Brake Pads: DB2214 | Disc Diameter [mm]: 259 |
| MINI | Mini Coupe (R58) | 1.6 Turbo Cooper S (2011-2015) | 2011-2015 | Brake Caliper: TRW | Rear | Brake Pads: DB2214 | Disc Diameter [mm]: 259 |
| MINI | Mini Coupe (R58) | 2.0 TD (2011-2015) | 2011-2015 | Brake Caliper: TRW | Rear | Brake Pads: DB2214 | Disc Diameter [mm]: 259 |
| MINI | Mini Hatch (1st Gen) (R50) | 1.4 TD (2003-2006) | 2003-2006 | Brake Caliper: ATE | Rear | Brake Pads: DB1687 | Disc Diameter [mm]: 259 |
| MINI | Mini Hatch (1st Gen) (R50) | 1.6 (2001-2003) | 2001-2003 | Brake Caliper: ATE | Rear | Disc Diameter [mm]: 259 | |
| MINI | Mini Hatch (1st Gen) (R50) | 1.6 (2003-2006) | 2003-2006 | Brake Caliper: ATE | Rear | Brake Pads: DB1687 | Disc Diameter [mm]: 259 |
| MINI | Mini Hatch (1st Gen) (R50) | 1.6 Cooper (2001-2003) | 2001-2003 | Brake Caliper: ATE | Rear | Disc Diameter [mm]: 259 | |
| MINI | Mini Hatch (1st Gen) (R50) | 1.6 Cooper (2003-2006) | 2003-2006 | Brake Caliper: ATE | Rear | Brake Pads: DB1687 | Disc Diameter [mm]: 259 |
| MINI | Mini Hatch (1st Gen) (R53) | 1.6 Supercharged Cooper S (2001-2003) | 2001-2003 | Brake Caliper: ATE | Rear | Disc Diameter [mm]: 259 | |
| MINI | Mini Hatch (1st Gen) (R53) | 1.6 Supercharged Cooper S (2003-2006) | 2003-2006 | Brake Caliper: ATE | Rear | Brake Pads: DB1687 | Disc Diameter [mm]: 259 |
| MINI | Mini Hatch (1st Gen) (R53) | 1.6 Supercharged Works (2001-2003) | 2001-2003 | Brake Caliper: ATE | Rear | Disc Diameter [mm]: 259 | |
| MINI | Mini Hatch (1st Gen) (R53) | 1.6 Supercharged Works (2003-2006) | 2003-2006 | Brake Caliper: ATE | Rear | Brake Pads: DB1687 | Disc Diameter [mm]: 259 |
| MINI | Mini Hatch (2nd Gen) (R56) | 1.4 (2006-2010) | 2006-2010 | Brake Caliper: TRW | Rear | Brake Pads: DB2214 | Disc Diameter [mm]: 259 |
| MINI | Mini Hatch (2nd Gen) (R56) | 1.6 (2006-2013) | 2006-2013 | Brake Caliper: TRW | Rear | Brake Pads: DB2214 | Disc Diameter [mm]: 259 |
| MINI | Mini Hatch (2nd Gen) (R56) | 1.6 Cooper (2006-2013) | 2006-2013 | Brake Caliper: TRW | Rear | Brake Pads: DB2214 | Disc Diameter [mm]: 259 |
| MINI | Mini Hatch (2nd Gen) (R56) | 1.6 Supercharged Works (2006-2008) | 2006-2008 | Brake Caliper: ATE | Rear | Brake Pads: DB1687 | Disc Diameter [mm]: 259 |
| MINI | Mini Hatch (2nd Gen) (R56) | 1.6 TD (2006-2013) | 2006-2013 | Brake Caliper: TRW | Rear | Brake Pads: DB2214 | Disc Diameter [mm]: 259 |
| MINI | Mini Hatch (2nd Gen) (R56) | 1.6 Turbo Cooper S (2006-2013) | 2006-2013 | Brake Caliper: TRW | Rear | Brake Pads: DB2214 | Disc Diameter [mm]: 259 |
| MINI | Mini Hatch (2nd Gen) (R56) | 2.0 TD (2011-2013) | 2011-2013 | Brake Caliper: TRW | Rear | Brake Pads: DB2214 | Disc Diameter [mm]: 259 |
| MINI | Mini Roadster (R59) | 1.6 Cooper (2012-2015) | 2012-2015 | Brake Caliper: TRW | Rear | Brake Pads: DB2214 | Disc Diameter [mm]: 259 |
| MINI | Mini Roadster (R59) | 1.6 Turbo Cooper S (2012-2015) | 2012-2015 | Brake Caliper: TRW | Rear | Brake Pads: DB2214 | Disc Diameter [mm]: 259 |
| MINI | Mini Roadster (R59) | 2.0 TD (2012-2015) | 2012-2015 | Brake Caliper: TRW | Rear | Brake Pads: DB2214 | Disc Diameter [mm]: 259 |
