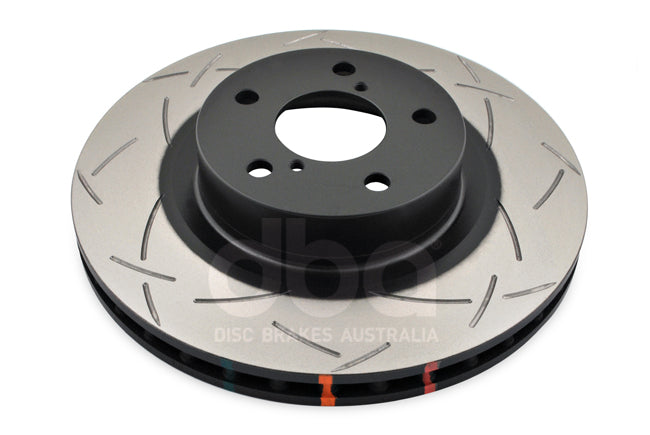

DBA4648S

Feature Description	Advantage	Benefit
"T3 Slot 48 precision CNC machined slots"	Tri-Symmetrical curve slots dampens the vibration harmonics or noise	A quieter, responsive and smoother brake pedal feel
	Increased number of out-gassing exit points for brake pad friction gasses to escape through	Increases the consistency and effectiveness of every brake stop
	Universal slot design	Eliminates the need for left and right discs
Kangaroo Paw – 144 diamond and tear drop pillar ventilation system	Increased surface area resulting in greater heat dissipation	Minimises brake fade and increases braking effectiveness
	Increased surface area resulting in greater heat dissipation	Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs
XG150 High Carbon Alloyed Iron	An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time	Minimises warping and cracking and prolongs the service life of the rotor
Thermal Stability Profiling	Special formulation designed to respond to DBA’s TSP process	Minimises warping and cracking and prolongs the service life of the rotor
Thermographic Temperature Monitoring	Heat paint markings change colour at specific temperature thresholds	Offers the driver a clear indication of peak braking temperatures
	When temperature thresholds are exceeded paint markings will permanently change colours	Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims
Paint protection on non-friction areas	Reduces corrosion	Stops any unsightly rust formation
	Enhances appearance	Adds value to the product

Diameter [mm]	277
Disc Vent	Kangaroo Paw
Number of Holes	5
Inner Diameter [mm]	58
Minimum Thickness [mm]	22
Thickness [mm]	24
Height [mm]	57
Pitch Circle [mm]	100
Stage	Stage 4
Tech Bulletins	Bedding in Brakes
Tech Bulletins	How to clean a Disc Rotor before fitting
Tech Bulletins	Motorsport - Important Info
ECE R90 number	E11 90R-02C01704/72743

Compatibility
SUBARU	BRZ	2.0 200BHP (2012-2022)	2012-2022	Brake Caliper: Tokico	Front	Brake Pads: DB1491	Disc Diameter [mm]: 277
SUBARU	Forester	2.0 (1997-2002)	1997-2002		Front	Brake Pads: DB1342	Disc Diameter [mm]: 277
SUBARU	Forester	2.0 (2002-2005)	2002-2005	Brake Caliper: Tokico	Front	Brake Pads: DB1491	Disc Diameter [mm]: 277
SUBARU	Forester	2.0 (2005-2008)	2005-2008	Brake Caliper: Tokico	Front	Brake Pads: DB1491	Disc Diameter [mm]: 277
SUBARU	Forester	2.0 (2008-2013)	2008-2013	Brake Caliper: Tokico	Front	Brake Pads: DB1491	Disc Diameter [mm]: 277
SUBARU	Forester SF5	2.0 Turbo (1996-2003)	1996-2003		Front	Brake Pads: DB1342	Disc Diameter [mm]: 277
SUBARU	Impreza	1.5 105BHP (2006-2008)	2006-2008		Front		Disc Diameter [mm]: 277
SUBARU	Impreza	1.5 R 105BHP (2007-2011)	2007-2011	Brake Caliper: Tokico	Front	Brake Pads: DB1491	Disc Diameter [mm]: 277
SUBARU	Impreza	1.5 R 105BHP (2011-2012)	2011-2012	Brake Caliper: Tokico	Front	Brake Pads: DB1491	Disc Diameter [mm]: 277
SUBARU	Impreza	1.6 112BHP (2014-2017)	2014-2017	Brake Caliper: Tokico	Front	Brake Pads: DB1491	Disc Diameter [mm]: 277
SUBARU	Impreza	2.0 125BHP (2000-2002)	2000-2002		Front	Brake Pads: DB1342	Disc Diameter [mm]: 277
SUBARU	Impreza	2.0 125BHP (2002-2007)	2002-2007	Brake Caliper: Tokico	Front	Brake Pads: DB1491	Disc Diameter [mm]: 277
SUBARU	Impreza	2.0 R 160BHP (2005-2008)	2005-2008	Brake Caliper: Tokico	Front	Brake Pads: DB1491	Disc Diameter [mm]: 277
SUBARU	Impreza	2.0 R 160BHP (2007-2011)	2007-2011	Brake Caliper: Tokico	Front	Brake Pads: DB1491	Disc Diameter [mm]: 277
SUBARU	Impreza	2.0 R 160BHP (2011-2012)	2011-2012	Brake Caliper: Tokico	Front	Brake Pads: DB1491	Disc Diameter [mm]: 277
SUBARU	Impreza	2.0 Turbo (1994-1996)	1994-1996		Front	Brake Pads: DB1185	Disc Diameter [mm]: 277
SUBARU	Impreza	2.0 Turbo (1996-1998)	1996-1998		Front	Brake Pads: DB1342	Disc Diameter [mm]: 277
SUBARU	Impreza Sport	2.0 120BHP (1998-2001)	1998-2001		Front	Brake Pads: DB1363	Disc Diameter [mm]: 277
SUBARU	Impreza Sport	2.0 125BHP (2000-2002)	2000-2002		Front	Brake Pads: DB1342	Disc Diameter [mm]: 277
SUBARU	Impreza Sport	2.0 125BHP (2002-2007)	2002-2007	Brake Caliper: Tokico	Front	Brake Pads: DB1491	Disc Diameter [mm]: 277
SUBARU	Legacy	2.0 (2010-2014)	2010-2014	Brake Caliper: Tokico	Front	Brake Pads: DB1491	Disc Diameter [mm]: 277
SUBARU	Legacy	2.5 156BHP (1999-2003)	1999-2003		Front	Brake Pads: DB1342	Disc Diameter [mm]: 277
SUBARU	Legacy	2.5 165BHP (2003-2009)	2003-2009	Brake Caliper: Tokico	Front	Brake Pads: DB1491	Disc Diameter [mm]: 277
SUBARU	Legacy BC5	2.0 Turbo (1992-1994)	1992-1994		Front	Brake Pads: DB1185	Disc Diameter [mm]: 277
SUBARU	Legacy BD9	2.5 (1996-1999)	1996-1999		Front	Brake Pads: DB1185	Disc Diameter [mm]: 277
SUBARU	Legacy BD9	2.5 150BHP (1996-1999)	1996-1999		Front	Brake Pads: DB1342	Disc Diameter [mm]: 277
SUBARU	Legacy BE5	2.0 (1999-2003)	1999-2003		Front	Brake Pads: DB1342	Disc Diameter [mm]: 277
SUBARU	Legacy BF5	2.0 Turbo (1992-1994)	1992-1994		Front	Brake Pads: DB1185	Disc Diameter [mm]: 277
SUBARU	Legacy BG5	2.0 Twin Turbo (1993-1996)	1993-1996		Front	Brake Pads: DB1185	Disc Diameter [mm]: 277
SUBARU	Legacy BG9	2.5 150BHP (1996-1999)	1996-1999		Front	Brake Pads: DB1342	Disc Diameter [mm]: 277
SUBARU	Legacy BG9 - Not UK	2.5 (1996-1998)	1996-1998		Front	Brake Pads: DB1185	Disc Diameter [mm]: 277
SUBARU	Legacy BH5	2.0 (1999-2003)	1999-2003		Front	Brake Pads: DB1342	Disc Diameter [mm]: 277
SUBARU	Legacy BL5	2.0 (2003-2010)	2003-2010	Brake Caliper: Tokico	Front	Brake Pads: DB1491	Disc Diameter [mm]: 277
SUBARU	Legacy BP5	2.0 (2003-2010)	2003-2010	Brake Caliper: Tokico	Front	Brake Pads: DB1491	Disc Diameter [mm]: 277
SUBARU	Legacy Outback	2.5 150BHP (1996-1999)	1996-1999		Front	Brake Pads: DB1342	Disc Diameter [mm]: 277
TOYOTA	GT86	2.0 200BHP (2012-2022)	2012-2022	Brake Caliper: Tokico	Front	Brake Pads: DB1491	Disc Diameter [mm]: 277
