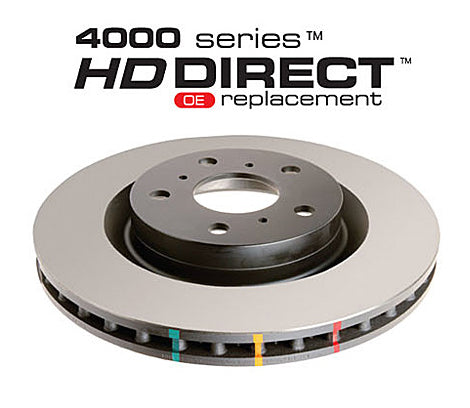

DBA4749

4000 Series disc brake rotors are a direct replacement single piece brake rotor, designed for drivers seeking upgraded braking above and beyond standard OE levels.

4000 Series HD features a smooth OE style rotor finish, popular for drivers looking for the benefits of a 4000 Series rotor but requiring an OE style look, such as controlled race divisions.

Cast from high carbon alloyed iron and undergoing Thermal Stability Profiling, DBA’s metallurgy can handle the increased stress and heat generated under intense braking applications, time and time again.

Featuring DBA’s Kangaroo Paw ventilation that implements a series of 144 diamond and teardrop patterned pillars, DBA achieves up to a 30% increase in surface area and 20% improvement in cooling efficiency (as compared to a traditional straight vane design).

Diameter [mm]	307
Disc Vent	Solid
Number of Holes	5
Inner Diameter [mm]	62
Minimum Thickness [mm]	10,5
Thickness [mm]	12
Height [mm]	63
Pitch Circle [mm]	114.3
Tech Bulletins	Bedding in Brakes
Tech Bulletins	How to clean a Disc Rotor before fitting
Tech Bulletins	Motorsport - Important Info

Compatibility
LEXUS	GS300	3.0 (1998-2005)	1998-2005	Rear	Brake Pads: DB1416	Disc Diameter [mm]: 307
LEXUS	GS430	4.3 (2000-2005)	2000-2005	Rear	Brake Pads: DB1416	Disc Diameter [mm]: 307
LEXUS	IS200	2.0 153BHP (1999-2005)	1999-2005	Rear	Brake Pads: DB1416	Disc Diameter [mm]: 307
LEXUS	IS300	3.0 230BHP (2001-2005)	2001-2005	Rear	Brake Pads: DB1416	Disc Diameter [mm]: 307
LEXUS	SC430	4.3 (2001-2010)	2001-2010	Rear	Brake Pads: DB1416	Disc Diameter [mm]: 307
TOYOTA	Altezza SXE10	2.0 (1998-2001)	1998-2001	Rear	Brake Pads: DB1416	Disc Diameter [mm]: 307
TOYOTA	Altezza SXE10	2.0 (2001-2005)	2001-2005	Rear	Brake Pads: DB1416	Disc Diameter [mm]: 307
TOYOTA	Aristo JZS161	3.0 Twin Turbo Vertex (1997-2005)	1997-2005	Rear	Brake Pads: DB1416	Disc Diameter [mm]: 307
