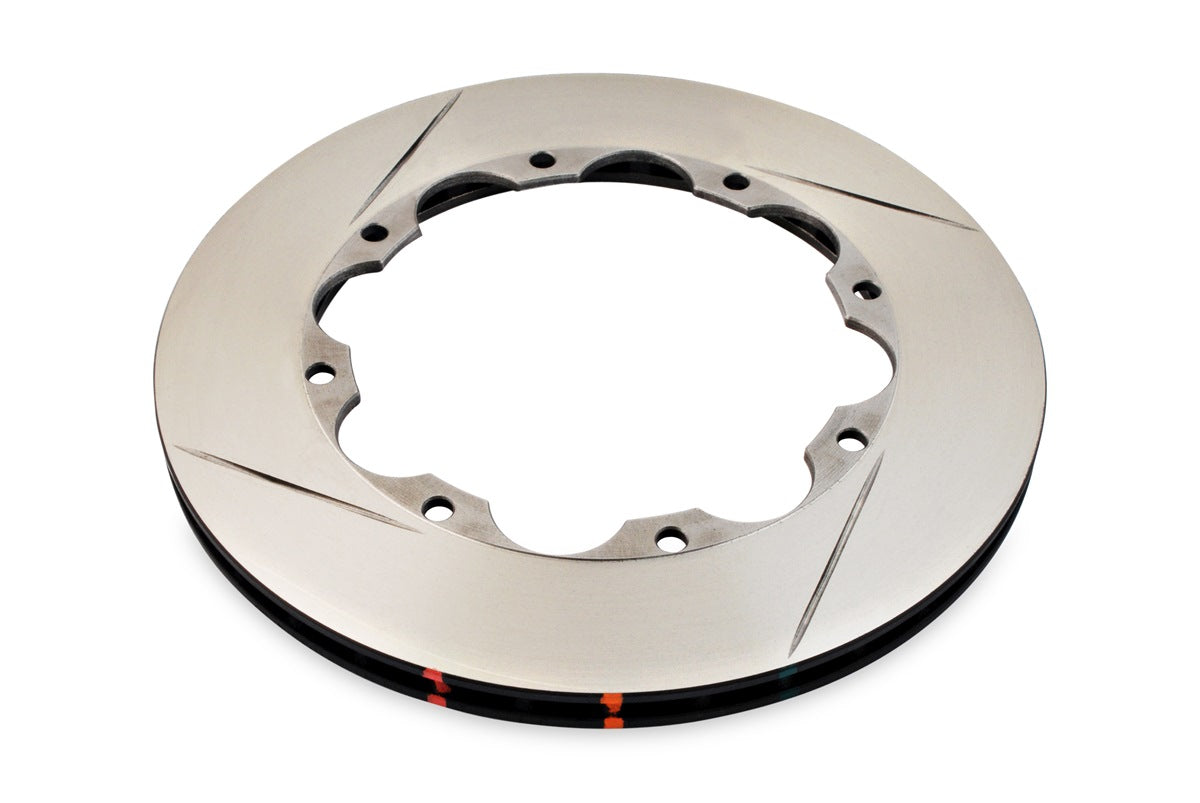

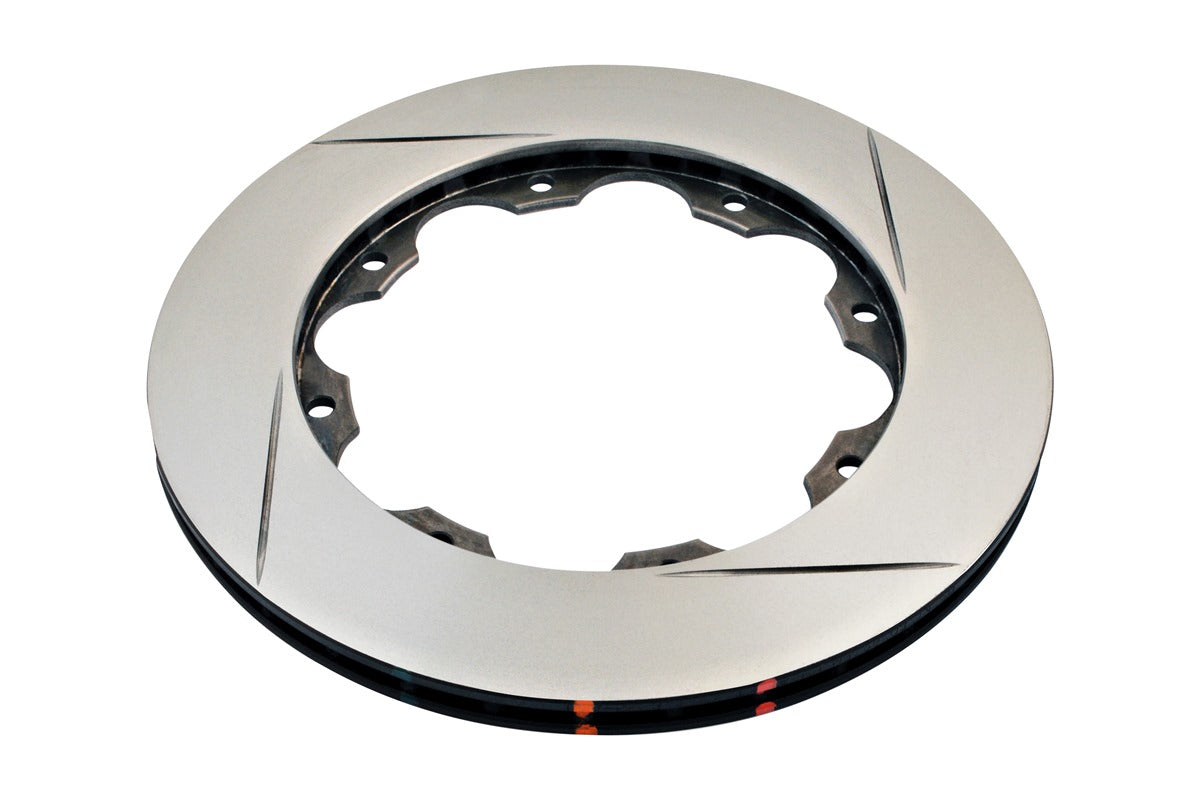

DBA5003.1SR

5000 series - Slotted - Rotor Only Right Hand

Diameter [mm]	277,8
Thickness [mm]	15,9
Disc Vent	Kangaroo Paw
Annulus [mm] (Maximum useable pad width)	45,4
Pitch Circle Diameter (P.C.D.)	176
Inside Diameter [mm]	187,5
Diameter & Number of Bolt Holes [mm]	8.45 (x8)
Air Gap [mm]	6,5
Offset [mm]	0,6
Flange Inside Diameter [mm]	156,03
Flange Thickness [mm]	4,5
Hole Type	Round Hole
Stage	Stage 5
Tech Bulletins	Bedding in Brakes
Tech Bulletins	How to clean a Disc Rotor before fitting
Tech Bulletins	Motorsport - Important Info
Replacement Nuts	Not Included
