DBA53916.1XD

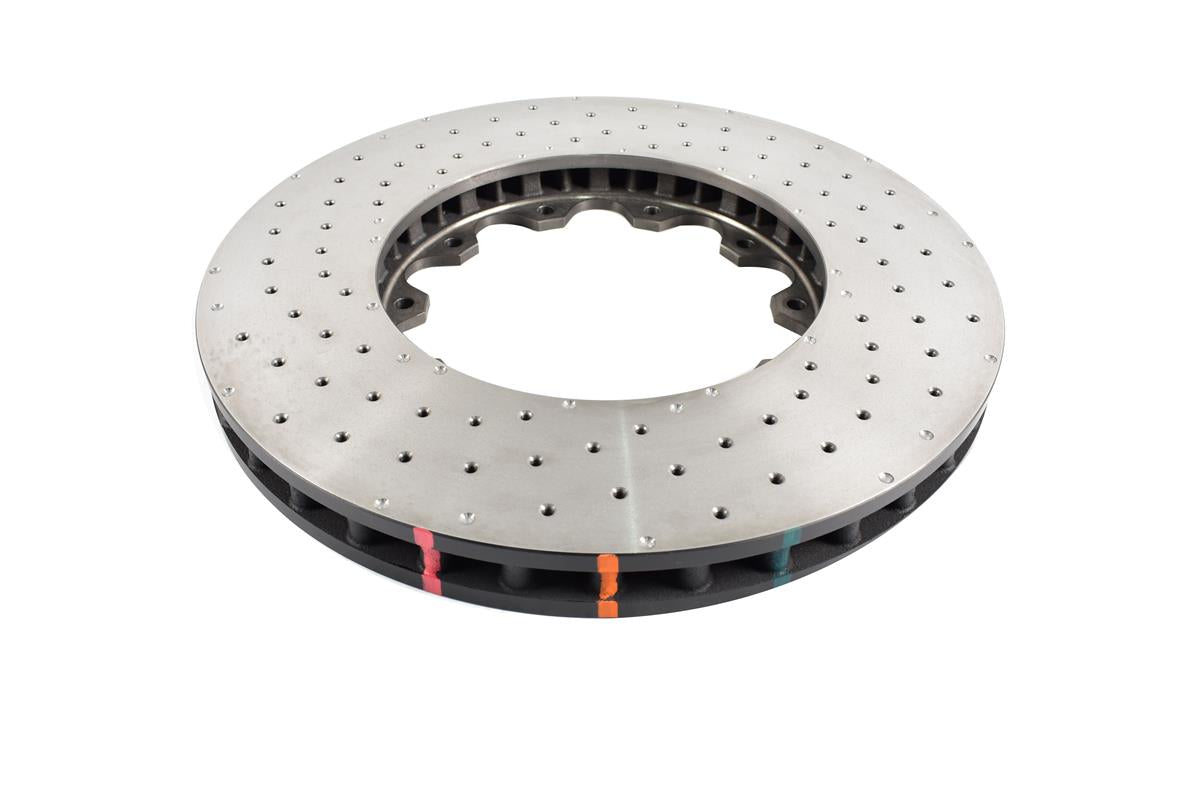

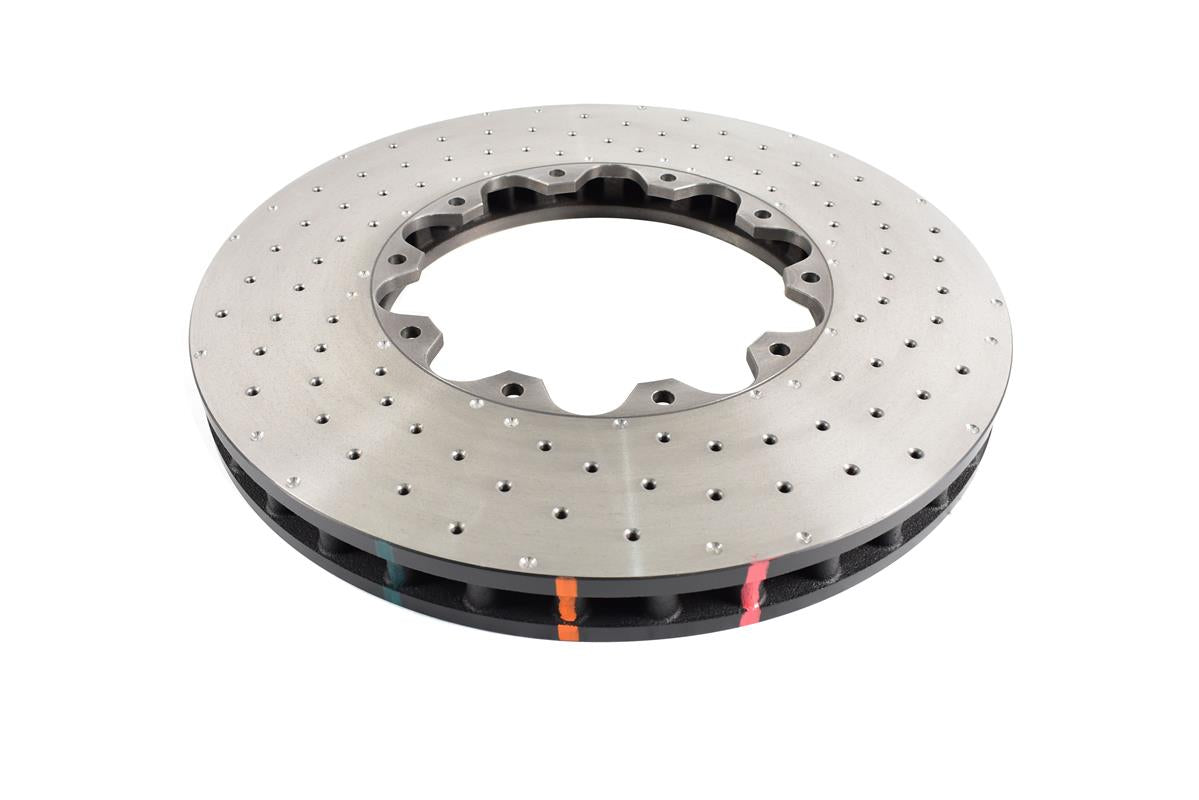

5000 series - Crossed Drilled, Slotted & Dimpled - Rotor Only

Diameter [mm]	390
Thickness [mm]	36
Disc Vent	Kangaroo Paw
Annulus [mm] (Maximum useable pad width)	83
Pitch Circle Diameter (P.C.D.)	203
Inside Diameter [mm]	221
Diameter & Number of Bolt Holes [mm]	9.06 (x10)
Air Gap [mm]	17
Offset [mm]	0
Flange Inside Diameter [mm]	179,1
Flange Thickness [mm]	7
Hole Type	Round Hole
Stage	Stage 5
Tech Bulletins	Bedding in Brakes
Tech Bulletins	How to clean a Disc Rotor before fitting
Tech Bulletins	Motorsport - Important Info
Replacement Nuts	Included

Compatibility
CHEVROLET	Camaro (6th Gen) ZL1	6.2 Supercharged (2016-2024) BCD	2016-2024	Brake Caliper: Brembo	Front	Disc Diameter [mm]: 390
