DBA

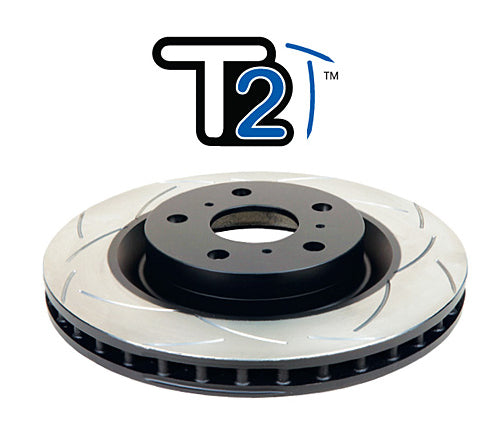

DBA983S
DBA983S
Prezzo di listino
€160,13 EUR
Prezzo di listino
Prezzo scontato
€160,13 EUR
Quantità
Impossibile caricare la disponibilità di ritiro
| Feature Description | Advantage | Benefit |
 "T3 Slot 48 precision CNC machined slots"
|
Tri-Symmetrical curve slots dampens the vibration harmonics or noise | A quieter, responsive and smoother brake pedal feel |
| Increased number of out-gassing exit points for brake pad friction gasses to escape through | Increases the consistency and effectiveness of every brake stop | |
| Universal slot design | Eliminates the need for left and right discs | |
 "KANGAROO_PAW") Kangaroo Paw – 144 diamond and tear drop pillar ventilation system
|
Increased surface area resulting in greater heat dissipation | Minimises brake fade and increases braking effectiveness |
| Increased surface area resulting in greater heat dissipation | Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs | |
 XG150 High Carbon Alloyed Iron
|
An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermal Stability Profiling
|
Special formulation designed to respond to DBA’s TSP process | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermographic Temperature Monitoring
|
Heat paint markings change colour at specific temperature thresholds | Offers the driver a clear indication of peak braking temperatures |
| When temperature thresholds are exceeded paint markings will permanently change colours | Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims | |
 Paint protection on non-friction areas
|
Reduces corrosion | Stops any unsightly rust formation |
| Enhances appearance | Adds value to the product |
| Diameter [mm] | 280 |
| Disc Vent | Solid |
| Number of Holes | 5 |
| Inner Diameter [mm] | 75 |
| Minimum Thickness [mm] | 8,4 |
| Thickness [mm] | 10 |
| Height [mm] | 60.1 |
| Stage | Stage 2 |
| Tech Bulletins | Bedding in Brakes |
| Tech Bulletins | How to clean a Disc Rotor before fitting |
| Tech Bulletins | Motorsport - Important Info |
| ECE R90 number | E11 90R-02C01704/72742 |
| Compatibility | |||||||
|---|---|---|---|---|---|---|---|
| BMW | 3 Series (E36) 316 | 1.6 (1991-2000) | 1991-2000 | Brake Caliper: ATE | Rear | Brake Pads: DB1245 | Disc Diameter [mm]: 280 |
| BMW | 3 Series (E36) 316 | 1.6 Coupe (1993-1999) | 1993-1999 | Brake Caliper: ATE | Rear | Brake Pads: DB1245 | Disc Diameter [mm]: 280 |
| BMW | 3 Series (E36) 318 | 1.7 TD (1995-2001) | 1995-2001 | Brake Caliper: ATE | Rear | Brake Pads: DB1245 | Disc Diameter [mm]: 280 |
| BMW | 3 Series (E36) 318 | 1.8 (1991-1998) | 1991-1998 | Brake Caliper: ATE | Rear | Brake Pads: DB1245 | Disc Diameter [mm]: 280 |
| BMW | 3 Series (E36) 318 | 1.8 Coupe (1992-1995) | 1992-1995 | Brake Caliper: ATE | Rear | Brake Pads: DB1245 | Disc Diameter [mm]: 280 |
| BMW | 3 Series (E36) 318 | 1.9 (1994-2001) | 1994-2001 | Brake Caliper: ATE | Rear | Brake Pads: DB1245 | Disc Diameter [mm]: 280 |
| BMW | 3 Series (E36) 318 | 1.9 Coupe (1995-1999) | 1995-1999 | Brake Caliper: ATE | Rear | Brake Pads: DB1245 | Disc Diameter [mm]: 280 |
| BMW | 3 Series (E36) 320 | 2.0 (1991-1998) | 1991-1998 | Brake Caliper: ATE | Rear | Brake Pads: DB1245 | Disc Diameter [mm]: 280 |
| BMW | 3 Series (E36) 320 | 2.0 Coupe (1992-1999) | 1992-1999 | Brake Caliper: ATE | Rear | Brake Pads: DB1245 | Disc Diameter [mm]: 280 |
| BMW | 3 Series (E36) 325 | 2.5 (1990-1999) | 1990-1999 | Brake Caliper: ATE | Rear | Brake Pads: DB1245 | Disc Diameter [mm]: 280 |
| BMW | 3 Series (E36) 325 | 2.5 TD (1993-1998) | 1993-1998 | Brake Caliper: ATE | Rear | Brake Pads: DB1245 | Disc Diameter [mm]: 280 |
| BMW | 3 Series (E46) 316 | 1.6 Coupe (2000-2006) | 2000-2006 | Brake Caliper: ATE | Rear | Brake Pads: DB1415 | Disc Diameter [mm]: 280 |
| BMW | 3 Series (E46) 316 | 1.8 (2001-2006) | 2001-2006 | Brake Caliper: ATE | Rear | Brake Pads: DB1415 | Disc Diameter [mm]: 280 |
| BMW | 3 Series (E46) 316 | 1.8 Compact (2001-2005) | 2001-2005 | Brake Caliper: ATE | Rear | Brake Pads: DB1415 | Disc Diameter [mm]: 280 |
| BMW | 3 Series (E46) 316 | 1.9 (1999-2001) | 1999-2001 | Brake Caliper: ATE | Rear | Brake Pads: DB1415 | Disc Diameter [mm]: 280 |
| BMW | 3 Series (E46) 318 | 1.9 (1998-1999) | 1998-1999 | Brake Caliper: ATE | Rear | Brake Pads: DB1415 | Disc Diameter [mm]: 280 |
| BMW | 3 Series (E46) 318 | 1.9 (1999-2001) | 1999-2001 | Brake Caliper: ATE | Rear | Brake Pads: DB1415 | Disc Diameter [mm]: 280 |
| BMW | 3 Series (E46) 318 | 1.9 Coupe (1999-2001) | 1999-2001 | Brake Caliper: ATE | Rear | Brake Pads: DB1415 | Disc Diameter [mm]: 280 |
| BMW | 3 Series (E46) 318 | 2.0 Coupe (2001-2007) | 2001-2007 | Brake Caliper: ATE | Rear | Brake Pads: DB1415 | Disc Diameter [mm]: 280 |
