EP2097

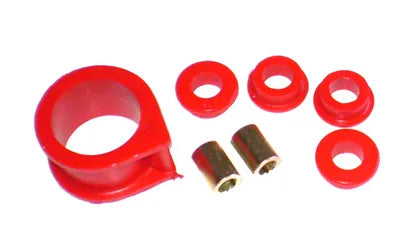

Pedders Urethane Bushes

Pedders Urethane bushes have a high capacity to bear tension, compression and friction and retain their hardness, even under the most adverse conditions. This makes them well suited to the demands of heavy load carrying, firm suspension control or where regular exposure to corrosive materials is expected.

Features & Benefits

• Hardened crush tubes for longer life and to eliminate slippage or creep.
• A double helix, used against the outer diameter of the crush tube. The double helix maintains axial location while allowing full rotation of the pivot. It also acts as a grease reservoir that further increases product life.
• Knurling. For extra protection against adverse wear in heavily laden bushings.
• Bullet Grooves. These provide the correct pre-load while at the same time accommodating a wide variance in sizes and maintaining free pivoting of the bushings

Bush Type	1097A
Outer Diameter [mm]	30
Inner Diameter [mm]	19
Length [mm]	14
Material	PU (Polyurethane)
C/Tube Size	19x12.2x27 mm
Flange Thickness [mm]	3.7

Compatibility
Lexus	SC300/400	JZZ31 & UZZ30,31,32	JZZ31 & UZZ30,31,32 | 1991-2001	STEERING	Steering Gear Couplings and Mounts	Urethane Steering Mount Rack Bush (1 PKT)
Toyota	Soarer	JZZ / UZZ30,31,32, JZZ / UZZ 30	JZZ / UZZ30,31,32, JZZ / UZZ 30 | 1991-1998	STEERING	Steering Gear Couplings and Mounts	Urethane Steering Mount Rack Bush (1 PKT)
Toyota	Soarer	JZZ / UZZ30,31,32, JZZ / UZZ 31	JZZ / UZZ30,31,32, JZZ / UZZ 31 | 1991-1998	STEERING	Steering Gear Couplings and Mounts	Urethane Steering Mount Rack Bush (1 PKT)
Toyota	Soarer	JZZ / UZZ30,31,32, UZZ 32	JZZ / UZZ30,31,32, UZZ 32 | 1991-1998	STEERING	Steering Gear Couplings and Mounts	Urethane Steering Mount Rack Bush (1 PKT)
Toyota	Supra	JZA80	JZA80 | 1993-2001	STEERING	Steering Gear Couplings and Mounts	Urethane Steering Mount Rack Bush (1 PKT)
