EP6296

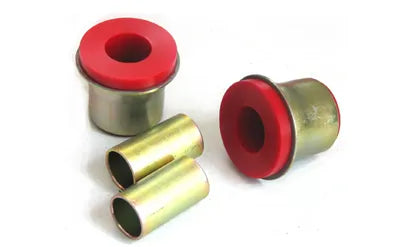

Pedders Urethane Bushes

Pedders Urethane bushes have a high capacity to bear tension, compression and friction and retain their hardness, even under the most adverse conditions. This makes them well suited to the demands of heavy load carrying, firm suspension control or where regular exposure to corrosive materials is expected.

Features & Benefits

• Hardened crush tubes for longer life and to eliminate slippage or creep.
• A double helix, used against the outer diameter of the crush tube. The double helix maintains axial location while allowing full rotation of the pivot. It also acts as a grease reservoir that further increases product life.
• Knurling. For extra protection against adverse wear in heavily laden bushings.
• Bullet Grooves. These provide the correct pre-load while at the same time accommodating a wide variance in sizes and maintaining free pivoting of the bushings

Bush Type	5296
Inner Diameter [mm]	22.2
C/Tube Size	22.2x19x40 mm
Material	PU (Polyurethane)
Length [mm]	40.5
Outer Diameter 1 [mm]	37.75
Outer Diameter 2 [mm]	36.5
Flange Thickness 1 [mm]	2.5
Flange Thickness 2 [mm]	5

Compatibility
Toyota	Crown	MS65, MS70, MS75, Sedan	MS65, MS70, MS75, Sedan | 1971-1974	BUSHES	Upper Inner Bush	Urethane Upper Control Arm Front Bush (2 PKT)
Toyota	Crown	MS85, MS95, Sedan	MS85, MS95, Sedan | 1974-1979	BUSHES	Upper Inner Bush	Urethane Upper Control Arm Front Bush (2 PKT)
Toyota	Crown	MS111 & MS112, Sedan & Wagon	MS111 & MS112, Sedan & Wagon | 1979-1983	BUSHES	Upper Inner Bush	Urethane Upper Control Arm Front Bush (2 PKT)
Toyota	Hilux 2WD	LN / RN30 / 40, LN30 & LN40	LN / RN30 / 40, LN30 & LN40 | 1978-1983	BUSHES	Upper Inner Bush	Urethane Upper Control Arm Front Bush (2 PKT)
Toyota	Hilux 2WD	LN / RN30 / 40, RN30, RN31, RN40 & RN41	LN / RN30 / 40, RN30, RN31, RN40 & RN41 | 1978-1983	BUSHES	Upper Inner Bush	Urethane Upper Control Arm Front Bush (2 PKT)
Toyota	Hilux 2WD	LN / YN55 / 56 / 57 / 58, LN55R & LN56R	LN / YN55 / 56 / 57 / 58, LN55R & LN56R | 1983-1988	BUSHES	Upper Inner Bush	Urethane Upper Control Arm Front Bush (2 PKT)
Toyota	Hilux 2WD	LN / YN55 / 56 / 57 / 58, YN56R, YN57R & YN58R	LN / YN55 / 56 / 57 / 58, YN56R, YN57R & YN58R | 1983-1988	BUSHES	Upper Inner Bush	Urethane Upper Control Arm Front Bush (2 PKT)
Toyota	Hilux 2WD	LN / RN / YN85 / 86 / 90R, RN90R	LN / RN / YN85 / 86 / 90R, RN90R | 1988-1997	BUSHES	Upper Inner Bush	Urethane Upper Control Arm Front Bush (2 PKT)
Toyota	Liteace	KM20	KM20 | 1979-1982	BUSHES	Upper Inner Bush	Urethane Upper Control Arm Front Bush (2 PKT)
Toyota	Liteace	YM20,21 CM20,25	YM20,21 CM20,25 | 1982-1985	BUSHES	Upper Inner Bush	Urethane Upper Control Arm Front Bush (2 PKT)
Toyota	Liteace	KM30, KM31, CM56, With Rear Coils	KM30, KM31, CM56, With Rear Coils | 1985-1992	BUSHES	Upper Inner Bush	Urethane Upper Control Arm Front Bush (2 PKT)
Toyota	Liteace	KM36, CM35, 36, YM35, With Rear Leaf Springs	KM36, CM35, 36, YM35, With Rear Leaf Springs | 1985-1992	BUSHES	Upper Inner Bush	Urethane Upper Control Arm Front Bush (2 PKT)
Toyota	Spacia	YR22, 8 Seat Wagon	YR22, 8 Seat Wagon | 1993-1998	BUSHES	Upper Inner Bush	Urethane Upper Control Arm Front Bush (2 PKT)
Toyota	Tarago	YR20, YR21, YR22, 2WD	YR20, YR21, YR22, 2WD | 1983-1990	BUSHES	Upper Inner Bush	Urethane Upper Control Arm Front Bush (2 PKT)
Toyota	Tarago	YR31, Xtra Trak Wagon	YR31, Xtra Trak Wagon | 1986-1990	BUSHES	Upper Inner Bush	Urethane Upper Control Arm Front Bush (2 PKT)
Toyota	Townace	YR22, 26, 39, JT72R	YR22, 26, 39, JT72R | 1992-1996	BUSHES	Upper Inner Bush	Urethane Upper Control Arm Front Bush (2 PKT)
