EP6430

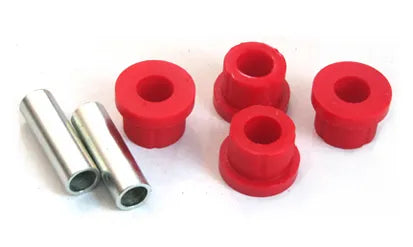

Pedders Urethane Bushes

Pedders Urethane bushes have a high capacity to bear tension, compression and friction and retain their hardness, even under the most adverse conditions. This makes them well suited to the demands of heavy load carrying, firm suspension control or where regular exposure to corrosive materials is expected.

Features & Benefits

• Hardened crush tubes for longer life and to eliminate slippage or creep.
• A double helix, used against the outer diameter of the crush tube. The double helix maintains axial location while allowing full rotation of the pivot. It also acts as a grease reservoir that further increases product life.
• Knurling. For extra protection against adverse wear in heavily laden bushings.
• Bullet Grooves. These provide the correct pre-load while at the same time accommodating a wide variance in sizes and maintaining free pivoting of the bushings

Bush Type	5430
Outer Diameter [mm]	33
Inner Diameter [mm]	18.8
C/Tube Size	19x14.3x60 mm
Material	PU (Polyurethane)
Length [mm]	28.5
Flange Thickness [mm]	8

Compatibility
Toyota	Avensis	ACM20/21R	ACM20/21R | 2001-2009	SUSPENSION PARTS	Lower Inner Bush	Urethane Lower Control Arm Front Bush (2 PKT)
Toyota	Corolla	90 Series, AE92 & AE93	90 Series, AE92 & AE93 | 1987-1995	SUSPENSION PARTS	Lower Inner Bush	Urethane Lower Control Arm Front Bush (2 PKT)
Toyota	Corolla	90 Series, AE94 Liftback, Seca	90 Series, AE94 Liftback, Seca | 1987-1995	SUSPENSION PARTS	Lower Inner Bush	Urethane Lower Control Arm Front Bush (2 PKT)
Toyota	Corolla	90 Series, AE95 4wd	90 Series, AE95 4wd | 1987-1995	SUSPENSION PARTS	Lower Inner Bush	Urethane Lower Control Arm Front Bush (2 PKT)
Toyota	Corolla	100 Series, AE102 Seca Liftback	100 Series, AE102 Seca Liftback | 1992-1999	SUSPENSION PARTS	Lower Inner Bush	Urethane Lower Control Arm Front Bush (2 PKT)
Toyota	Corolla	100 Series, AE102 Seca Sprinter	100 Series, AE102 Seca Sprinter | 1992-1999	SUSPENSION PARTS	Lower Inner Bush	Urethane Lower Control Arm Front Bush (2 PKT)
Toyota	Corolla	110 Series, AE110 & AE111 Sedan & Hatch	110 Series, AE110 & AE111 Sedan & Hatch | 1998-2001	SUSPENSION PARTS	Lower Inner Bush	Urethane Lower Control Arm Front Bush (2 PKT)
Toyota	Corolla	110 Series, AE112 Sedan & Liftback	110 Series, AE112 Sedan & Liftback | 1998-2001	SUSPENSION PARTS	Lower Inner Bush	Urethane Lower Control Arm Front Bush (2 PKT)
Toyota	Corolla	120 Series, ZZE122, ZZE123, ZZE130	120 Series, ZZE122, ZZE123, ZZE130 | 2001-2007	SUSPENSION PARTS	Lower Inner Bush	Urethane Lower Control Arm Front Bush (2 PKT)
Toyota	Prius	NHW20R	NHW20R | 2003-2009	SUSPENSION PARTS	Lower Inner Bush	Urethane Lower Control Arm Front Bush (2 PKT)
Toyota	Rav 4	ACA20R, 21R, 22R & 2, 3 & 5 Door Wagon	ACA20R, 21R, 22R & 2, 3 & 5 Door Wagon | 2000-2006	SUSPENSION PARTS	Lower Inner Bush	Urethane Lower Control Arm Front Bush (2 PKT)
