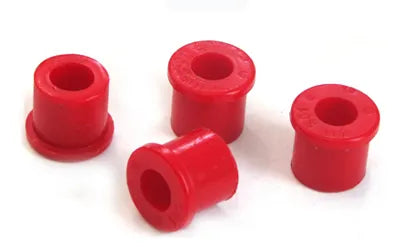

EP8091

Pedders Urethane Bushes

Pedders Urethane bushes have a high capacity to bear tension, compression and friction and retain their hardness, even under the most adverse conditions. This makes them well suited to the demands of heavy load carrying, firm suspension control or where regular exposure to corrosive materials is expected.

Features & Benefits

• Hardened crush tubes for longer life and to eliminate slippage or creep.
• A double helix, used against the outer diameter of the crush tube. The double helix maintains axial location while allowing full rotation of the pivot. It also acts as a grease reservoir that further increases product life.
• Knurling. For extra protection against adverse wear in heavily laden bushings.
• Bullet Grooves. These provide the correct pre-load while at the same time accommodating a wide variance in sizes and maintaining free pivoting of the bushings

Bush Type	MM501
Outer Diameter [mm]	22
Inner Diameter [mm]	12.7
Material	PU (Polyurethane)
Length [mm]	21.5
Flange Thickness [mm]	3.5

Compatibility
Leyland	Mini	Clubman	Clubman | 1959-Onward	SUSPENSION PARTS	Lower Inner Bush	Urethane Lower Control Arm Bush (4 PKT)
Leyland	Mini	S/Wagon & Van	S/Wagon & Van | 1960-1979	SUSPENSION PARTS	Lower Inner Bush	Urethane Lower Control Arm Bush (4 PKT)
Leyland	Mini	Moke	Moke | 1966-1979	SUSPENSION PARTS	Lower Inner Bush	Urethane Lower Control Arm Bush (4 PKT)
Leyland	Morris	Minor	Minor | 1954-Onward	SUSPENSION PARTS	Lower Inner Bush	Urethane Lower Control Arm Bush (4 PKT)
Leyland	Morris	1100 & 1300	1100 & 1300 | 1964-1974	SUSPENSION PARTS	Lower Inner Bush	Urethane Lower Control Arm Bush (4 PKT)
Mini	Clubman		1959-Onward	SUSPENSION PARTS	Lower Inner Bush	Urethane Lower Control Arm Bush (4 PKT)
Mini	S Wagon & Van		1960-1979	SUSPENSION PARTS	Lower Inner Bush	Urethane Lower Control Arm Bush (4 PKT)
Mini	Moke		1966-1979	SUSPENSION PARTS	Lower Inner Bush	Urethane Lower Control Arm Bush (4 PKT)
