EP8154

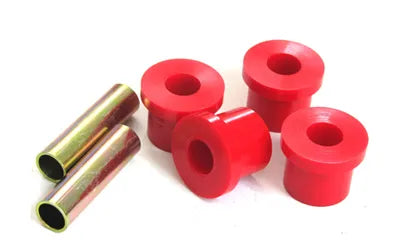

Pedders Urethane Bushes

Pedders Urethane bushes have a high capacity to bear tension, compression and friction and retain their hardness, even under the most adverse conditions. This makes them well suited to the demands of heavy load carrying, firm suspension control or where regular exposure to corrosive materials is expected.

Features & Benefits

• Hardened crush tubes for longer life and to eliminate slippage or creep.
• A double helix, used against the outer diameter of the crush tube. The double helix maintains axial location while allowing full rotation of the pivot. It also acts as a grease reservoir that further increases product life.
• Knurling. For extra protection against adverse wear in heavily laden bushings.
• Bullet Grooves. These provide the correct pre-load while at the same time accommodating a wide variance in sizes and maintaining free pivoting of the bushings

Bush Type	DAT34
Outer Diameter [mm]	41.3
Inner Diameter [mm]	22.2
C/Tube Size	22.2x18.2x81 mm
Material	PU (Polyurethane)
Length [mm]	40
Flange Thickness [mm]	9

Compatibility
Nissan	Navara	D21 & D22, 2WD	D21 & D22, 2WD | 1985-2015	SUSPENSION PARTS	Lower Inner Bush	Urethane Lower Control Arm Bush (2 PKT)	Lower control arm inner bush kit. Rear position. Urethane. Includes bushes for BOTH sides
Nissan	Navara	D21 & D22, 4WD	D21 & D22, 4WD | 1985-2015	SUSPENSION PARTS	Lower Inner Bush	Urethane Lower Control Arm Bush (2 PKT)	Lower control arm inner bush kit. Rear position. Urethane. Includes bushes for BOTH sides
Nissan	Pathfinder	WD21	WD21 | 1986-1995	SUSPENSION PARTS	Lower Inner Bush	Urethane Lower Control Arm Bush (2 PKT)	Front lower control arm inner bush. Urethane. Kit of 2 bushes.
Nissan	Terrano ll	R20	R20 | 1997-2000	SUSPENSION PARTS	Lower Inner Bush	Urethane Lower Control Arm Bush (2 PKT)	Includes bushes for BOTH sides
Nissan	Urvan	E24	E24 | 1987-1993	SUSPENSION PARTS	Lower Inner Bush	Urethane Lower Control Arm Bush (2 PKT)
