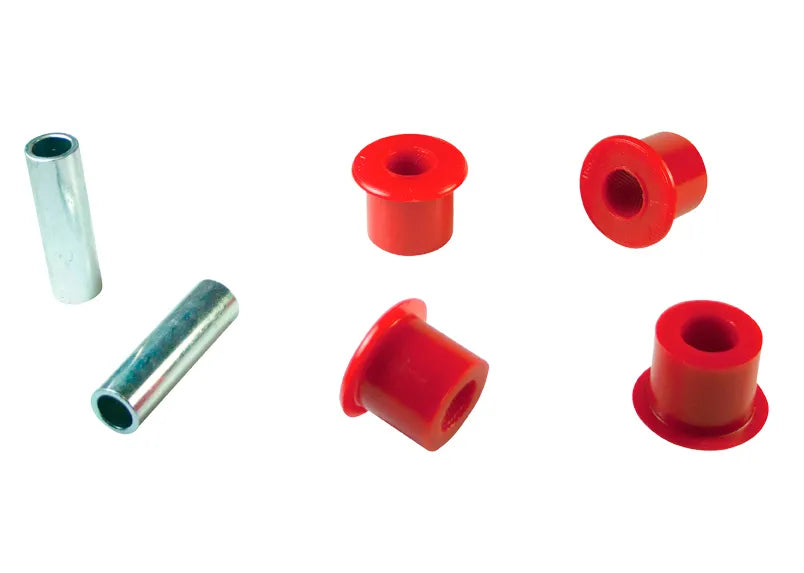

EP8249

Pedders Urethane Bushes

Pedders Urethane bushes have a high capacity to bear tension, compression and friction and retain their hardness, even under the most adverse conditions. This makes them well suited to the demands of heavy load carrying, firm suspension control or where regular exposure to corrosive materials is expected.

Features & Benefits

• Hardened crush tubes for longer life and to eliminate slippage or creep.
• A double helix, used against the outer diameter of the crush tube. The double helix maintains axial location while allowing full rotation of the pivot. It also acts as a grease reservoir that further increases product life.
• Knurling. For extra protection against adverse wear in heavily laden bushings.
• Bullet Grooves. These provide the correct pre-load while at the same time accommodating a wide variance in sizes and maintaining free pivoting of the bushings

Bush Type	7249
Outer Diameter [mm]	40
Inner Diameter [mm]	22.2
Length [mm]	75.5
C/Tube Size	22.2x16x75 mm
Material	PU (Polyurethane)
Flange Thickness [mm]	3

Compatibility
Toyota	Coaster Bus	BB Series, BB20	BB Series, BB20 | 1982-1993	BUSHES	Rear Fixed Eye Bushes / Kits	Urethane Leaf Spring Eye/ Shackle Bush (2PKT)
Toyota	Coaster Bus	BB Series, BB20	BB Series, BB20 | 1982-1993	BUSHES	Rear Shackle Lower Bushes	Urethane Leaf Spring Eye/ Shackle Bush (2PKT)
Toyota	Coaster Bus	BB Series, BB21	BB Series, BB21 | 1982-1993	BUSHES	Rear Fixed Eye Bushes / Kits	Urethane Leaf Spring Eye/ Shackle Bush (2PKT)
Toyota	Coaster Bus	BB Series, BB21	BB Series, BB21 | 1982-1993	BUSHES	Rear Shackle Lower Bushes	Urethane Leaf Spring Eye/ Shackle Bush (2PKT)
Toyota	Coaster Bus	HB Series, HB30	HB Series, HB30 | 1982-1993	BUSHES	Rear Fixed Eye Bushes / Kits	Urethane Leaf Spring Eye/ Shackle Bush (2PKT)
Toyota	Coaster Bus	HB Series, HB30	HB Series, HB30 | 1982-1993	BUSHES	Rear Shackle Lower Bushes	Urethane Leaf Spring Eye/ Shackle Bush (2PKT)
Toyota	Coaster Bus	HB Series, HB31	HB Series, HB31 | 1982-1993	BUSHES	Rear Fixed Eye Bushes / Kits	Urethane Leaf Spring Eye/ Shackle Bush (2PKT)
Toyota	Coaster Bus	HB Series, HB31	HB Series, HB31 | 1982-1993	BUSHES	Rear Shackle Lower Bushes	Urethane Leaf Spring Eye/ Shackle Bush (2PKT)
Toyota	Coaster Bus	HB Series, HB32	HB Series, HB32 | 1982-1993	BUSHES	Rear Fixed Eye Bushes / Kits	Urethane Leaf Spring Eye/ Shackle Bush (2PKT)
Toyota	Coaster Bus	HB Series, HB32	HB Series, HB32 | 1982-1993	BUSHES	Rear Shackle Lower Bushes	Urethane Leaf Spring Eye/ Shackle Bush (2PKT)
Toyota	Coaster Bus	HB Series, HBZ30R	HB Series, HBZ30R | 1982-1993	BUSHES	Rear Fixed Eye Bushes / Kits	Urethane Leaf Spring Eye/ Shackle Bush (2PKT)
Toyota	Coaster Bus	HB Series, HBZ30R	HB Series, HBZ30R | 1982-1993	BUSHES	Rear Shackle Lower Bushes	Urethane Leaf Spring Eye/ Shackle Bush (2PKT)
Toyota	Coaster Bus	RB Series, RB20	RB Series, RB20 | 1982-1993	BUSHES	Rear Fixed Eye Bushes / Kits	Urethane Leaf Spring Eye/ Shackle Bush (2PKT)
Toyota	Coaster Bus	RB Series, RB20	RB Series, RB20 | 1982-1993	BUSHES	Rear Shackle Lower Bushes	Urethane Leaf Spring Eye/ Shackle Bush (2PKT)
Toyota	Coaster Bus	RB Series, RB21R	RB Series, RB21R | 1982-1993	BUSHES	Rear Fixed Eye Bushes / Kits	Urethane Leaf Spring Eye/ Shackle Bush (2PKT)
Toyota	Coaster Bus	RB Series, RB21R	RB Series, RB21R | 1982-1993	BUSHES	Rear Shackle Lower Bushes	Urethane Leaf Spring Eye/ Shackle Bush (2PKT)
Toyota	Dyna	20, 30, 40, 50 Series	20, 30, 40, 50 Series | 1977-1984	BUSHES	Front Fixed Eye Bushes / Kits	Urethane Leaf Spring Eye/ Shackle Bush (2PKT)
Toyota	Dyna	20, 30, 40, 50 Series	20, 30, 40, 50 Series | 1977-1984	BUSHES	Front Shackle Lower Bushes	Urethane Leaf Spring Eye/ Shackle Bush (2PKT)
Toyota	Dyna	20, 30, 40, 50 Series	20, 30, 40, 50 Series | 1977-1984	BUSHES	Rear Fixed Eye Bushes / Kits	Urethane Leaf Spring Eye/ Shackle Bush (2PKT)
Toyota	Dyna	20, 30, 40, 50 Series	20, 30, 40, 50 Series | 1977-1984	BUSHES	Rear Shackle Lower Bushes	Urethane Leaf Spring Eye/ Shackle Bush (2PKT)
Toyota	Dyna	Dyna 150 & 200, BU61 & LY60	Dyna 150 & 200, BU61 & LY60 | 1985-1995	BUSHES	F of F Shackle Bushes / Kit	Urethane Leaf Spring Eye/ Shackle Bush (2PKT)
Toyota	Dyna	Dyna 150 & 200, BU61 & LY60	Dyna 150 & 200, BU61 & LY60 | 1985-1995	BUSHES	R of F Shackle Bushes / Kit	Urethane Leaf Spring Eye/ Shackle Bush (2PKT)
Toyota	Dyna	Dyna 150 & 200, BU61 & LY60	Dyna 150 & 200, BU61 & LY60 | 1985-1995	BUSHES	Rear Fixed Eye Bushes / Kits	Urethane Leaf Spring Eye/ Shackle Bush (2PKT)
Toyota	Dyna	Dyna 150 & 200, BU61 & LY60	Dyna 150 & 200, BU61 & LY60 | 1985-1995	BUSHES	Rear Shackle Lower Bushes	Urethane Leaf Spring Eye/ Shackle Bush (2PKT)
Toyota	Dyna	Dyna 300 & 400, BU80 & BU90	Dyna 300 & 400, BU80 & BU90 | 1985-1995	BUSHES	Front Shackle Lower Bushes	Urethane Leaf Spring Eye/ Shackle Bush (2PKT)
Toyota	Dyna	Dyna 300 & 400, BU80 & BU90	Dyna 300 & 400, BU80 & BU90 | 1985-1995	BUSHES	Front Fixed Eye Bushes / Kits	Urethane Leaf Spring Eye/ Shackle Bush (2PKT)
Toyota	Dyna	Dyna 300 & 400, BU80 & BU90	Dyna 300 & 400, BU80 & BU90 | 1985-1995	BUSHES	Rear Fixed Eye Bushes / Kits	Urethane Leaf Spring Eye/ Shackle Bush (2PKT)
Toyota	Dyna	Dyna 300 & 400, BU80 & BU90	Dyna 300 & 400, BU80 & BU90 | 1985-1995	BUSHES	Rear Shackle Lower Bushes	Urethane Leaf Spring Eye/ Shackle Bush (2PKT)
Toyota	Toyoace	RY20-31 & LY20-31	RY20-31 & LY20-31 | 1979-1985	BUSHES	Front Shackle Lower Bushes	Urethane Leaf Spring Eye/ Shackle Bush (2PKT)
Toyota	Toyoace	RY20-31 & LY20-31	RY20-31 & LY20-31 | 1979-1985	BUSHES	Front Fixed Eye Bushes / Kits	Urethane Leaf Spring Eye/ Shackle Bush (2PKT)
Toyota	Toyoace	RY20-31 & LY20-31	RY20-31 & LY20-31 | 1979-1985	BUSHES	Rear Fixed Eye Bushes / Kits	Urethane Leaf Spring Eye/ Shackle Bush (2PKT)
Toyota	Toyoace	RY20-31 & LY20-31	RY20-31 & LY20-31 | 1979-1985	BUSHES	Rear Shackle Lower Bushes	Urethane Leaf Spring Eye/ Shackle Bush (2PKT)
