EP881

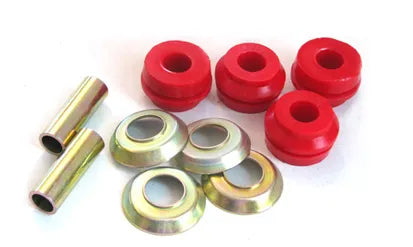

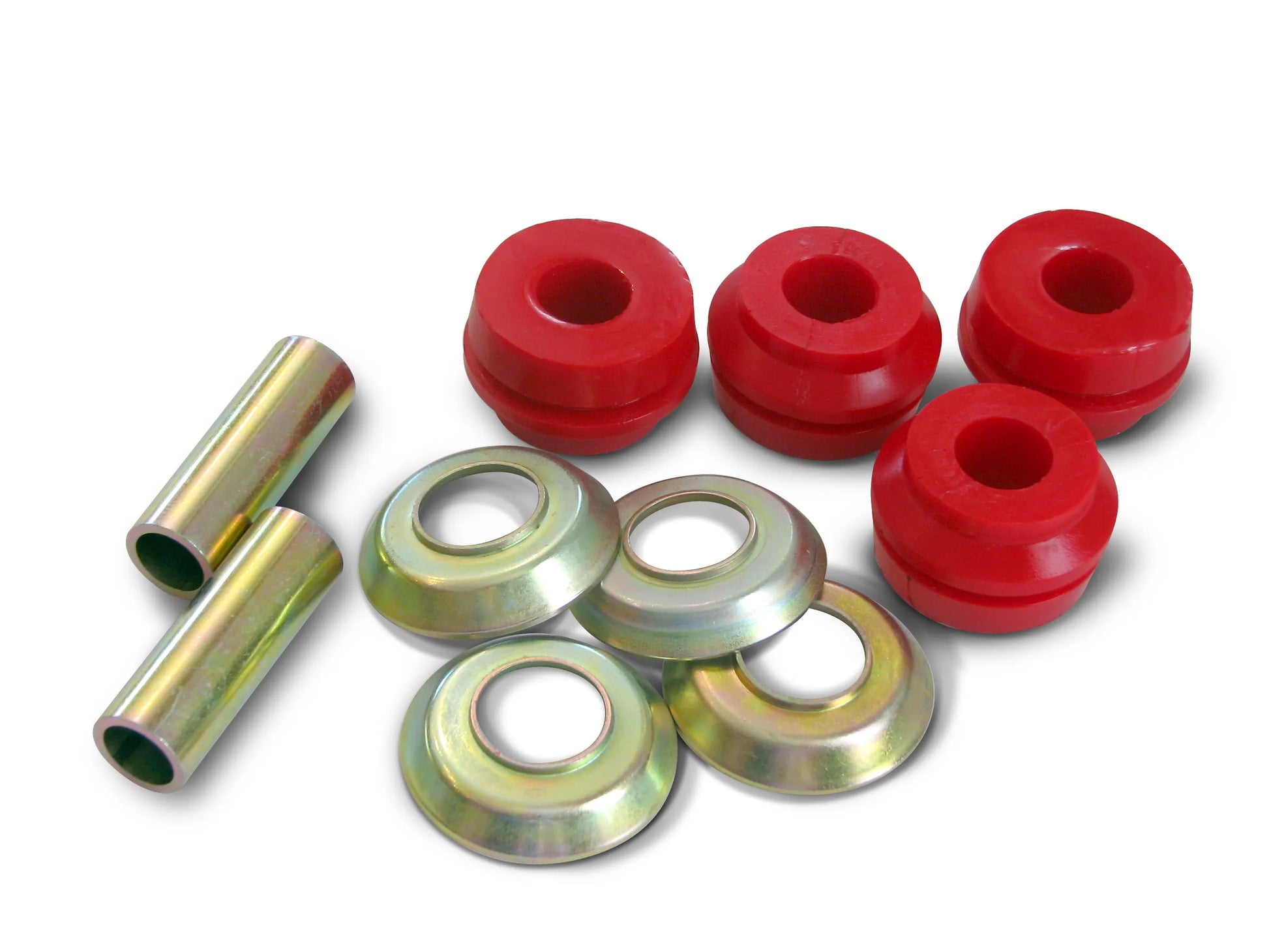

Pedders Urethane Bushes

Pedders Urethane bushes have a high capacity to bear tension, compression and friction and retain their hardness, even under the most adverse conditions. This makes them well suited to the demands of heavy load carrying, firm suspension control or where regular exposure to corrosive materials is expected.

Features & Benefits

• Hardened crush tubes for longer life and to eliminate slippage or creep.
• A double helix, used against the outer diameter of the crush tube. The double helix maintains axial location while allowing full rotation of the pivot. It also acts as a grease reservoir that further increases product life.
• Knurling. For extra protection against adverse wear in heavily laden bushings.
• Bullet Grooves. These provide the correct pre-load while at the same time accommodating a wide variance in sizes and maintaining free pivoting of the bushings

Bush Type	HJO102
Outer Diameter [mm]	53
Inner Diameter [mm]	22.2
Length [mm]	32
Material	PU (Polyurethane)

Compatibility
Kia	Carnival	KNAUP (KV11)	KNAUP (KV11) | 1999-2006	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)
Nissan	720 2WD	720 2WD	720 2WD | 1979-1985	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)
Nissan	720 4WD	720 4WD	720 4WD | 1980-1983	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)
Nissan	720 4WD	720 4WD	720 4WD | 1980-1983	SUSPENSION PARTS	Lower Inner Bush	Urethane Radius Rod Bush (4 PKT)
Nissan	720 4WD	720 4WD	720 4WD | 1983-1985	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)
Nissan	720 4WD	720 4WD	720 4WD | 1983-1985	SUSPENSION PARTS	Lower Inner Bush	Urethane Radius Rod Bush (4 PKT)
Nissan	Cabstar	F22 & H40	F22 & H40 | 1982-1987	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)
Nissan	Cabstar	F23	F23 | 1992-Onward	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)
Nissan	Laurel	C31, 1.8, 2.0, 2.4 & 2.8Ltr	C31, 1.8, 2.0, 2.4 & 2.8Ltr | 1980-1984	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)
Nissan	Navara	D21 & D22, 2WD	D21 & D22, 2WD | 1985-2015	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)
Nissan	Navara	D21 & D22, 4WD	D21 & D22, 4WD | 1985-2015	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)
Nissan	Pathfinder	WD21	WD21 | 1986-1995	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)
Nissan	Terrano	D21	D21 | 1986-1995	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)
Nissan	Terrano ll	R20	R20 | 1997-2000	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)
Nissan	Urvan	E20	E20 | 1974-1978	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)
Nissan	Urvan	E20 & E23	E20 & E23 | 1978-1980	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)
Nissan	Urvan	E23	E23 | 1980-1986	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)
Nissan	Urvan	E24	E24 | 1987-1993	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)
Toyota	Celica	RA21, TA20 & TA22	RA21, TA20 & TA22 | 1971-1975	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)
Toyota	HiAce	YH 50-70 & LH 50-70	YH 50-70 & LH 50-70 | 1982-1984	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)
Toyota	HiAce	LH102-125&RZH102-125	LH102-125&RZH102-125 | 1989-2004	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)
